DSSL heavy-duty support

DSSL heavy-duty support

Trench Part No. DSSL2 105
|
OBO Item No. 7410583
|
EAN 4012196540921
Show all variants
Trench Part No.
OBO Item No.
Width
Screed height, max.
Screed height, min.

Smallest selling unit: 1 PU

PU

Description

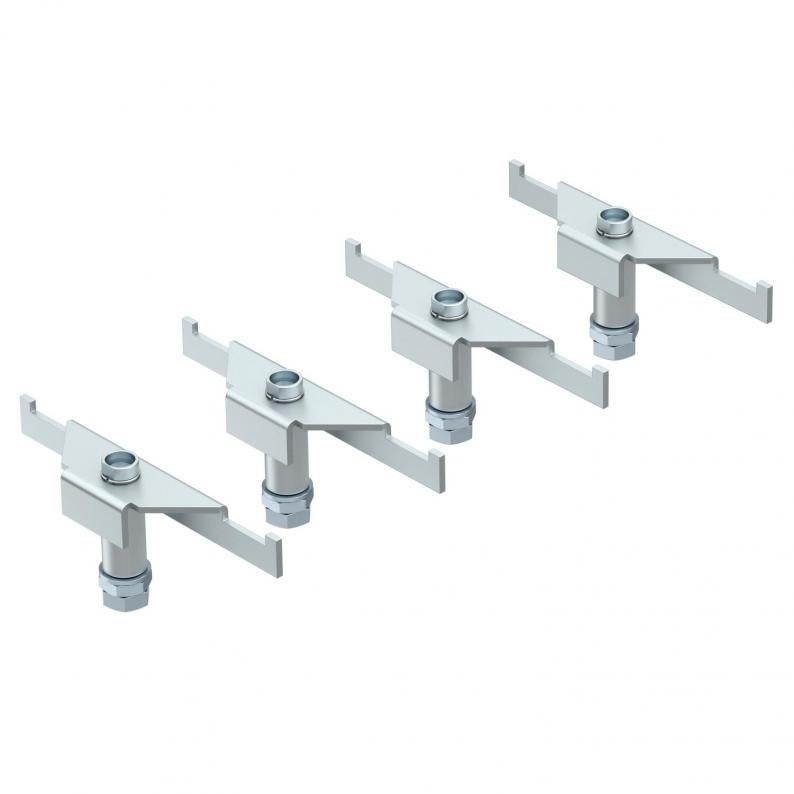

The heavy-duty supports reinforce the corner areas of the type UZD-3 underfloor box for increased load requirements.


Technical data

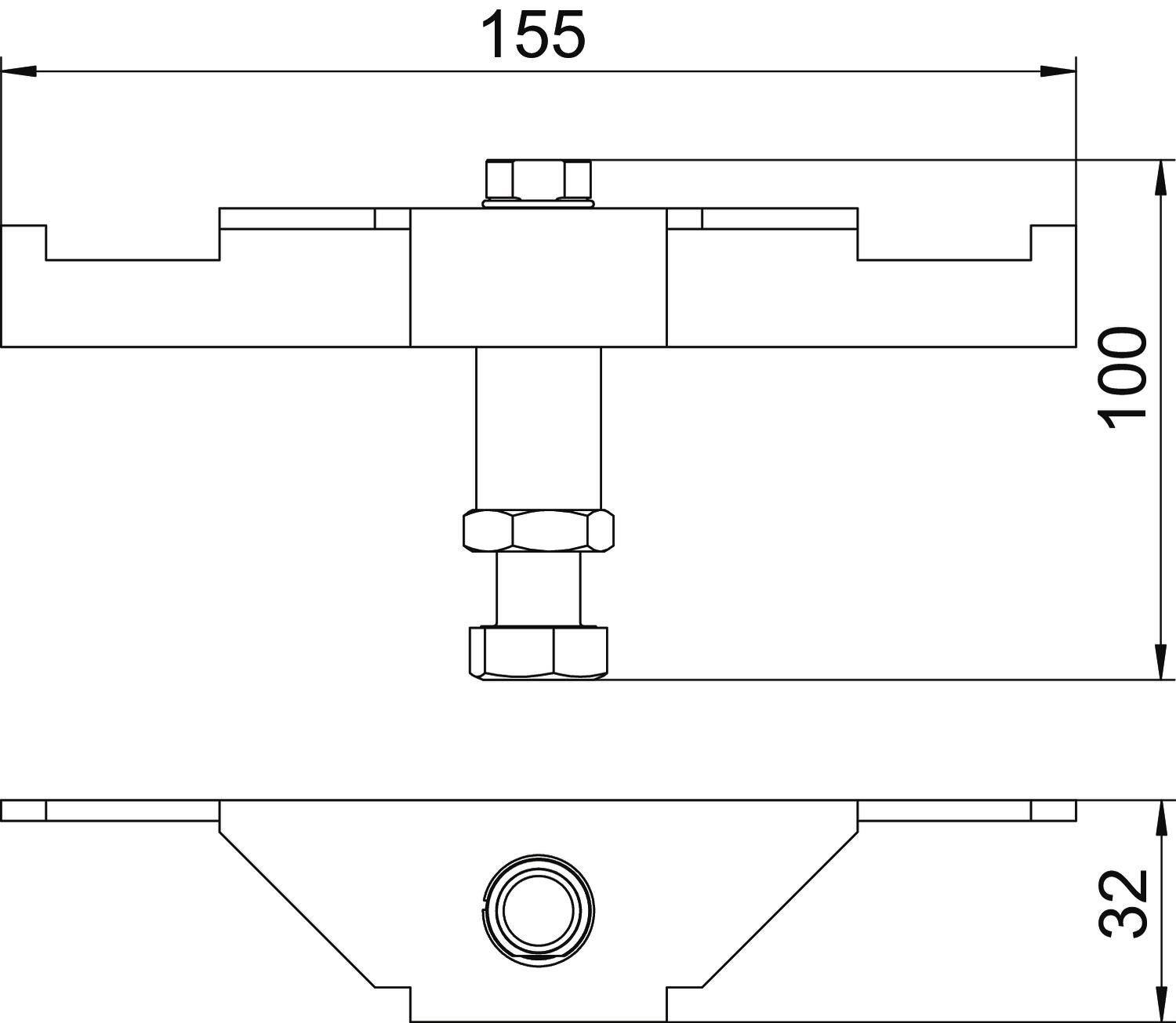

Dimensions

Length155 mm
Width32 mm
Height100 mm

Technical data

Screed height, max.140 mm
Screed height, min.105 mm
Heavy-duty versionyes
Dimension105/140
SurfaceStrip galvanized
MaterialSteel

Environmental Data

3,2851 kg CO2e / 4 PieceCO2 Footprint (GWP) Cradle-to-Gate
CO2 Footprint (GWP) Cradle-to-Gate3,2851 kg CO2e / 4 Piece

Downloads

0 selected

Data sheet (1)
Declarations (3)
Product images (2)
3D data downloads (1)
Tender specifications (1)

Variants

Screed height, max.
Screed height, min.
DSSL2 75
OBO Item No.
7410581
Width
32
Screed height, max.
110
Screed height, min.
75
DSSL2 105
OBO Item No.
7410583
Width
32
Screed height, max.
140
Screed height, min.
105
DSSL2 135
OBO Item No.
7410585
Width
32
Screed height, max.
170
Screed height, min.
135
DSSL2 165
OBO Item No.
7410587
Width
32
Screed height, max.
200
Screed height, min.
165
DSSL2 195
OBO Item No.
7410589
Width
32
Screed height, max.
230
Screed height, min.
195
