Height extension for UDHOME-ONE/UDHOME2 floor socket
Trench Part No. HE 60UH2
|OBO Item No. 7368418
|EAN 4012196692521
Trench Part No.
HE 60UH2
OBO Item No.
7368418
Smallest selling unit: 1 piece
1piece
piece
Description

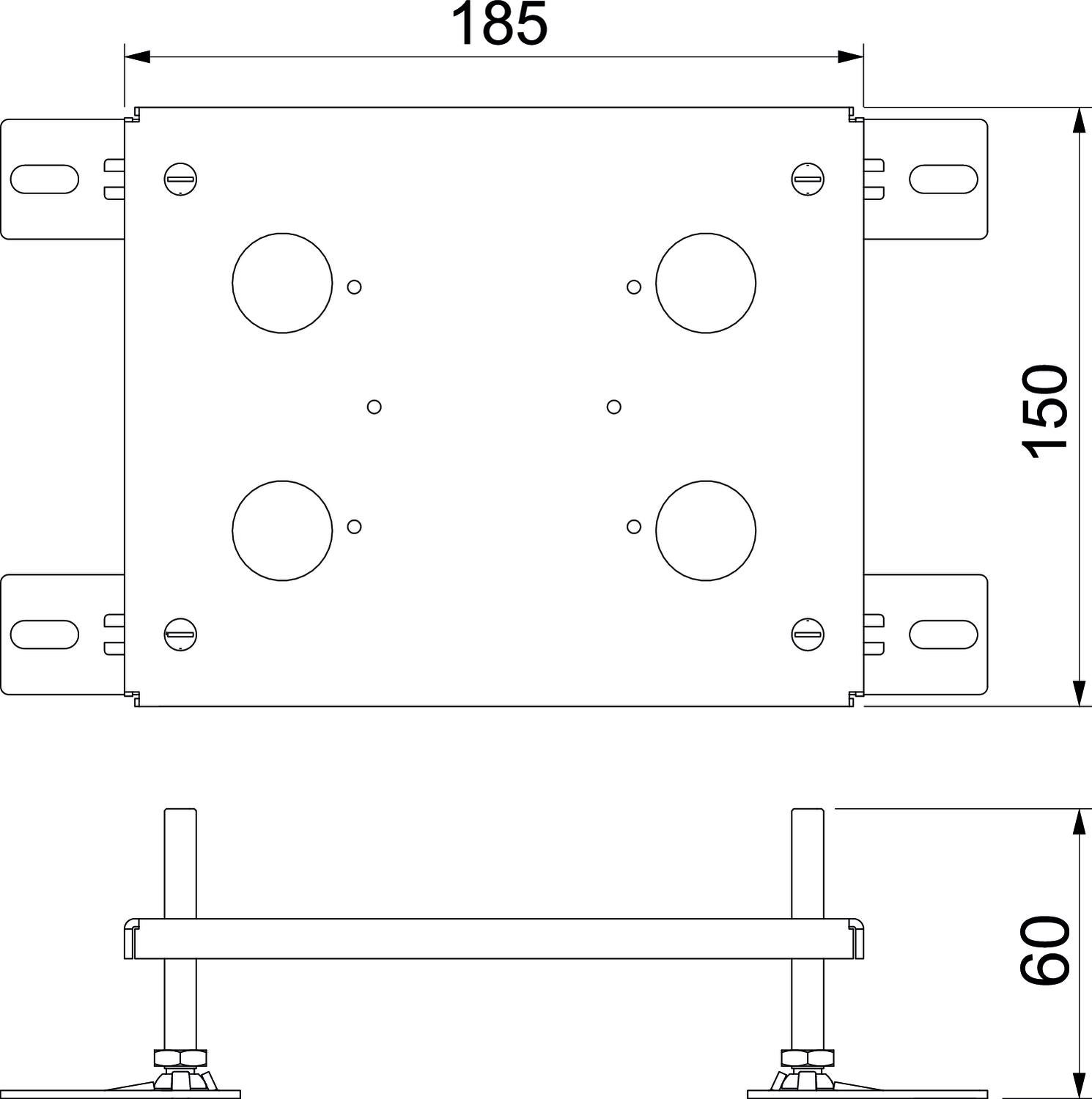

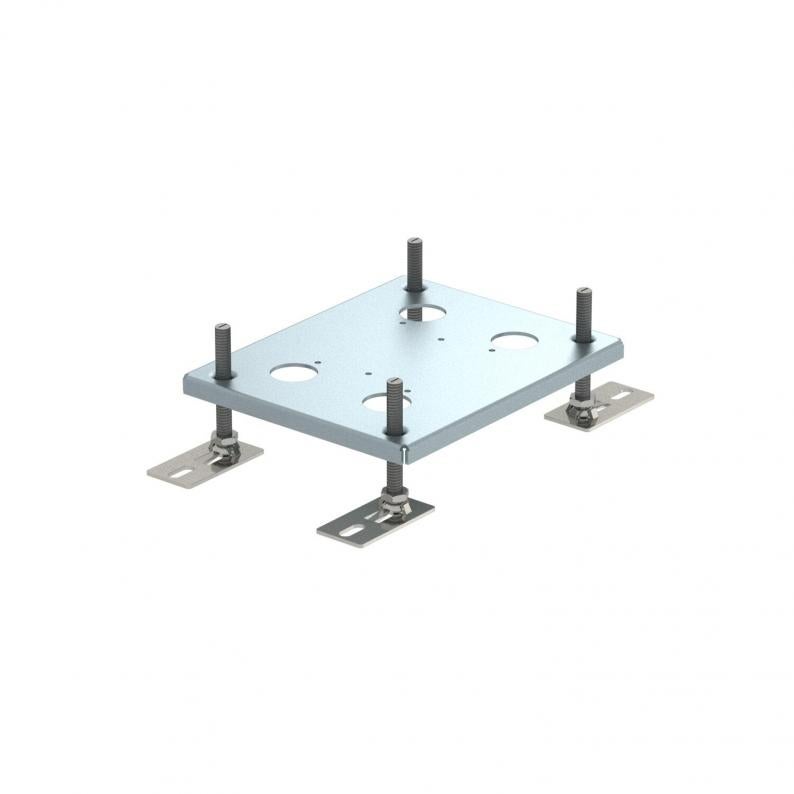

Height-adjustable extension for UDHOME-ONE/UDHOME2 floor socket. Load capacity up to 8 kN. Additional height-adjustment range: 10–60 mm
Technical data
Technical data
| Suitable for wet care | no |
|---|---|
| Heavy-duty version | no |
| Nominal size for device installation units | 2 |
| Approvals | VDE |
| Standard | EN 50085-2-2 |
| Material | Steel |
| Accessories | yes |
| Spare part | no |
Environmental Data
1,9328 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 1,9328 kg CO2e / 1 Piece |
|---|
