0° socket, British Standard, single

Trench Part No. STD-BS0 RW1
|
OBO Item No. 6120722
|
EAN 4012196049851
Trench Part No.
STD-BS0 RW1
OBO Item No.
6120722
Number of units
1
Version for
Single 0°
Colour
Pure white; RAL 9010

Smallest selling unit: 1 piece

piece

Description

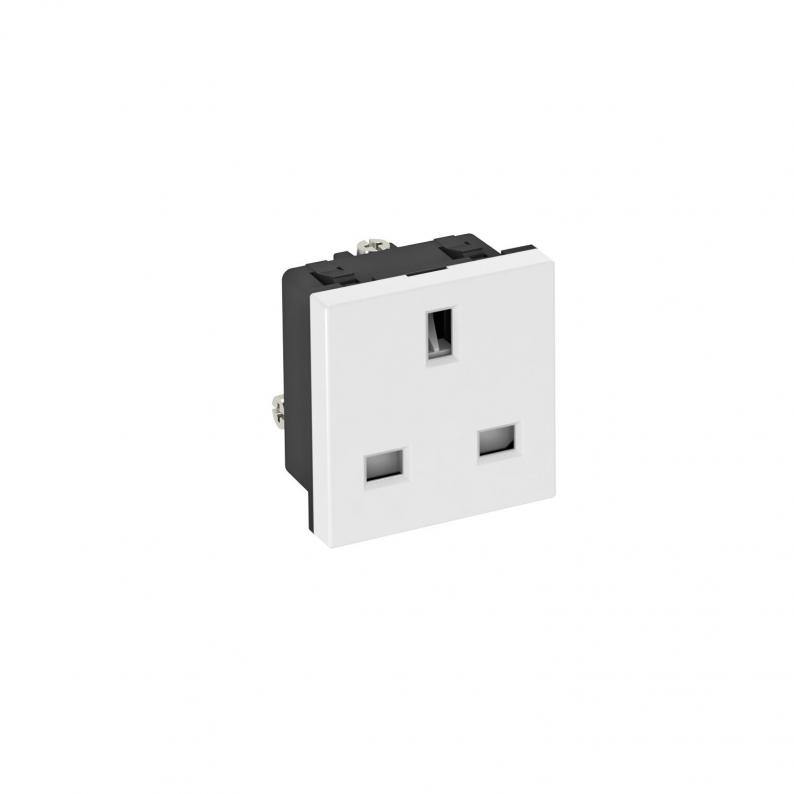

Socket, single 0°, British Standard, conforms to BS 1363, with increased touch protection, with screw terminals, 2-pin, 13 A, 250 V~.

Technical data

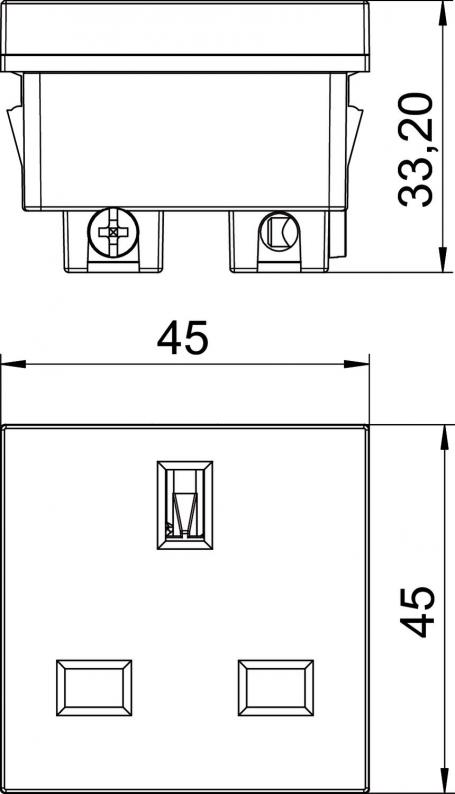

Dimensions

Width45 mm
Height45 mm

Technical data

Number of poles2
Hinged coverno
increased touch protectionyes
Warning lightno
Halogen-freeyes
Labelling panelno
Number of units1
Protection ratingOther
Nominal current13 A
Nominal voltage250 V
Closableno
Ejection mechanismno
Surge protectionno
Error current protectionno
With fine-wire fuseno
With on/off switchno
Rotated central insertno
Depth332 mm
CoverCentral plate
Printed label/codingWithout printing
Special power supplyWithout special power supply
Surface versionMatt
Transparentno
Socket angle0°
Number of switchable sockets0
With functional lightingno
With orientation lightingno
For more difficult conditions (according to VDE)no
Version forSingle 0°
Number of modules (for modular construction)0
Insulated installationno
Mounting typeDevice installation duct
Fastening typeLock
Connection typeScrew terminal
ROHS-conformantyes
Operating temperature, min.-5 °C
Operating temperature, max.40 °C
Codingno
Dimension250V, 13A
MaterialPolycarbonate
ColourPure white; RAL 9010

Environmental Data

0,018 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
CO2 Footprint (GWP) Cradle-to-Gate0,018 kg CO2e / 1 Piece
