90° mesh cable tray bend G
Trench Part No. GRB 90 110 G | OBO Item No. 6002370 | EAN 4012195456230
Trench Part No.
OBO Item No.
Width
Wire diameter
Maintain electrical functions
no
Smallest selling unit: 1 piece
1piece
Description

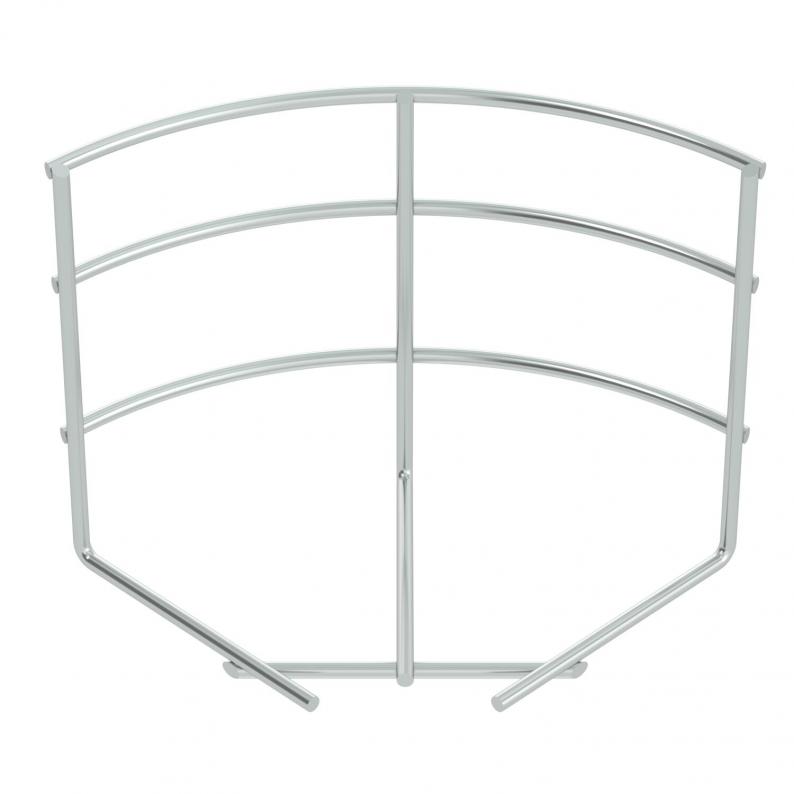

90° bend, horizontal, for all mesh cable trays of 105 mm side height.
Technical data

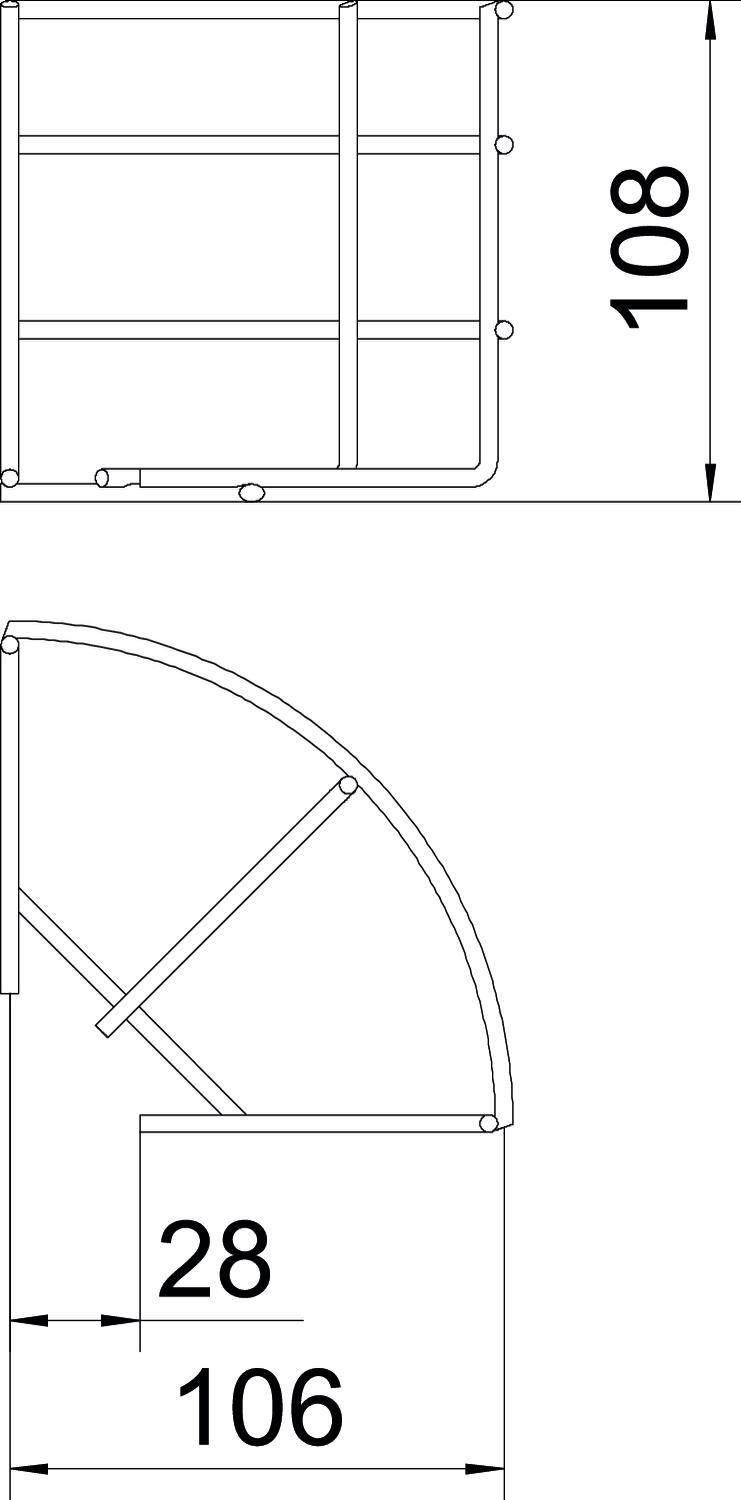

Dimensions
| Width | 100 mm |
|---|---|
| Height | 105 mm |
| Dimension A | 28 mm |
| Dimension B | 106 mm |
| Dimension H | 108 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Connector version | Without connectors |
| Rustproof steel, pickled | no |
| Bend (angle) | 90° |
| Type | Horizontal bend |
| Wire diameter | 39 mm |
| Dimension | 105x100 |
| Surface | Electrogalvanized |
| Material | Steel |
| Colour | zinc |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,3625 kg CO2e / 1 Piece |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (4)
Instructions and Aid (3)
Product images (2)
3D data downloads (1)
Tender specifications (2)
Variants
Trench Part No.
Width
Maintain electrical functions
Wire diameter
OBO Item No.
GRB 90 110 G
100
no
39
6002370
GRB 90 115 G
150
no
39
6002372
GRB 90 120 G
200
no
48
6002374
GRB 90 130 G
300
no
48
6002376
GRB 90 140 G
400
no
48
6002378
GRB 90 150 G
500
no
48
6002382
GRB 90 160 G
600
no
48
6002384
