Blanking cover, 1/2 module, pure white

Blanking cover, 1/2 module, pure white

Trench Part No. ADP-B RW0.5
|
OBO Item No. 6117414
|
EAN 4012196117550
Show all variants
Trench Part No.
ADP-B RW0.5
OBO Item No.
6117414

Smallest selling unit: 10 piece

piece

Description

Blanking cover for closing off empty spaces for a half device (1/2 module).
For installation in Rapid 45 device installation ducts, Rapid 80 device installation ducts, service poles and underfloor systems.

Technical data

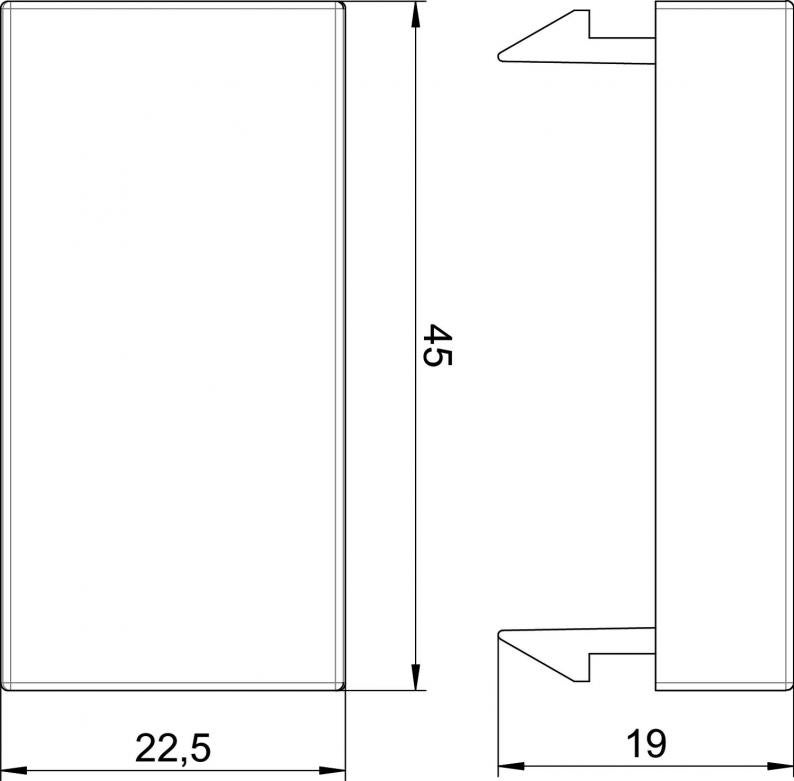

Dimensions

Width225 mm
Height45 mm

Technical data

Hinged coverno
Text field/inscription fieldno
Halogen-freeno
Number of units0
Protection ratingOther
Suitable for flush-mounted installationsno
Suitable for underfloor duct socketno
Suitable for device installation ductsyes
Suitable for built-in installationsno
Flush-mounted versionyes
Depth9 mm
Surface versionMatt
Mounting directionHorizontal
Number of units, horizontal0
Anzahl der Einheiten vertikal0
Fastening typeClamp fastening
Dimension45x22,5mm
ColourPure white; RAL 9010
Antibacterial treatmentno
Printed push-button labelWithout
Version for cover/operating element for installation switch programme Blanking cover
Scannable symbol/barrier-free [Bitte prüfen, ob so gemeint. Ist das technische Scannen gemeint oder aber das Fühlen vom Symbol mit den Fingern (für Blinde, da hier auch von barrierefrei gesprochen wird)]no
Changeable lense/symbolno
Use of cover/operating element for installation switch programmePanel

Environmental Data

0,0517 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
CO2 Footprint (GWP) Cradle-to-Gate0,0517 kg CO2e / 1 Piece
