Blanking lid for UZD250-3/4
Trench Part No. DU 250-2
|OBO Item No. 7400573
|EAN 4012195431572
Trench Part No.
DU 250-2
OBO Item No.
7400573
Smallest selling unit: 1 piece
1piece
piece
Description

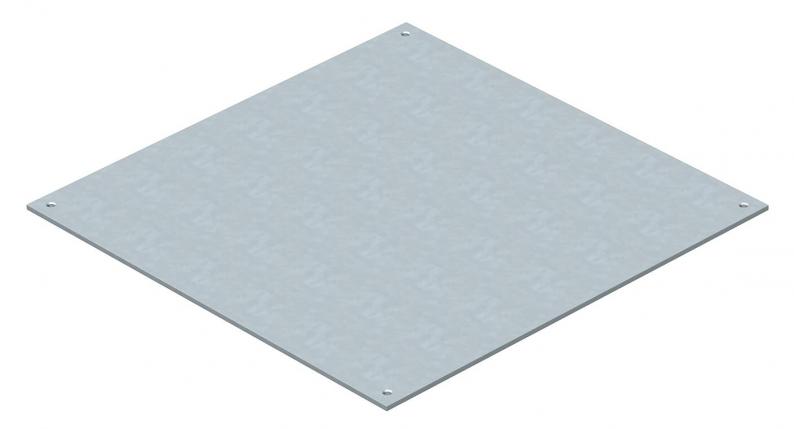

Blanking lid for frameless end cover of the underfloor junction and branch boxes of type UZD250-3/4.
Technical data

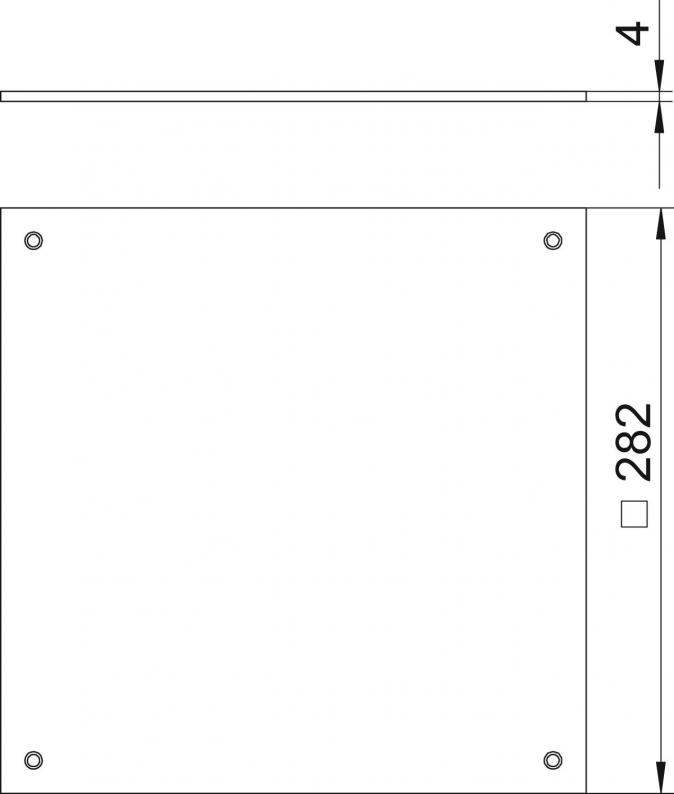

Dimensions
| Length | 282 mm |
|---|---|
| Width | 282 mm |
| Height | 4 mm |
| Dimension A | 282 mm |
Technical data
| Material thickness | 4 mm |
|---|---|
| Suitable for screed-covered underfloor ducts | yes |
| Suitable for screed-flush closed underfloor ducts | no |
| Installation opening for on-floor tank | no |
| Seal installation option | no |
| Floor care | Dry |
| Mounting opening cover | no |
| Heavy-duty version | no |
| Nominal size | 250 mm |
| Mounting opening | Without |
| Dimension | 282x282x4 |
| Surface | Strip galvanized |
| Material | Steel |
Environmental Data
5,6588 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 5,6588 kg CO2e / 1 Piece |
|---|
