Blanking lid for UZD350
Trench Part No. DU 350-2
|OBO Item No. 7400577
|EAN 4012195431589
Trench Part No.
DU 350-2
OBO Item No.
7400577
Smallest selling unit: 1 piece
1piece
piece
Description

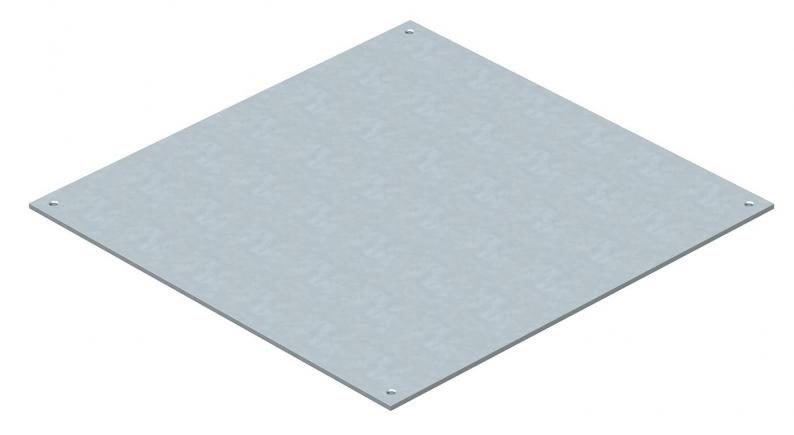

Blanking lid for frameless end cover of the underfloor junction and branch boxes of type UZD350.
Technical data

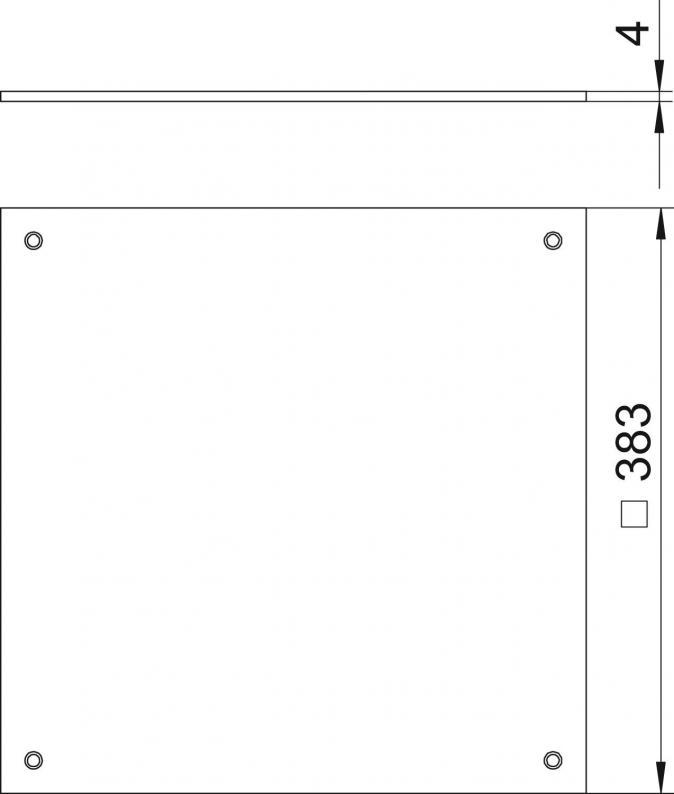

Dimensions
| Length | 383 mm |
|---|---|
| Width | 383 mm |
| Dimension A | 383 mm |
Technical data
| Material thickness | 4 mm |
|---|---|
| Suitable for screed-covered underfloor ducts | yes |
| Suitable for screed-flush closed underfloor ducts | no |
| Installation opening for on-floor tank | no |
| Seal installation option | no |
| Floor care | Dry |
| Mounting opening cover | yes |
| Heavy-duty version | no |
| Nominal size | 350 mm |
| Mounting opening | Without |
| Dimension | 383x383x4 |
| Surface | Strip galvanized |
| Material | Steel |
Environmental Data
11,2014 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 11,2014 kg CO2e / 1 Piece |
|---|
