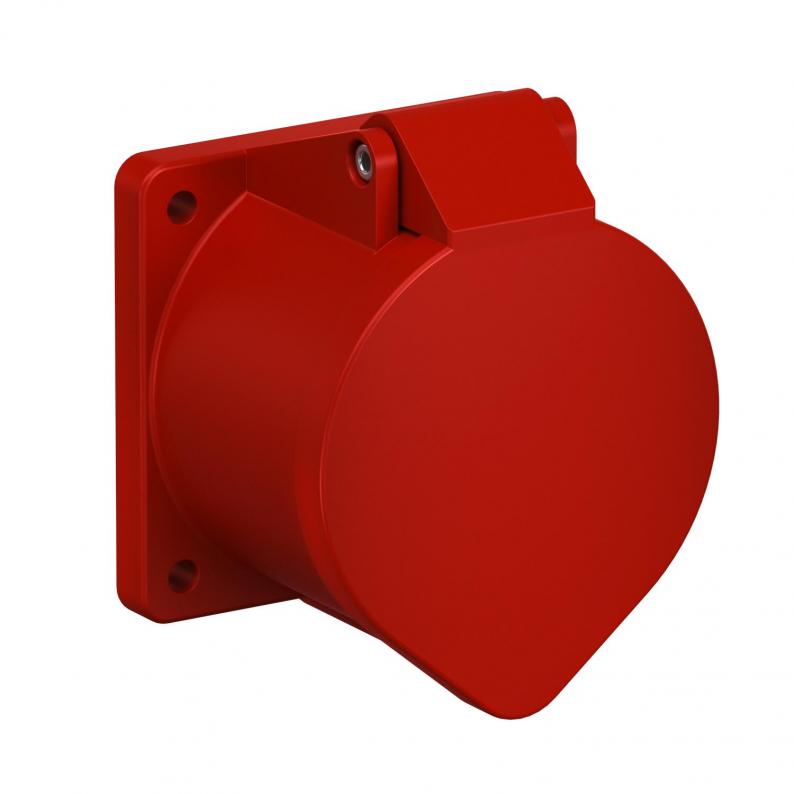

CEE connection unit, 32 A
Trench Part No. CEE-32A
|OBO Item No. 6109876
|EAN 4012195125600
Trench Part No.
CEE-32A
OBO Item No.
6109876
Smallest selling unit: 1 piece
1piece
piece
Description
CEE socket with 60 mm fastening track, 3-pin + N + PE, 400 V, 32 A, 6 h.
Technical data

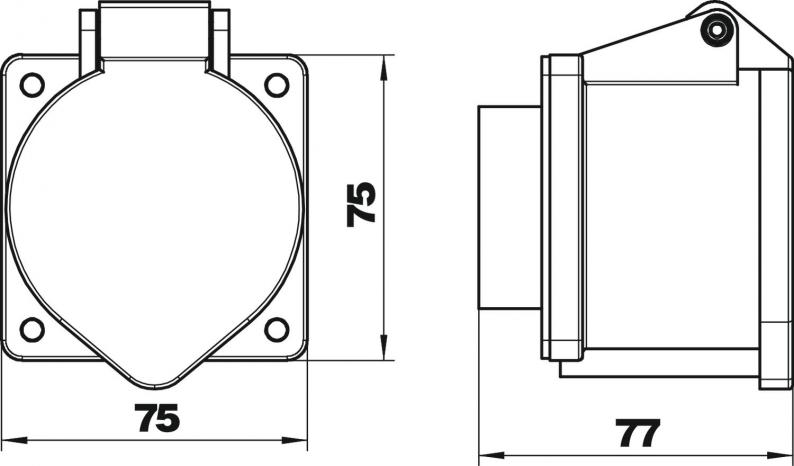

Dimensions
| Length | 77 mm |
|---|---|
| Width | 75 mm |
| Height | 75 mm |
Technical data
| Pole number | 5 |
|---|---|
| Protection rating | IP44 |
| Nominal current | 32 A |
| Nominal voltage | 400 V |
| Military version | no |
| Direction of insertion | Straight |
| Dimension | 75x75x72 |
| Voltage according to EN 60309-2 | 400 V (50+60 Hz) red |
| Connection technology | Screw terminal |
| Cable entry | Other |
| Drill hole spacing, horizontal | 60 mm |
| Drill hole spacing, vertical | 60 mm |
| Flange dimension, horizontal | 75 mm |
| Flange dimension, vertical | 75 mm |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,0996 kg CO2e / 1 Piece |
