Clamping piece G
Trench Part No. GKS 34 G | OBO Item No. 6016855 | EAN 4012197261436
Trench Part No.
GKS 34 G
OBO Item No.
6016855

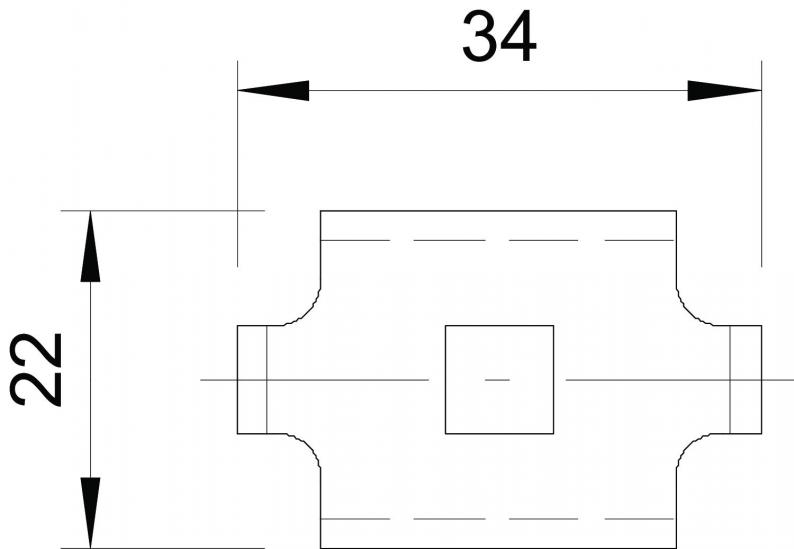

Dimension
34 x 22
Surface
Electrogalvanized
Material
Steel
Smallest selling unit: 20 piece
20piece
Description

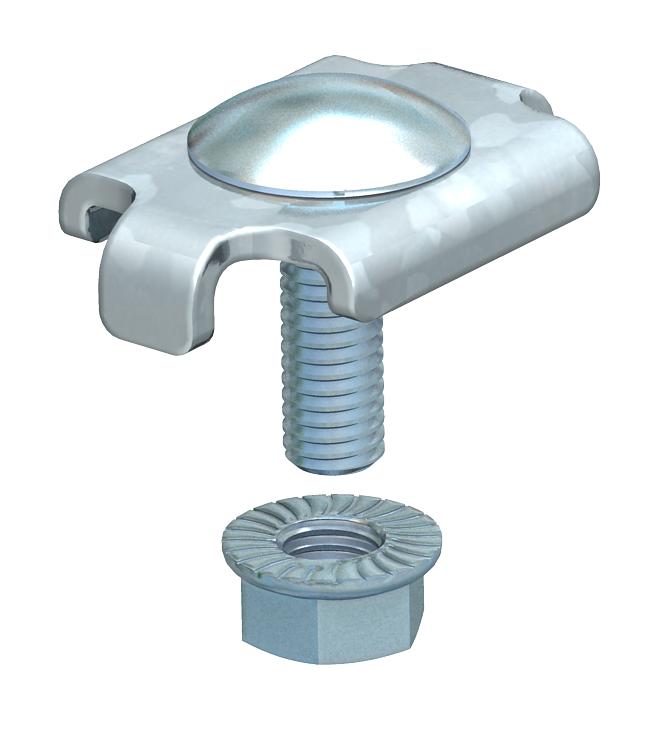

Clamp for fixing mesh cable trays to wall or support brackets.
Including FRS M6 x 20 bolt with combination nut.
Technical data
Technical data
| Rustproof steel, pickled | no |
|---|---|
| Suitable for mesh cable tray | yes |
| Suitable for cable ladder | no |
| Suitable for cable tray | no |
| Dimension | 34 x 22 |
| Surface | Electrogalvanized |
| Material | Steel |
| Colour | zinc |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,0582 kg CO2e / 1 Piece |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (5)
Declarations (4)
Instructions and Aid (3)
Product images (2)
3D data downloads (2)
Tender specifications (2)
