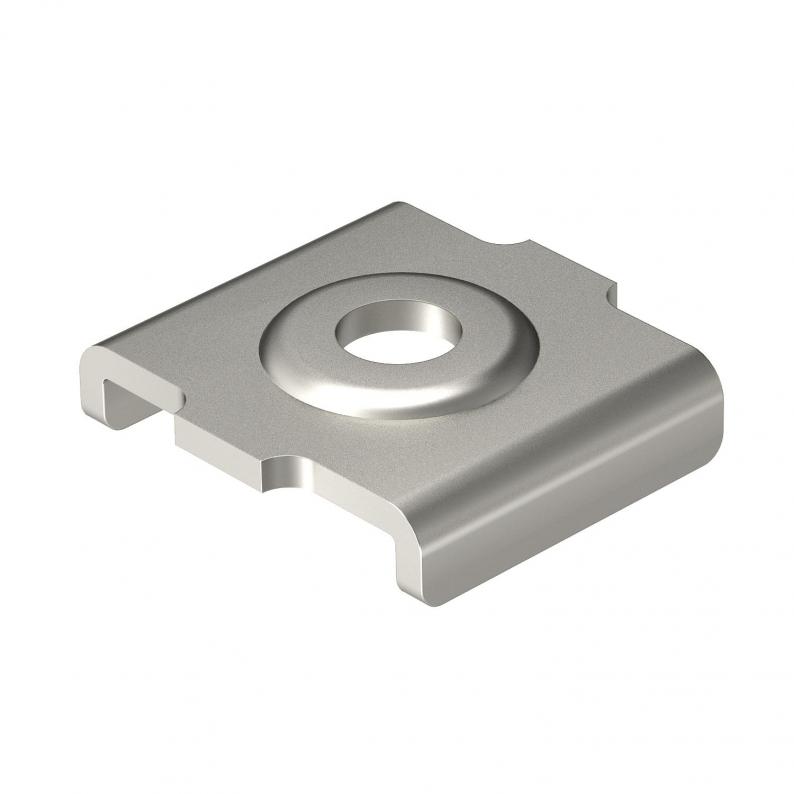

Clamping piece G
Trench Part No. GKB 34 G | OBO Item No. 6016674 | EAN 4012195694052
Trench Part No.
GKB 34 G
OBO Item No.
6016674
Smallest selling unit: 20 piece
20piece
Description
Clamp for fastening mesh cable trays of width 50 mm to the floor.
Technical data

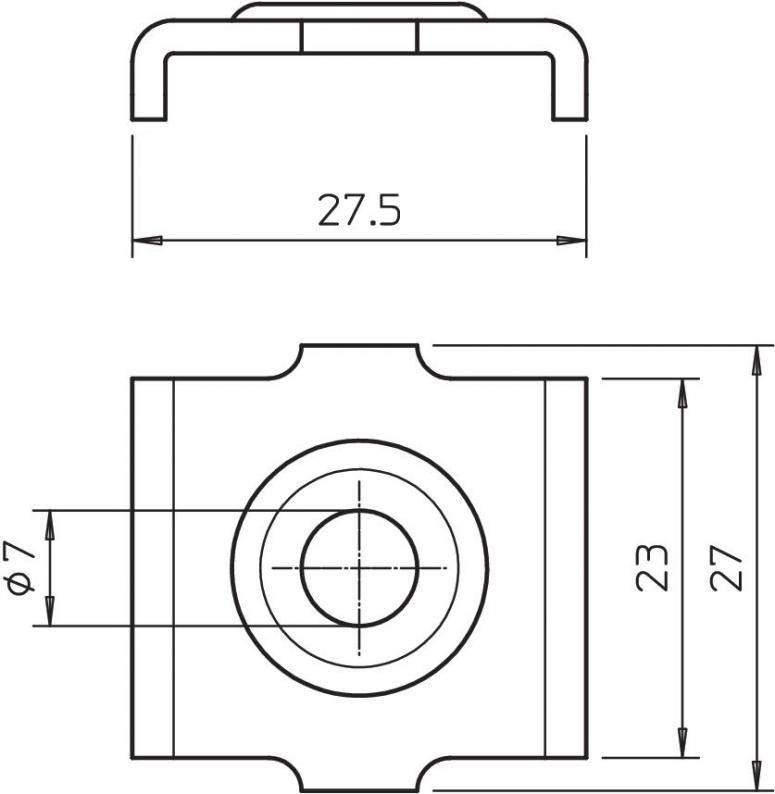

Dimensions
| Length | 275 mm |
|---|---|
| Width | 27 mm |
Technical data
| Rustproof steel, pickled | no |
|---|---|
| Suitable for mesh cable tray | yes |
| Suitable for cable ladder | no |
| Suitable for cable tray | no |
| Surface | Electrogalvanized |
| Material | Steel |
| Colour | zinc |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,0345 kg CO2e / 1 Piece |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (4)
Instructions and Aid (3)
Product images (2)
3D data downloads (2)
Tender specifications (2)
