Connection shackle, conductive, for EÜK-2
Trench Part No. VL 250-2 | OBO Item No. 7400992 | EAN 4012197349912
Trench Part No.
OBO Item No.
Width
Trunking width, min.
Trunking height, max.
Duct height, min.
Smallest selling unit: 1 piece
1piece
Description

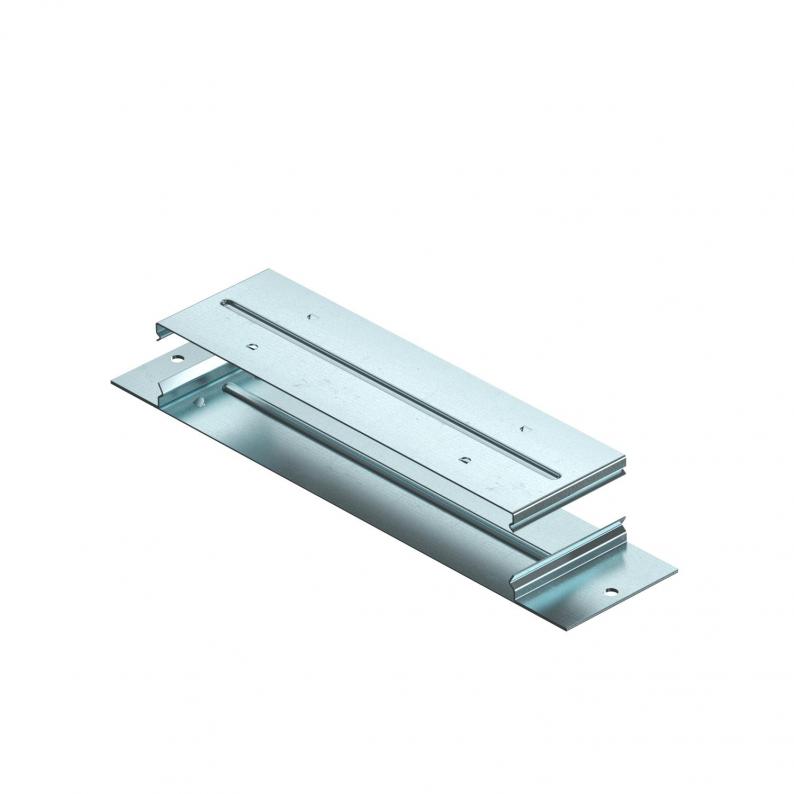

Connection shackle for mounting screed-covered underfloor installation ducts. The connection shackle snaps in to the duct sidewalls.
The electrical conductivity is ensured via the snap-in connection.
Technical data

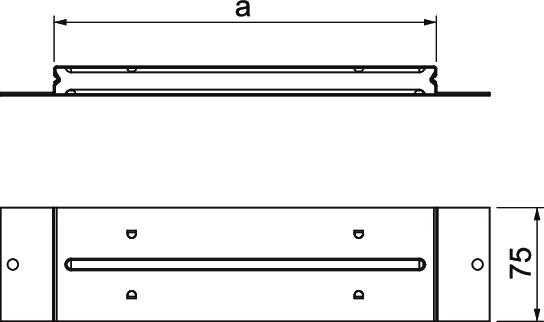

Dimensions
| Length | 323 mm |
|---|---|
| Width | 75 mm |
| Dimension a | 250 mm |
Technical data
| Trunking width, min. | 250 mm |
|---|---|
| Seal installation option | no |
| Floor plate | yes |
| With equipotential bonding | yes |
| Removable cover | yes |
| Suitable for expansion joint | yes |
| Version for | Strap |
| Trunking height, max. | 58 mm |
| Duct height, min. | 28 mm |
| Dimension | 323x75x28,2 |
| Surface | Strip galvanized |
| Material | Steel |
| CO2 Footprint (GWP) Cradle-to-Gate | 1,0153 kg CO2e / 1 Piece |
Downloads
0 selected
Data sheet (1)
Declarations (3)
Certificates (1)
Instructions and Aid (4)
Product images (2)
Tender specifications (2)
Variants
Trench Part No.
Width
Trunking width, min.
Trunking height, max.
Duct height, min.
OBO Item No.
VL 350-2
75
350
58
28
7400996
VL 250-2
75
250
58
28
7400992
Trunking width, min.
VL 350-2
OBO Item No.
7400996
Width
75
Trunking width, min.
350
Trunking height, max.
58
Duct height, min.
28
VL 250-2
OBO Item No.
7400992
Width
75
Trunking width, min.
250
Trunking height, max.
58
Duct height, min.
28
