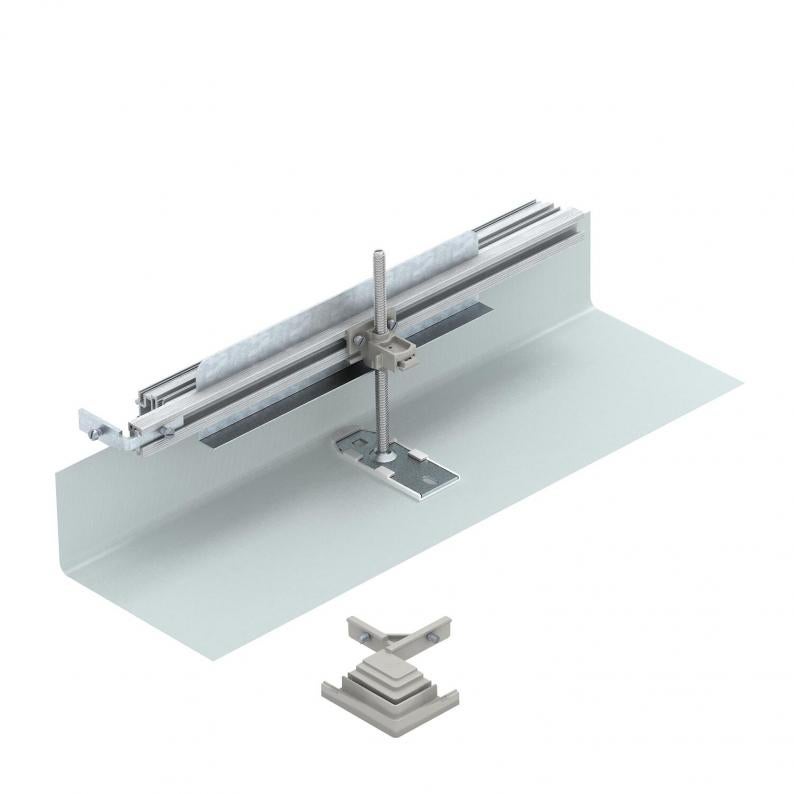

Construction set for 90° angle to left, height 40−150 mm

Construction set for 90° angle to left, height 40−150 mm

Trench Part No. OKA-G30040150FBL
|
OBO Item No. 7423952
|
EAN 4012195651307
Show all variants
Trench Part No.
OBO Item No.
Width

Smallest selling unit: 1 piece

piece

Description

For the construction-side creation of a trunking junction as a 90° angle, T-piece or crossing. A flushfloor end cover is also required for the creation of a 90° angle (order separately). Suitable for the OKA-G and OKA-W trunking systems.

Technical data

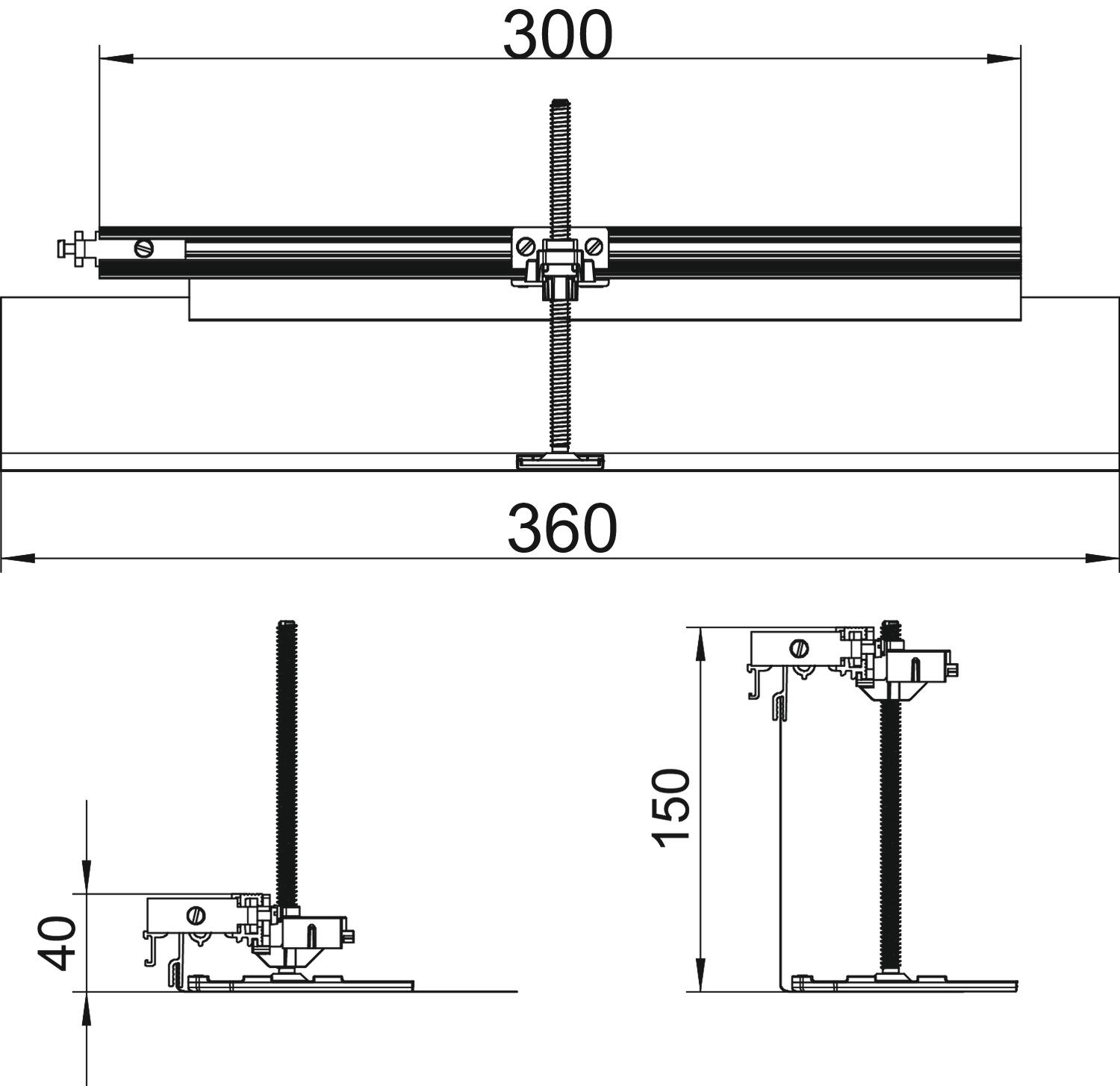

Dimensions

Length360 mm
Width300 mm

Technical data

Height-adjustment range, min.0 mm
Height-adjustment range, max.110 mm
Minimum screed height40
Suitable for screed-covered underfloor ductsno
Suitable for screed-flush closed underfloor ductsno
Installation opening for on-floor tankno
Seal installation optionno
Decouplableno
Floor plateno
With equipotential bondingno
Removable coverno
Cover fastening, lockingno
Mounting opening coverno
With separating retainerno
Suitable for expansion jointno
With overhangyes
FunctionBranch
With connection openingno
Suitable for flushfloor, open underfloor trunkingno
ROHS-conformantExempt
Duct height, min.40 mm
Trunking height, max.150 mm
SurfaceStrip galvanised
MaterialSteel
Product seriesOKA Series

Environmental Data

5,8611 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
CO2 Footprint (GWP) Cradle-to-Gate5,8611 kg CO2e / 1 Piece
CO₂ Footprint (GWP)58611 kg CO₂e
Determination date of CO2 value2025-05-14T00:00:00.000+0200
Declared UnitUnits
Declared Unit Quantity1

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (1)
Declarations (2)
Product images (2)
Tender specifications (1)

Variants

Width
OKA-G20040150FBL
OBO Item No.
7423950
Width
200
OKA-G30040150FBL
OBO Item No.
7423952
Width
300
OKA-G40040150FBL
OBO Item No.
7423954
Width
400
OKA-G50040150FBL
OBO Item No.
7423956
Width
500
OKA-G60040150FBL
OBO Item No.
7423958
Width
600
