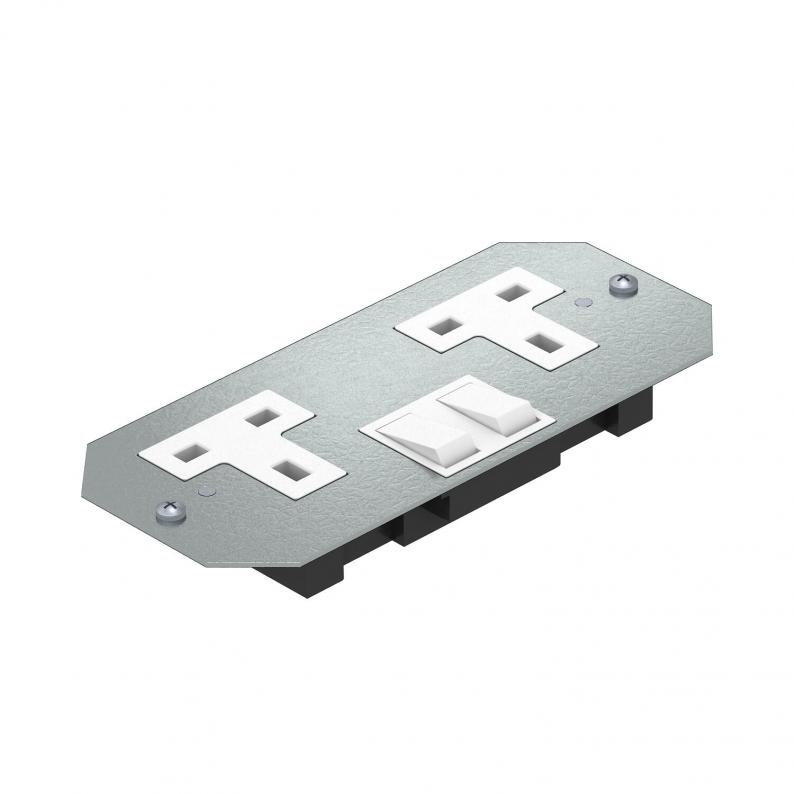

Cover plate APMT2 with double socket
Trench Part No. AP MT2 BS 2SS0
|OBO Item No. 7407872
|EAN 4012195774112
Trench Part No.
AP MT2 BS 2SS0
OBO Item No.
7407872
Smallest selling unit: 4 piece
4piece
piece
Description
Cover plate with a switched double socket for installation in mounting supports beneath GES service outlets and cassettes.
Socket with increased contact protection with screw connection, 3-pole, 13 A, 250 V~, corresponds to BS 1363.
Socket with increased contact protection with screw connection, 3-pole, 13 A, 250 V~, corresponds to BS 1363.
Technical data

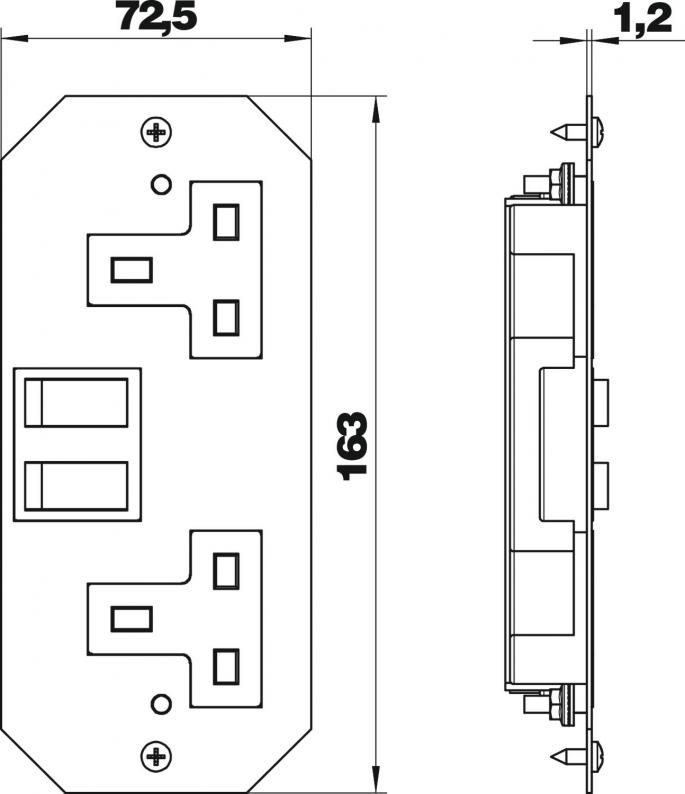

Dimensions
| Length | 163 mm |
|---|
Technical data
| ROHS-conformant | yes |
|---|---|
| Surface | Strip galvanised / organically coated |
| Material | Steel |
| Colour | Grey-white; RAL 9002 |
Environmental Data
0,5051 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 0,5051 kg CO2e / 1 Piece |
|---|---|
| CO₂ Footprint (GWP) | 05051 kg CO₂e |
| Determination date of CO2 value | 2025-05-21T00:00:00.000+0200 |
| Declared Unit | Units |
| Declared Unit Quantity | 1 |
Downloads
0 selected
Data sheet (1)
Declarations (2)
Product images (2)
Tender specifications (1)
Variants
Trench Part No.
OBO Item No.
AP MT2 BS 2SS0
7407872
AP MT2 BS 2SS0
OBO Item No.
7407872
