Device support
Trench Part No. OKB IT
|OBO Item No. 7403850
|EAN 4012195699699
Trench Part No.
OKB IT
OBO Item No.
7403850
Smallest selling unit: 1 piece
1piece
piece
Description

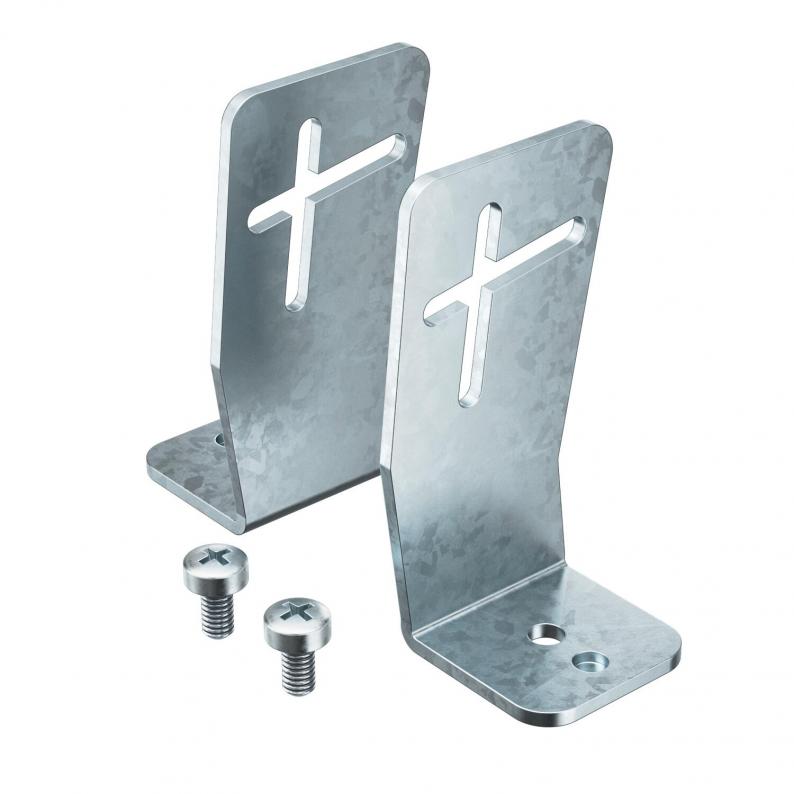

System fastening for universal supports in the trunking base.
Technical data

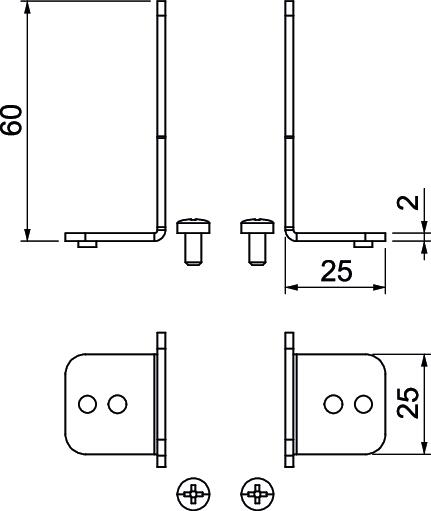

Dimensions
| Length | 25 mm |
|---|---|
| Width | 25 mm |
| Height | 60 mm |
Technical data
| Height-adjustment range, min. | 0 mm |
|---|---|
| Minimum screed height | 85 |
| Suitable for screed-covered underfloor ducts | no |
| Suitable for screed-flush closed underfloor ducts | no |
| Seal installation option | no |
| Decouplable | no |
| Floor plate | no |
| Floor care | Dry |
| With equipotential bonding | no |
| Removable cover | yes |
| Cover fastening, locking | no |
| Mounting opening cover | no |
| Suitable for expansion joint | no |
| With overhang | yes |
| With connection opening | no |
| Suitable for flushfloor, open underfloor trunking | yes |
| ROHS-conformant | yes |
| Surface | Strip galvanised |
| Material | Steel |
| Product series | OKB Series |
Environmental Data
0,2678 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 0,2678 kg CO2e / 1 Piece |
|---|---|
| CO₂ Footprint (GWP) | 02678 kg CO₂e |
| Determination date of CO2 value | 2025-05-14T00:00:00.000+0200 |
| Declared Unit | Units |
| Declared Unit Quantity | 1 |
