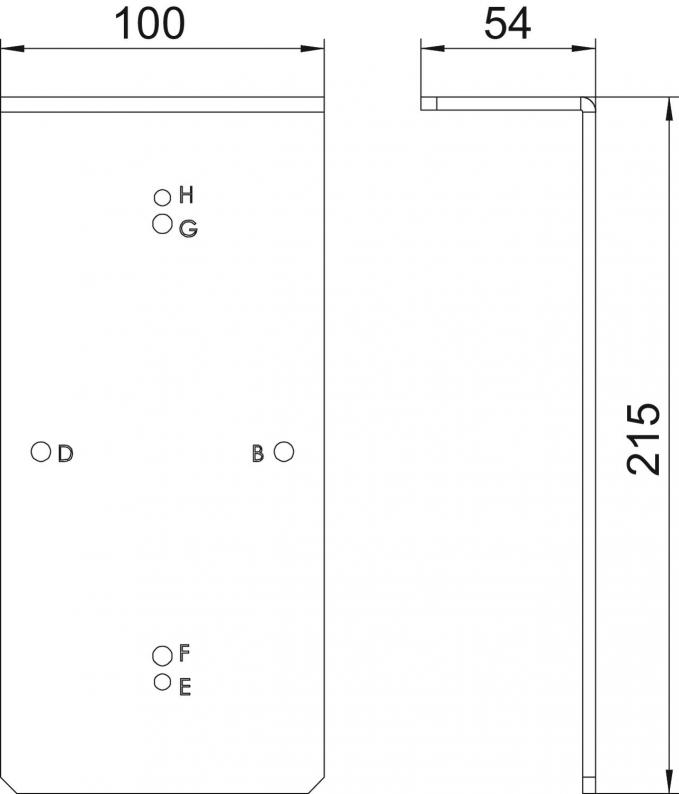

Drilling template for supply trunking
Trench Part No. OKB BS E
|OBO Item No. 7403881
|EAN 4012195862109
Trench Part No.
OKB BS E
OBO Item No.
7403881
Height-adjustment range, min.
0 mm
Smallest selling unit: 1 piece
1piece
piece
Description

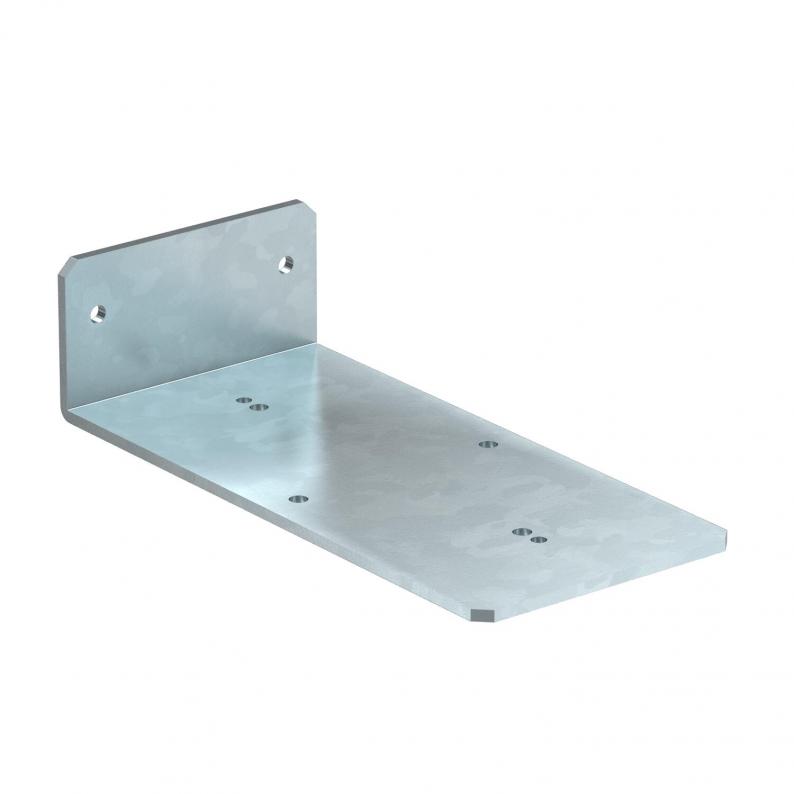

Drilling template for the construction-side creation of all the necessary holes for the mounting of a trunking unit, cut to length, without a brush bar.
Technical data
Technical data
| Height-adjustment range, min. | 0 mm |
|---|---|
| Minimum screed height | 85 |
| Suitable for screed-covered underfloor ducts | no |
| Suitable for screed-flush closed underfloor ducts | no |
| Seal installation option | no |
| Decouplable | yes |
| Floor plate | yes |
| Floor care | Dry |
| With equipotential bonding | no |
| Removable cover | yes |
| Cover fastening, locking | no |
| Mounting opening cover | no |
| Suitable for expansion joint | no |
| With overhang | yes |
| With connection opening | no |
| Suitable for flushfloor, open underfloor trunking | yes |
| Surface | Strip galvanized |
| Material | Steel |
Environmental Data
2,2162 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 2,2162 kg CO2e / 1 Piece |
|---|
