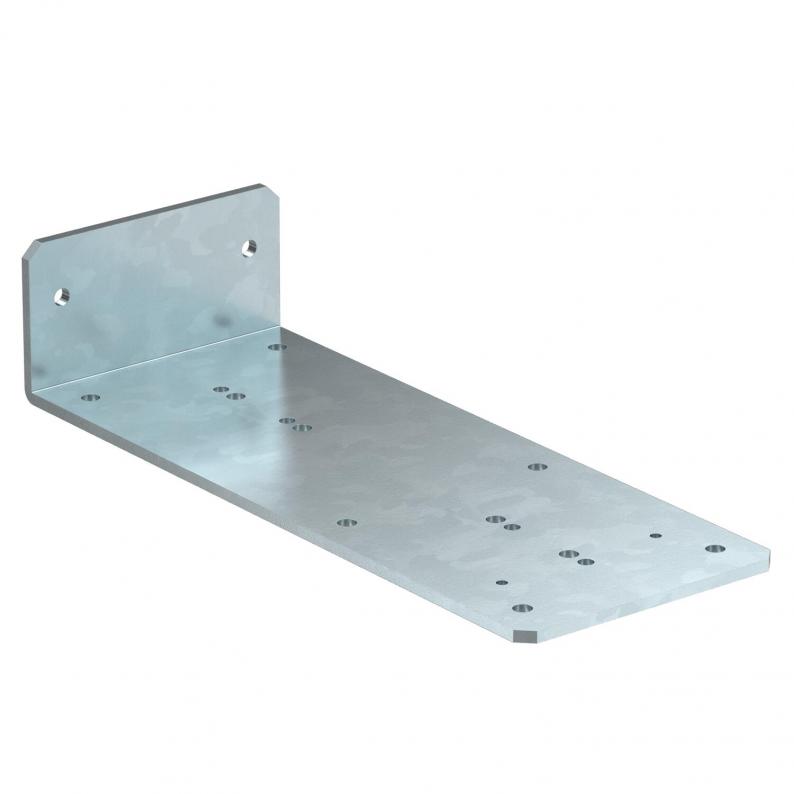

Drilling template for trunking with brush bar
Trench Part No. OKB BS BL
|OBO Item No. 7403883
|EAN 4012195862116
Trench Part No.
OKB BS BL
OBO Item No.
7403883
Height-adjustment range, min.
0 mm
Smallest selling unit: 1 piece
1piece
piece
Description

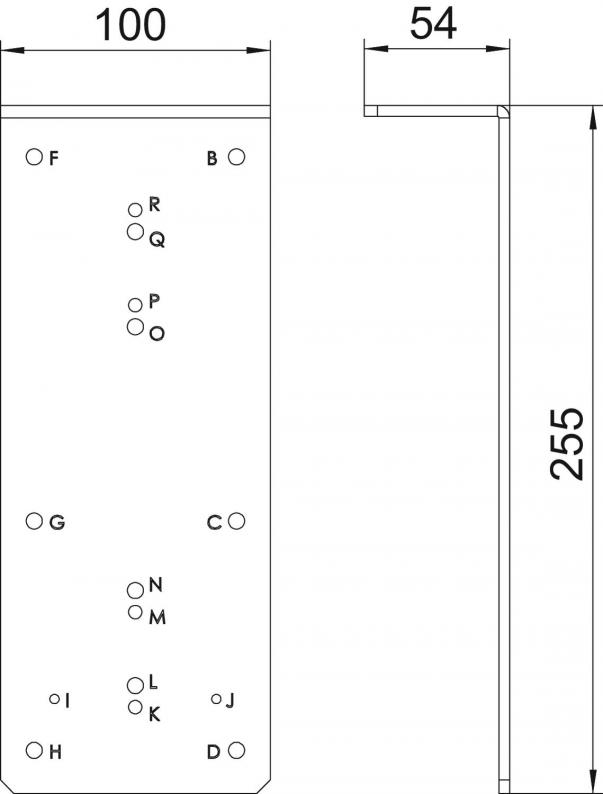

Drilling template for the construction-side creation of perforation holes. With the template the following holes can be marked.
- Connector perforation for joint connectors
- Fastening holes for end pieces
- Mounting holes for support elements
- Fastening holes for locking elements in the cover
- Connector perforation for joint connectors
- Fastening holes for end pieces
- Mounting holes for support elements
- Fastening holes for locking elements in the cover
Technical data
Technical data
| Height-adjustment range, min. | 0 mm |
|---|---|
| Minimum screed height | 85 |
| Suitable for screed-covered underfloor ducts | no |
| Suitable for screed-flush closed underfloor ducts | no |
| Seal installation option | no |
| Decouplable | yes |
| Floor plate | yes |
| Floor care | Dry |
| With equipotential bonding | no |
| Removable cover | yes |
| Cover fastening, locking | no |
| Mounting opening cover | no |
| Suitable for expansion joint | no |
| With overhang | yes |
| With connection opening | no |
| Suitable for flushfloor, open underfloor trunking | yes |
| Surface | Strip galvanized |
| Material | Steel |
Environmental Data
2,9582 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 2,9582 kg CO2e / 1 Piece |
|---|
