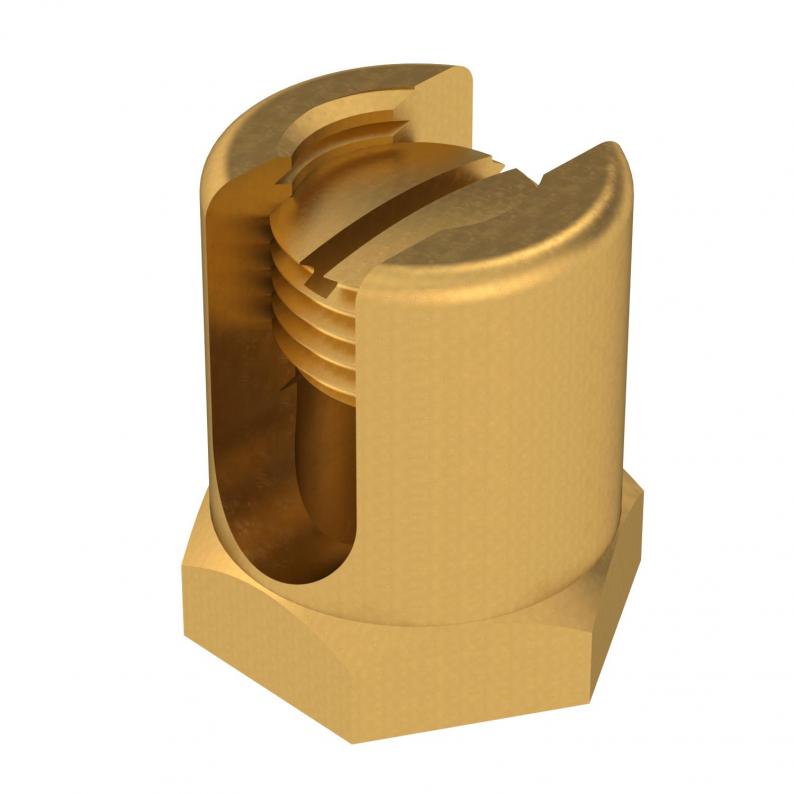

Earthing terminal with fastening thread
Trench Part No. EKL 35 M6 | OBO Item No. 6404014 | EAN 4012196049202
Trench Part No.
EKL 35 M6
OBO Item No.
6404014
Smallest selling unit: 50 piece
50piece
Description
Earthing terminal for fastening the equipotential bonding wire to the cable support system. M14 threaded pin with slot. Suitable for conductor cross sections of 25 - 75 mm².
Technical data
Technical data
| Maintain electrical functions | no |
|---|---|
| Rustproof steel, pickled | no |
| Thread | M6 |
| Suitable for mesh cable tray | no |
| Suitable for cable ladder | yes |
| Suitable for cable tray | yes |
| With screw accessories | no |
| WAF | 21 |
| Cross-section | 75 mm² |
| Dimension | 25-75mm² |
| Material | Brass |
| Colour | Brass |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,1191 kg CO2e / 1 Piece |

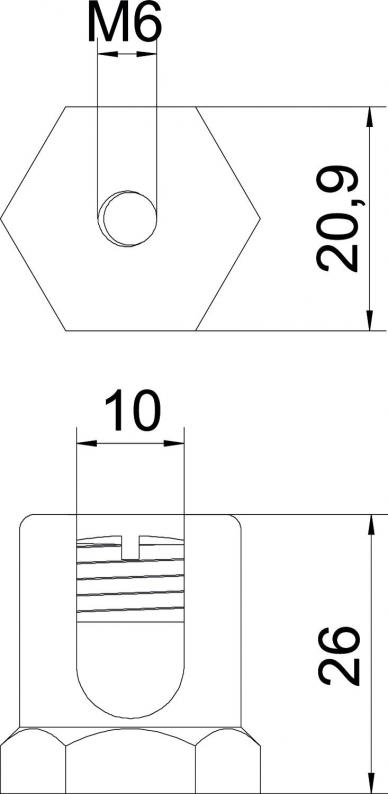

Dimensions
| Dimension L | 26 mm |
|---|---|
| Dimension l | 10 mm |
