End piece, duct height 120 mm, pure white
Trench Part No. PLM EP 1220 RW
|OBO Item No. 7218096
|EAN 4012197310301
Trench Part No.
PLM EP 1220 RW
OBO Item No.
7218096
Dimension B
205 mm
Dimension H
121 mm
Colour
Pure white; RAL 9010
Smallest selling unit: 1 piece
1piece
piece
Description

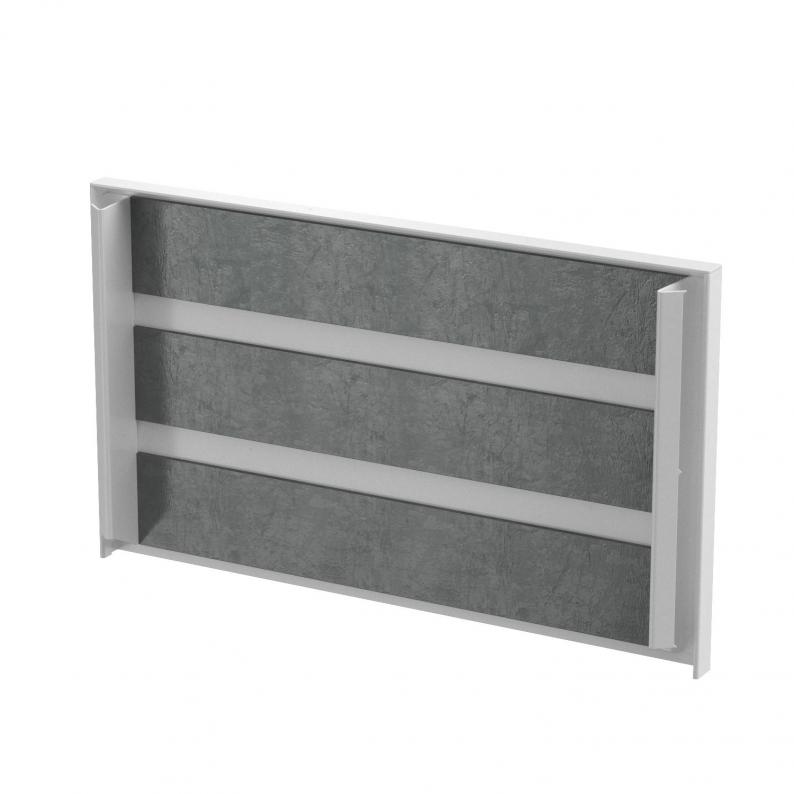

End piece with intumescent fire protection mesh to close the PYROLINE® Rapid PLM installation duct.
Technical data
Technical data
| Usable cross-section | 18500 mm² |
|---|---|
| Jacketing | Steel |
| Number of flammable sides | 4 |
| Classification EI − installation duct | 90 |
| Dimension | 205x20x121 |
| Surface | Powder-coated |
| Material | Steel |
| Colour | Pure white; RAL 9010 |

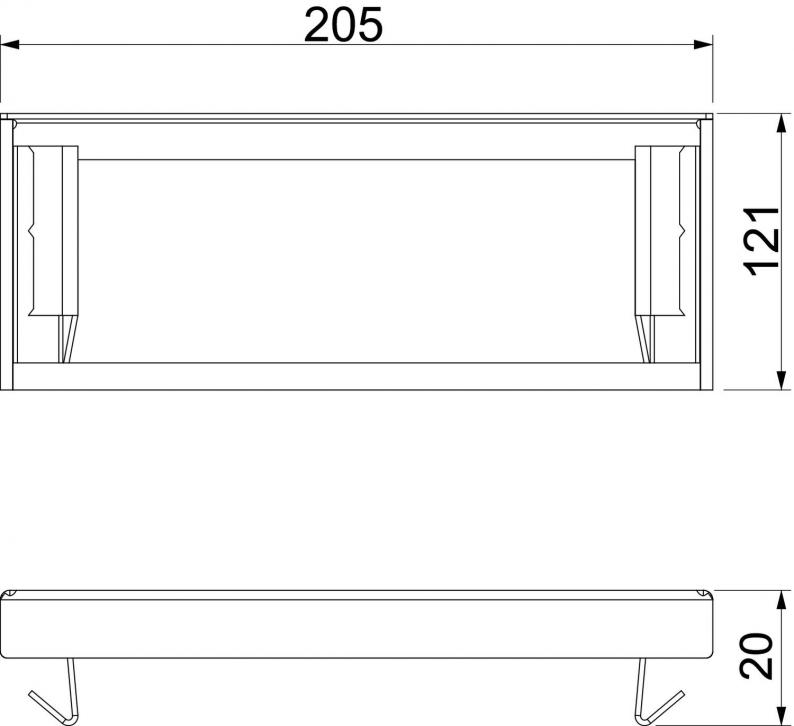

Dimensions
| Dimension B | 205 mm |
|---|---|
| Dimension H | 121 mm |
Environmental Data
0,9137 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 0,9137 kg CO2e / 1 Piece |
|---|
