Extension unit for GES4, height 60−110 mm
Trench Part No. OKA-W A 6050 4
|OBO Item No. 7424900
|EAN 4012195245179
Trench Part No.
OKA-W A 6050 4
OBO Item No.
7424900
Length
473 mm
Width
400 mm
Installation opening for flush-mount unit
Square
Trunking height, max.
110 mm
Duct height, min.
60 mm
Smallest selling unit: 1 piece
1piece
piece
Description

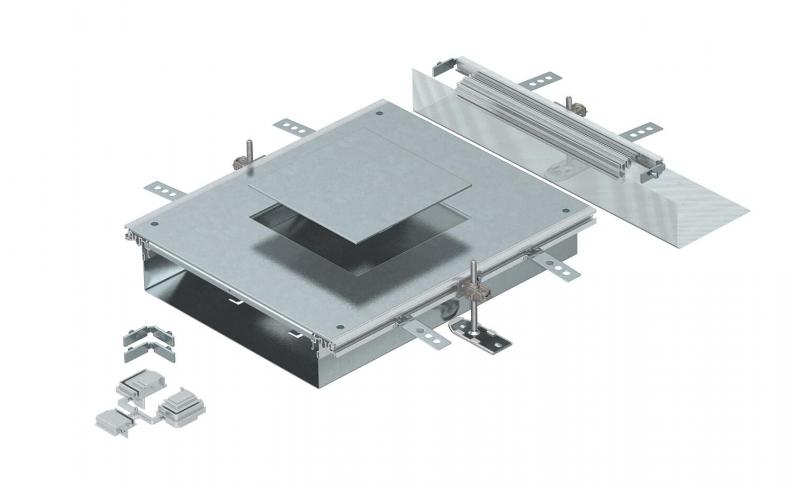

Ready-to-mount trunking extension unit with a device installation lid for the installation of an installation unit of nominal size 4, consisting of the trunking base (floor trough with side and floor covering guide profiles), trunking lid with blank mounting opening and a flushfloor end cover. The scope of delivery contains three height-adjustable wall fixing brackets, three screed anchors and trunking connection brackets.
Size of the mounting unit suitable for the installation of a square installation unit of nominal size 4.
Technical data

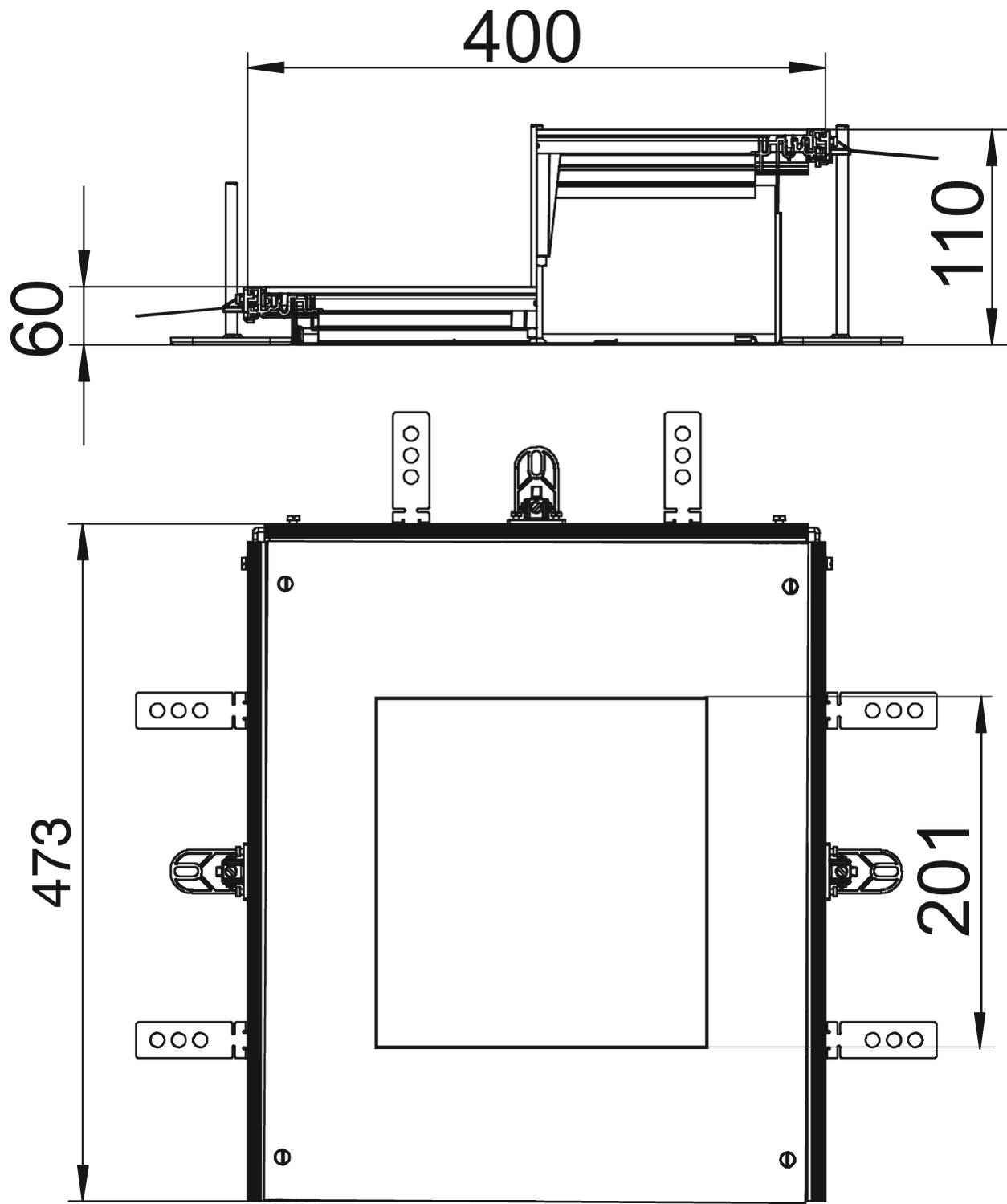

Dimensions
| Length | 473 mm |
|---|---|
| Width | 400 mm |
| Dimension A | 400 mm |
| Dimension a | 201 mm |
| Dimension h | 60 mm |
Technical data
| Covers | 1 |
|---|---|
| Height-adjustment range, max. | 110 mm |
| Height-adjustment range, min. | 60 mm |
| Minimum screed height | 60 |
| Suitable for screed-covered underfloor ducts | no |
| Suitable for screed-flush closed underfloor ducts | no |
| Installation opening for on-floor tank | no |
| Seal installation option | yes |
| Decouplable | no |
| Floor plate | no |
| With equipotential bonding | no |
| Removable cover | yes |
| Cover fastening, locking | no |
| Mounting opening | For service outlet |
| Mounting opening cover | yes |
| With separating retainer | no |
| Cover material thickness | 4 |
| Installation opening for flush-mount unit | Square |
| Suitable for expansion joint | no |
| With overhang | yes |
| Number of mounting openings | 1 |
| With connection opening | yes |
| Suitable for flushfloor, open underfloor trunking | yes |
| Nominal size for device installation units | 4 |
| Trunking height, max. | 110 mm |
| Duct height, min. | 60 mm |
| Surface | Strip galvanized |
| Material | Steel |
Environmental Data
47,0493 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 47,0493 kg CO2e / 1 Piece |
|---|
