External corner, without height adjustment unit
Trench Part No. OKB AE 25085 ON
|OBO Item No. 7403831
|EAN 4012195845980
Trench Part No.
OKB AE 25085 ON
OBO Item No.
7403831
Width
250 mm
Smallest selling unit: 1 piece
1piece
piece
Description

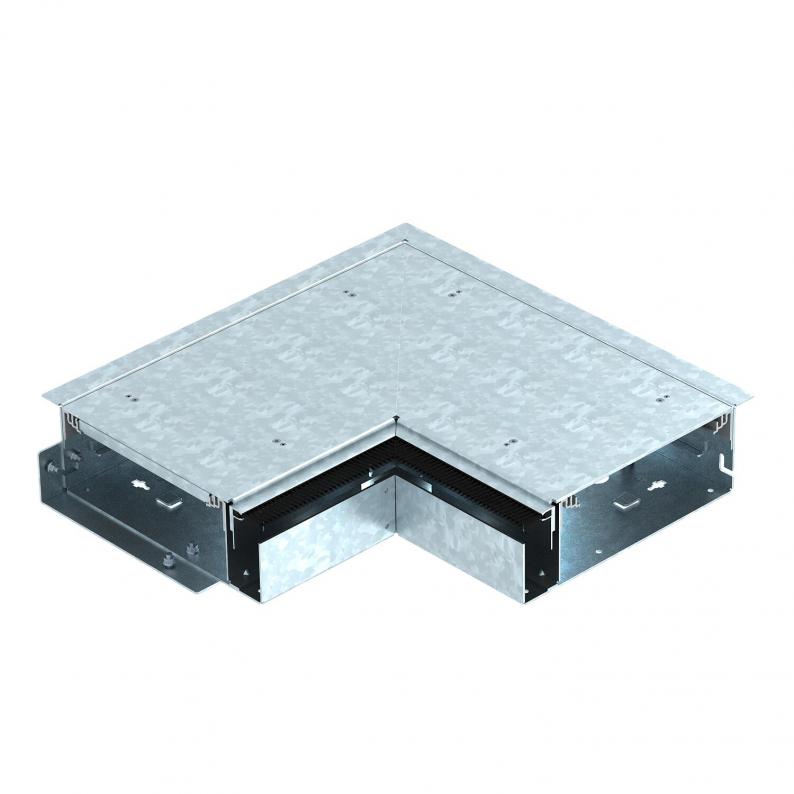

Ready-to-mount external corner, consisting of a trunking base, two lids, height-adjustable side profiles and brush bar arranged on the wall side for cable alignment. The scope of delivery contains one lid butt seal and a connector.
For height adjustment five levelling units are required.
For height adjustment five levelling units are required.
Technical data

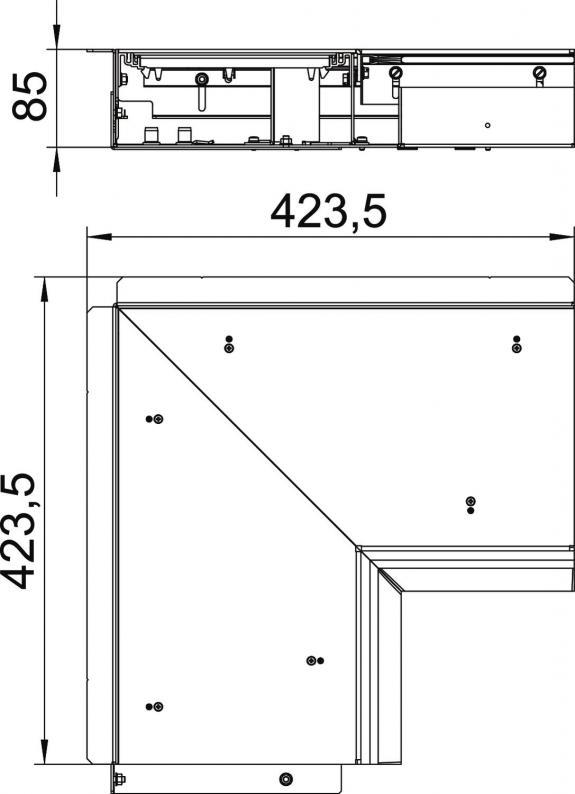

Dimensions
| Length | 422 mm |
|---|---|
| Width | 250 mm |
| Height | 93 mm |
| Dimension h | 85 mm |
Technical data
| Height-adjustment range, min. | 0 mm |
|---|---|
| Minimum screed height | 93 |
| Suitable for screed-covered underfloor ducts | no |
| Suitable for screed-flush closed underfloor ducts | no |
| Installation opening for on-floor tank | no |
| Seal installation option | no |
| Decouplable | yes |
| Floor plate | yes |
| Floor care | Dry |
| With equipotential bonding | no |
| Removable cover | yes |
| Cover fastening, locking | no |
| Mounting opening cover | no |
| With separating retainer | no |
| Suitable for expansion joint | no |
| With overhang | yes |
| Function | External corner |
| With connection opening | no |
| Suitable for flushfloor, open underfloor trunking | yes |
| Dimension | 424x424x87 |
| Surface | Strip galvanized |
| Material | Steel |
| Separating retainer fastening | Plug |
Environmental Data
41,0954 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 41,0954 kg CO2e / 1 Piece |
|---|
