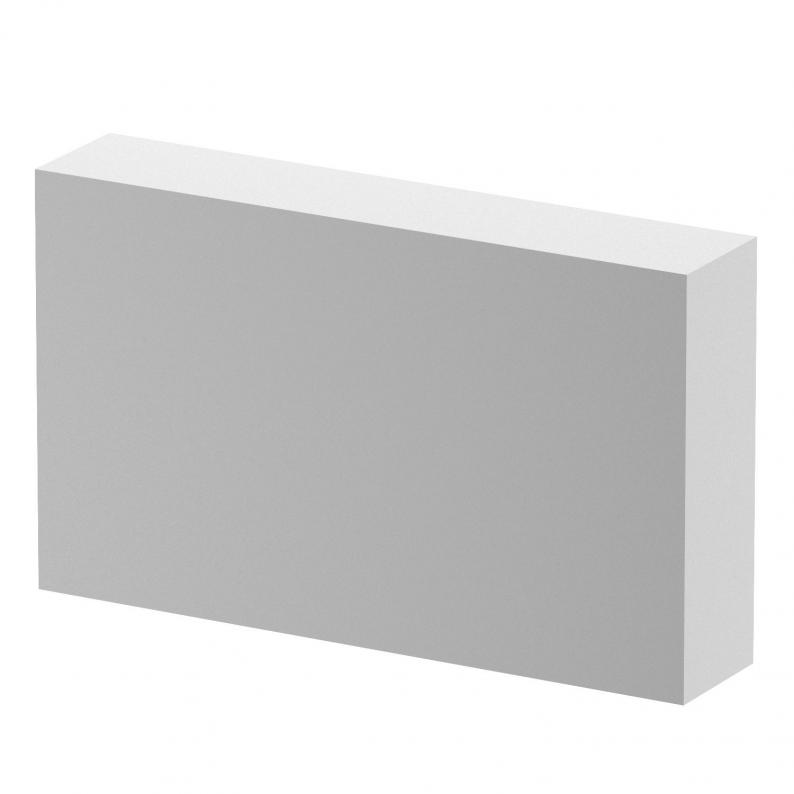

Foam seal, duct height 120 mm
Trench Part No. PLM CO 1220
|OBO Item No. 7218162
|EAN 4012197273651
Trench Part No.
PLM CO 1220
OBO Item No.
7218162
Smallest selling unit: 1 piece
1piece
piece
Description
Flexibly adjustable foam seal for PYROLINE® Rapid PLM installation duct to seal cable bundles or cables with a large external diameter for cable exits from the installation duct. The surface must be additionally sealed with the ASX ablation coating.
Technical data

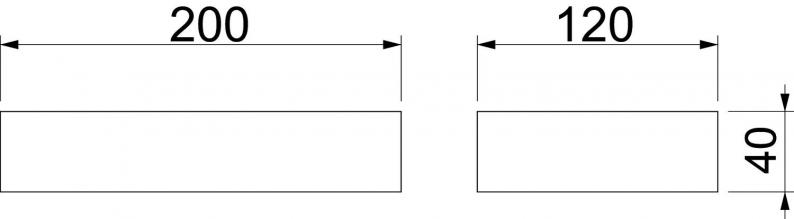

Dimensions
| Dimension B | 200 mm |
|---|---|
| Dimension H | 120 mm |
Technical data
| Dimension | 120x40x200 |
|---|---|
| Material | Foam |
| Colour | White |
