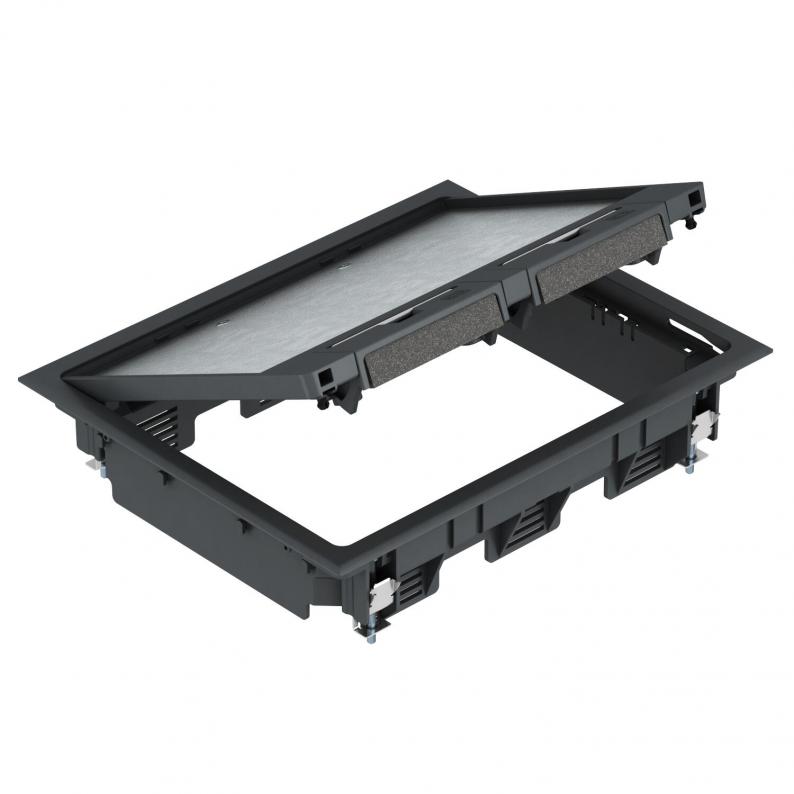

GES6 service outlet with handle clamp
Trench Part No. GES6 U 9011
|OBO Item No. 7405312
|EAN 4012195103110
Trench Part No.
OBO Item No.
Floor covering thickness
Colour
Smallest selling unit: 1 piece
1piece
piece
Description
Service outlet with handle clamp for up to 9 individual Modul 45 devices in three UT3 universal supports, use in trunking systems and system floors for indoor use.
Service outlet with handle clamp, 3-compartment, for the installation of MT6 mounting support. Three type APMT2 cover plates can be installed.
Service outlet with handle clamp, 3-compartment, for the installation of MT6 mounting support. Three type APMT2 cover plates can be installed.
Separate fastening brackets must be ordered for raised floor mounting.
Up to 6 installation devices with 50 mm central plate can be inserted.
Technical data
Technical data
| Floor height, min. | 73 mm |
|---|---|
| Floor covering thickness | 5 mm |
| Suitable for screed-covered underfloor ducts | yes |
| Suitable for screed-flush closed underfloor ducts | no |
| Number of installable devices | 9 |
| Seal installation option | no |
| Length of installation dimensions | 199 mm |
| Wide installation dimensions | 252 mm |
| Length of external dimensions | 220 mm |
| Wide external dimensions | 273 mm |
| Suitable for underfloor ducts | yes |
| Suitable for cavity floor installation | yes |
| Suitable for raised floor installation | yes |
| Floor care | Dry |
| Frame version | Carpet protection frame |
| Number of mounting boxes | 3 |
| Suitable for wet care | no |
| Installation depth | 73 mm |
| With floor covering recess | yes |
| Floor covering protection frame | yes |
| Cable outlet version | Swivellable cord outlet |
| Device support to accept mounting boxes | yes |
| Protection rating IK code | IK08 |
| Installation system type | MT3 / GB2 |
| Heavy-duty version | no |
| Nominal size for device installation units | 6 |
| Approvals | VDE |
| Protection rating (IP) when used | IP20 |
| Protection rating (IP) when unused | IP40 |
| Vertical load, small area | to 2,500 N |
| Vertical load, large area | to 3,000 N |
| Version for | Rectangular |
| Opening mechanism | Handle |
| Clamping range D, max. | 31 mm |
| Clamping range D, min. | 9 mm |
| Dimension | 273x220x61 |
| Material | Polyamide |
| Colour | Graphite black; RAL 9011 |

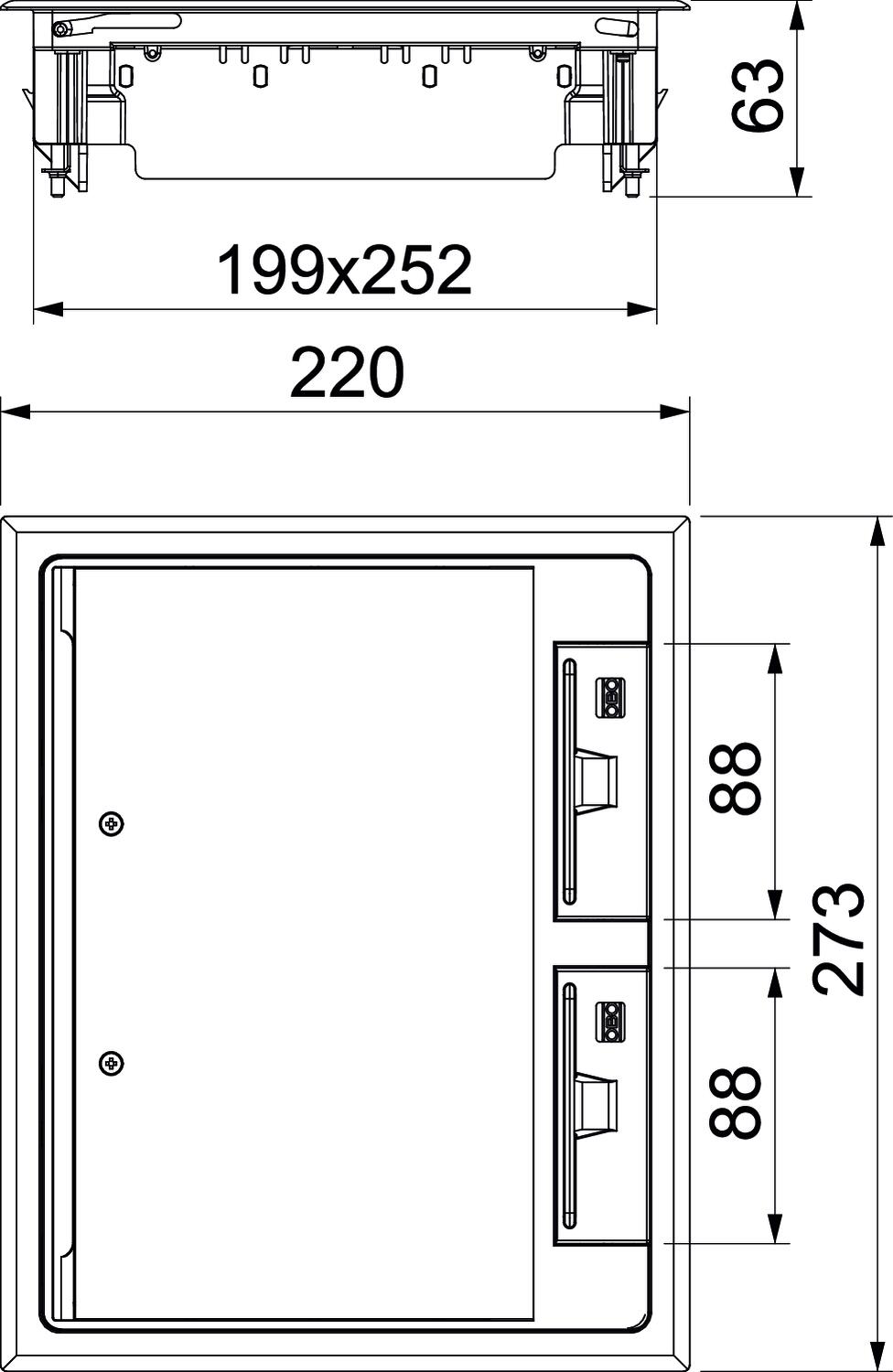

Dimensions
| Dimension h | 73 mm |
|---|
Environmental Data
1,8068 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 1,8068 kg CO2e / 1 Piece |
|---|
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (1)
Declarations (4)
Certificates (1)
Product images (2)
3D data downloads (1)
Tender specifications (1)
Variants
Trench Part No.
Floor covering thickness
Nominal size for device installation units
Colour
OBO Item No.
GES6 U 7011
5
6
Iron grey; RAL 7011
7405308
GES6 U 9011
5
6
Graphite black; RAL 9011
7405312
Colour
GES6 U 7011
OBO Item No.
7405308
Floor covering thickness
5
Nominal size for device installation units
6
Colour
Iron grey; RAL 7011
GES6 U 9011
OBO Item No.
7405312
Floor covering thickness
5
Nominal size for device installation units
6
Colour
Graphite black; RAL 9011
