GESRA9/10 service outlet with handle clamp
Trench Part No. GESRA9 10U
|OBO Item No. 7405580
|EAN 4012195104445
Trench Part No.
GESRA9 10U
OBO Item No.
7405580
Floor covering thickness
10 mm
Smallest selling unit: 1 piece
1piece
piece
Description

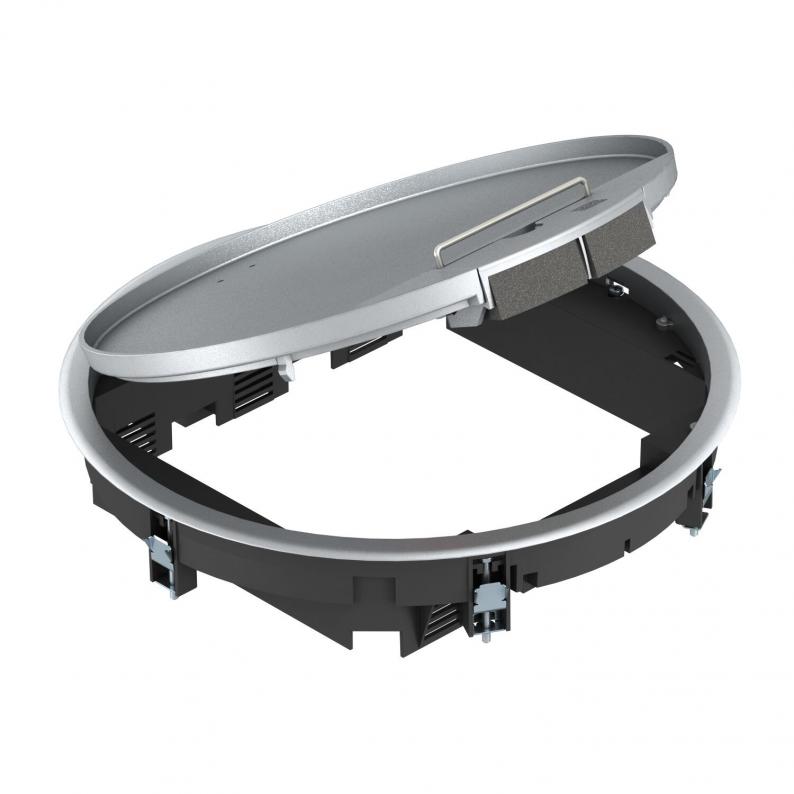

Service outlet with handle clamp for up to 12 individual Modul 45 devices in 3 UT4 universal supports, use in duct systems and system floors for indoor use.
Service outlet with handle clamp, 3-compartment, for the installation of MT9 mounting support. Three type APMT5 cover plates can be installed.
Service outlet with handle clamp, 3-compartment, for the installation of MT9 mounting support. Three type APMT5 cover plates can be installed.
Up to 9 installation devices with 50 mm central plate can be inserted.
Technical data
Technical data
| Floor height, min. | 78 mm |
|---|---|
| Floor covering thickness | 10 mm |
| Suitable for screed-covered underfloor ducts | yes |
| Number of installable devices | 12 |
| Seal installation option | no |
| Installation diameter | 305 |
| Suitable for underfloor ducts | yes |
| Suitable for cavity floor installation | yes |
| Suitable for raised floor installation | yes |
| Floor care | Dry |
| Number of mounting boxes | 3 |
| Suitable for wet care | no |
| Installation depth | 78 mm |
| External diameter | 323 mm |
| With floor covering recess | yes |
| Floor covering protection frame | yes |
| Device support to accept mounting boxes | yes |
| Protection rating IK code | IK10 |
| Installation system type | UT4 |
| Heavy-duty version | no |
| Nominal size for device installation units | R9 |
| Approvals | VDE |
| Protection rating (IP) when used | IP20 |
| Protection rating (IP) when unused | IP40 |
| Vertical load, small area | to 3,000 N |
| Vertical load, large area | to 5,000 N |
| Version for | Round |
| Opening mechanism | Handle |
| Clamping range D, max. | 33 mm |
| Clamping range D, min. | 3 mm |

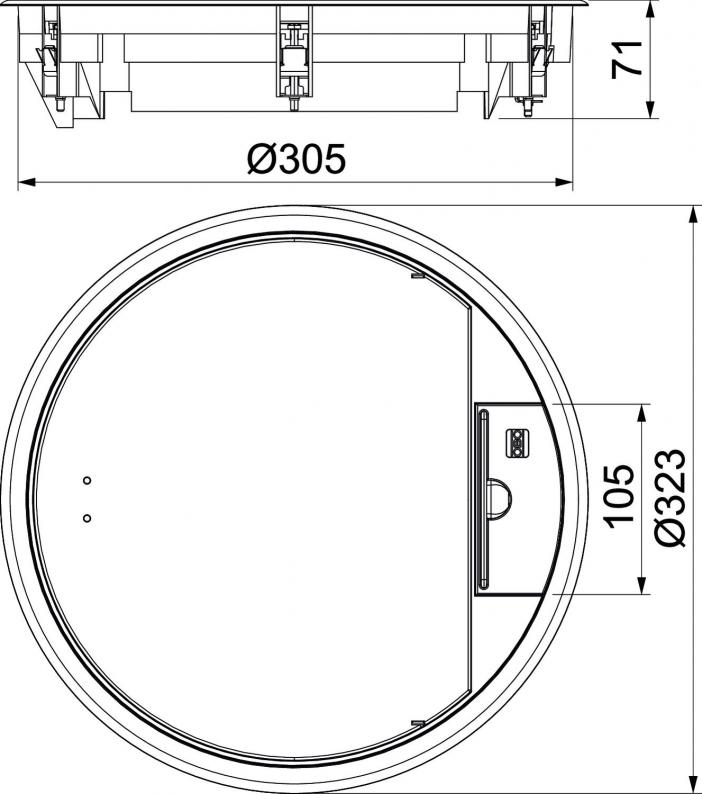

| Dimension | Ø323x70 |
| Material | Cast aluminium |
