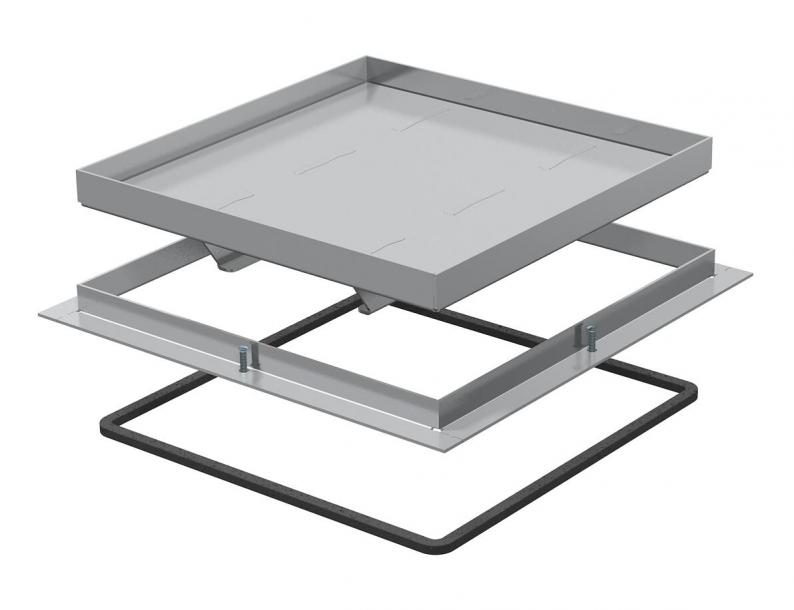

Heavy-duty frame cassette, blank, RKSL, nominal size 350-3
Trench Part No. RK SL2 V3 25
|OBO Item No. 7405956
|EAN 4012195106067
Trench Part No.
OBO Item No.
Floor height, min.
Floor covering thickness
Dimension h
Smallest selling unit: 1 piece
1piece
piece
Description
"Blank" heavy-duty frame cassette for the creation of an inspection opening in the UZD350-3 in dry or wet-cleaned floors. Load class 2 to 20 kN. Only suitable for smooth floor coverings for indoor use.
Heavy-duty frame cassette, blank, for the creation of an inspection opening in the underfloor box UZD350-3 in dry- or wet-cleanded floors. Load class 2 to 20 kN. Suitable only for smooth floor coverings in indoor areas.
Heavy-duty frame cassette, blank, for the creation of an inspection opening in the underfloor box UZD350-3 in dry- or wet-cleanded floors. Load class 2 to 20 kN. Suitable only for smooth floor coverings in indoor areas.
Technical data
Technical data
| Screed height, min. | 70 mm |
|---|---|
| Floor height, min. | 95 mm |
| Floor covering thickness | 19 mm |
| Length of installation dimensions | 390 mm |
| Wide installation dimensions | 390 mm |
| Suitable for cavity floor installation | yes |
| Suitable for raised floor installation | yes |
| Floor care | Wet |
| Cable outlet version | No cable outlet |
| Number of cable outlets | 0 |
| Device support to accept mounting boxes | no |
| Protection rating IK code | IK10 |
| Heavy load class | 20 kN (OBO SL2) |
| Heavy-duty version | yes |
| Protection rating (IP) when used | IP00 |
| Protection rating (IP) when unused | IP44 |
| ROHS-conformant | yes |
| Dimension | 383x383x25 |
| Material | Stainless steel 1.4301 |
| Product series | RK |

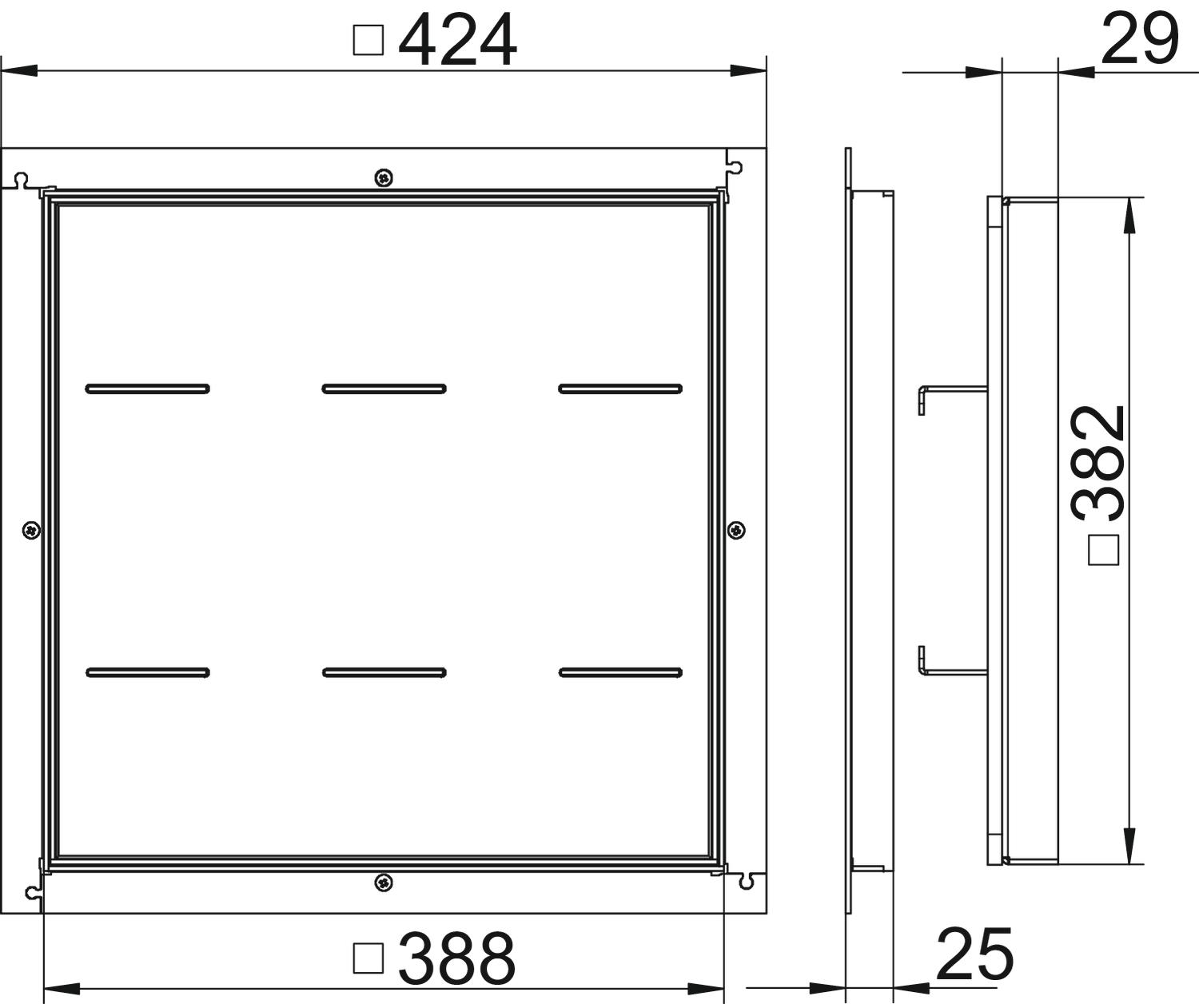

Dimensions
| Dimension A | 424 mm |
|---|---|
| Dimension B | 388 mm |
| Dimension C | 382 mm |
| Dimension h | 25 mm |
Environmental Data
52,7103 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 52,7103 kg CO2e / 1 Piece |
|---|---|
| CO₂ Footprint (GWP) | 527103 kg CO₂e |
| Determination date of CO2 value | 2025-05-14T00:00:00.000+0200 |
| Declared Unit | Units |
| Declared Unit Quantity | 1 |
Downloads
0 selected
Data sheet (1)
Declarations (3)
Product images (2)
3D data downloads (1)
Tender specifications (1)
Variants
Trench Part No.
Floor height, min.
Floor covering thickness
Dimension h
OBO Item No.
RK SL2 V3 25
95
19
25
7405956
RK SL2 V3 30
100
24
30
7405960
Floor height, min.
Floor covering thickness
Dimension h
RK SL2 V3 25
OBO Item No.
7405956
Floor height, min.
95
Floor covering thickness
19
Dimension h
25
RK SL2 V3 30
OBO Item No.
7405960
Floor height, min.
100
Floor covering thickness
24
Dimension h
30
