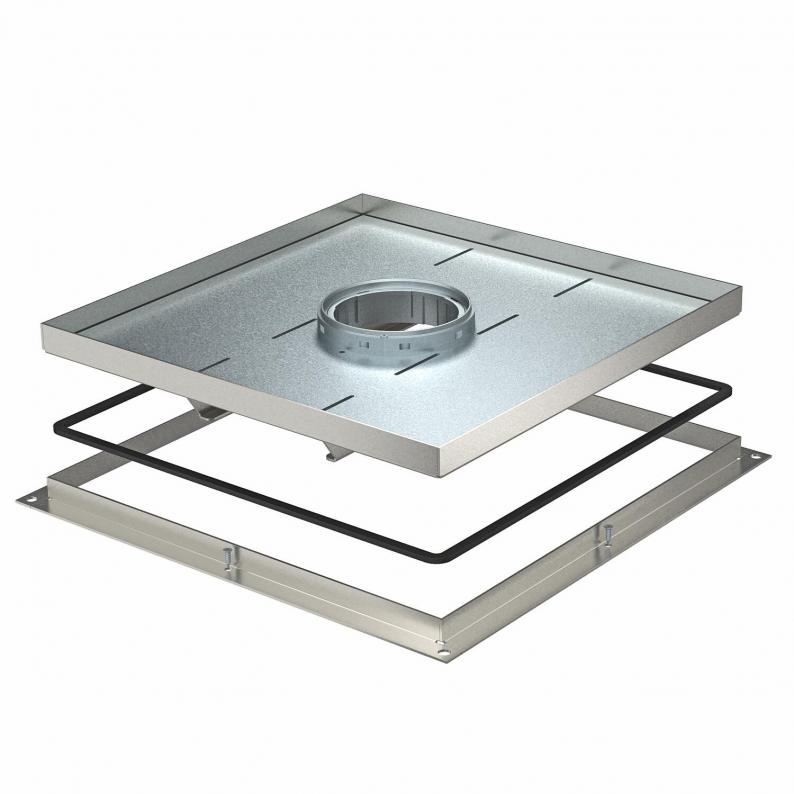

Heavy-duty frame cassette for tube body, RKFSL, nominal size 350-3
Trench Part No. RKF2 SL2 V3 25
|OBO Item No. 7409544
|EAN 4012195870128
Trench Part No.
OBO Item No.
Floor covering thickness
Dimension h
Smallest selling unit: 1 piece
1piece
piece
Description
Heavy-duty frame cassette for tube body for the installation of accessories in the UZD350-3in dry or wet-care floors in interior areas Load class 2 to 20 kN. The tube body is not contained in the scope of delivery.
Frame cassette, heavy duty, for tube bodies, for the installation of accessories in the underfloor box UZD350-3 in dry- or wet-cleaned floors in indoor areas. Load class 2 to 20 kN. The tube body is not included in the scope of delivery.
Heavy-duty frame cassette, 4-compartment Up to 4 cover plates APMT5 can be installed.
Frame cassette, heavy duty, for tube bodies, for the installation of accessories in the underfloor box UZD350-3 in dry- or wet-cleaned floors in indoor areas. Load class 2 to 20 kN. The tube body is not included in the scope of delivery.
Heavy-duty frame cassette, 4-compartment Up to 4 cover plates APMT5 can be installed.
Technical data

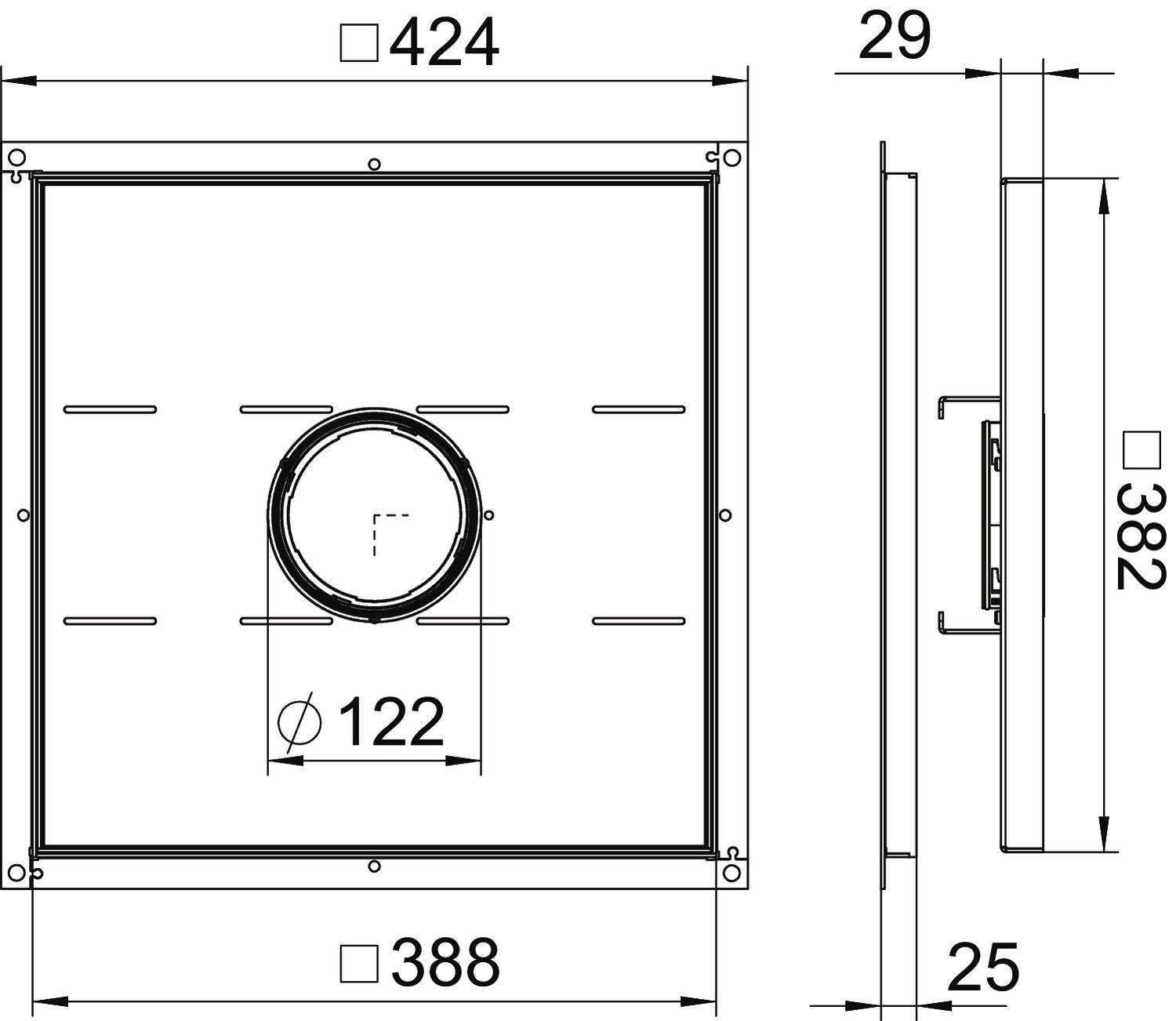

Dimensions
| Dimension A | 424 mm |
|---|---|
| Dimension B | 388 mm |
| Dimension C | 382 mm |
| Dimension h | 25 mm |
Technical data
| Floor covering thickness | 19 mm |
|---|---|
| Length of installation dimensions | 390 mm |
| Wide installation dimensions | 390 mm |
| Suitable for cavity floor installation | yes |
| Suitable for raised floor installation | yes |
| Floor care | Wet |
| Cable outlet version | Lowerable tube body |
| Number of cable outlets | 1 |
| Protection rating IK code | IK10 |
| Heavy load class | 20 kN (OBO SL2) |
| Heavy-duty version | yes |
| Protection rating (IP) when used | IP20 |
| Protection rating (IP) when unused | IP44 |
| ROHS-conformant | yes |
| Dimension | 383x383x25 |
| Material | Stainless steel 1.4301 |
| Product series | RKF |
Environmental Data
53,948 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 53,948 kg CO2e / 1 Piece |
|---|---|
| CO₂ Footprint (GWP) | 53948 kg CO₂e |
| Determination date of CO2 value | 2025-05-14T00:00:00.000+0200 |
| Declared Unit | Units |
| Declared Unit Quantity | 1 |
Downloads
0 selected
Data sheet (1)
Declarations (3)
Product images (2)
3D data downloads (1)
Tender specifications (1)
Variants
Trench Part No.
Floor covering thickness
Dimension h
OBO Item No.
RKF2 SL2 V3 25
19
25
7409544
RKF2 SL2 V3 30
24
30
7409546
Floor covering thickness
Dimension h
RKF2 SL2 V3 25
OBO Item No.
7409544
Floor covering thickness
19
Dimension h
25
RKF2 SL2 V3 30
OBO Item No.
7409546
Floor covering thickness
24
Dimension h
30
