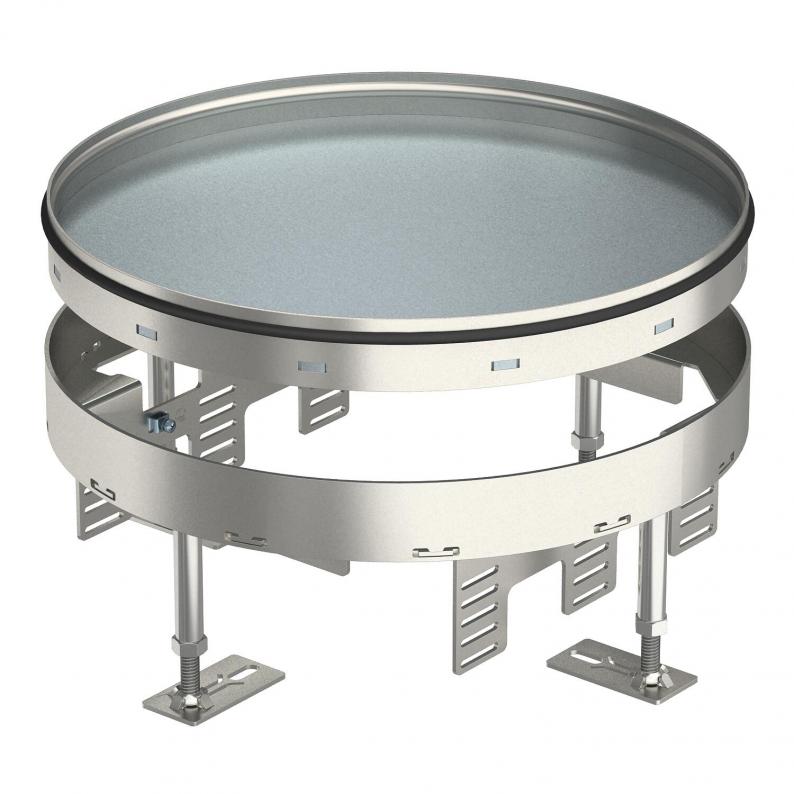

Height-adjustable cassette for inspection opening, RKR, stainless steel
Trench Part No. RKR2 9V 20
|OBO Item No. 7409128
|EAN 4012195868446
Trench Part No.
RKR2 9V 20
OBO Item No.
7409128
Floor height, max.
155 mm
Floor height, min.
105 mm
Floor covering thickness
20 mm
Nominal size for device installation units
R9
Smallest selling unit: 1 piece
1piece
piece
Description
Height-adjustable "blank" cassette for the creation of an inspection opening of nominal size R9 in dry or wet-cleaned floors for indoor use. Only suitable for smooth floor coverings.
Height-adjustable cassette as a blind cassette, 3-compartment. 3 APMT5 cover plates can be installed. For the installation of 3 UT4 universal supports for 9 individual installation devices with support ring/support clamp or 12 Modul 45 devices.
Height-adjustable cassette as a blanking cassette, 3-compartment.
Height-adjustable cassette as a blind cassette, 3-compartment. 3 APMT5 cover plates can be installed. For the installation of 3 UT4 universal supports for 9 individual installation devices with support ring/support clamp or 12 Modul 45 devices.
Height-adjustable cassette as a blanking cassette, 3-compartment.
Technical data

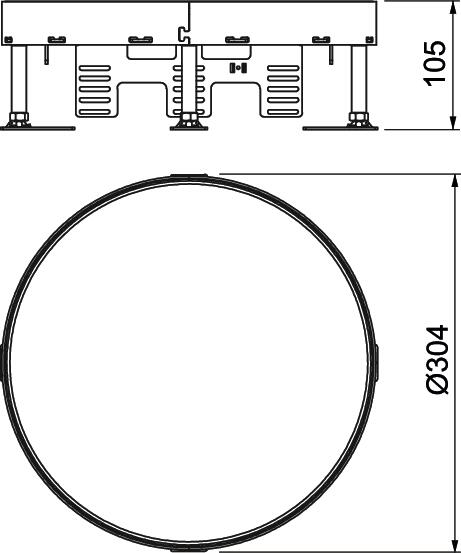

Dimensions
| Length | 304 mm |
|---|---|
| Width | 304 mm |
Technical data
| Floor height, max. | 155 mm |
|---|---|
| Floor height, min. | 105 mm |
| Floor covering thickness | 20 mm |
| Height-adjustment range, max. | 155 mm |
| Height-adjustment range, min. | 105 mm |
| Number of installable devices | 0 |
| Decouplable | no |
| Installation diameter | 305 |
| Suitable for cavity floor installation | yes |
| Suitable for raised floor installation | yes |
| Floor care | Wet |
| Number of mounting boxes | 3 |
| Installation depth | 105 mm |
| Cable outlet version | No cable outlet |
| Number of cable outlets | 0 |
| Device support to accept mounting boxes | no |
| Protection rating IK code | IK10 |
| Installation system type | UT4 |
| Heavy-duty version | no |
| Nominal size for device installation units | R9 |
| Approvals | VDE |
| Protection rating (IP) when used | IP00 |
| Protection rating (IP) when unused | IP44 |
| Vertical load, small area | to 3,000 N |
| Vertical load, large area | to 5,000 N |
| Version for | Round |
| Dimension | Ø305mm |
| Material | Stainless steel 1.4301 |
Environmental Data
17,6663 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 17,6663 kg CO2e / 1 Piece |
|---|
