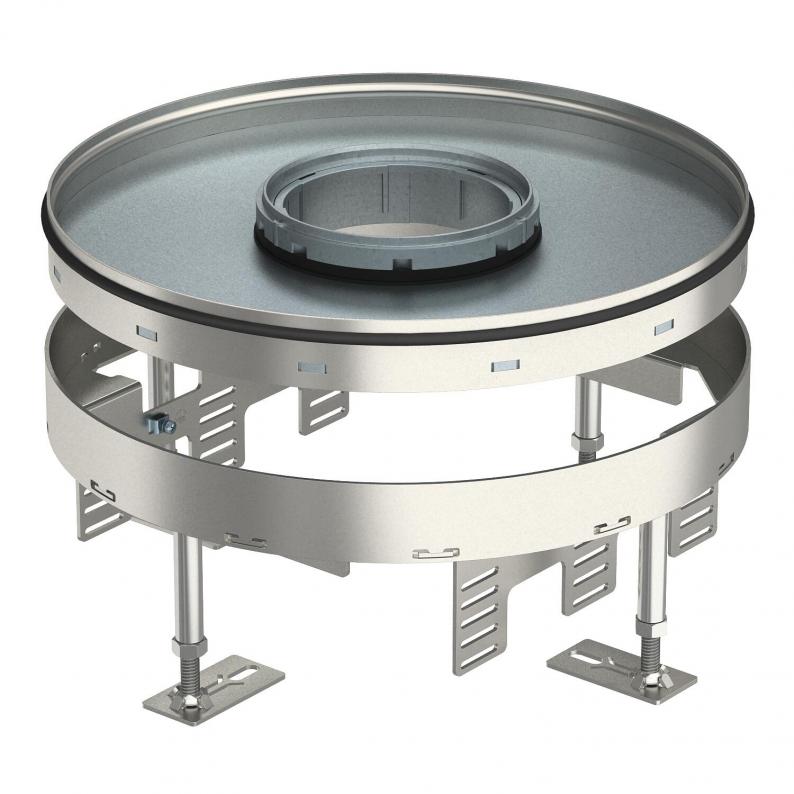

Height-adjustable cassette for tube body, RKFR, stainless steel
Trench Part No. RKFR2 9 V20
|OBO Item No. 7409430
|EAN 4012195869528
Trench Part No.
RKFR2 9 V20
OBO Item No.
7409430
Floor height, max.
155 mm
Floor height, min.
110 mm
Floor covering thickness
20 mm
Nominal size for device installation units
R9
Smallest selling unit: 1 piece
1piece
piece
Description
Height-adjustable cassette of nominal size R9 for tube body for installation of accessories in dry or wet-cleaned floors for indoor use.
Height-adjustable cassette for tube body, 3-compartment. 3 APMT5 cover plates can be installed. For the installation of three UT4 universal supports for nine single accessories with support ring/support clamp or 12 Modul 45 devices. The tube body is not contained in the scope of delivery.
Height-adjustable round cassette, 3-compartment, for tube bodies of nominal size 9 for the intallation of accessories. Cassette for the use in trunking systems and in raised and cavity floors in dry- or wet-cleaned floors in indoor areas.
Suitable only for smooth floor coverings.
Three cover plates APMT5 can be installed.
Height-adjustable cassette for tube body, 3-compartment. 3 APMT5 cover plates can be installed. For the installation of three UT4 universal supports for nine single accessories with support ring/support clamp or 12 Modul 45 devices. The tube body is not contained in the scope of delivery.
Height-adjustable round cassette, 3-compartment, for tube bodies of nominal size 9 for the intallation of accessories. Cassette for the use in trunking systems and in raised and cavity floors in dry- or wet-cleaned floors in indoor areas.
Suitable only for smooth floor coverings.
Three cover plates APMT5 can be installed.
Technical data
Dimensions
| Length | 304 mm |
|---|---|
| Width | 304 mm |
Technical data
| Floor height, max. | 155 mm |
|---|---|
| Floor height, min. | 110 mm |
| Floor covering thickness | 20 mm |
| Height-adjustment range, max. | 155 mm |
| Height-adjustment range, min. | 110 mm |
| Number of installable devices | 12 |
| Decouplable | no |
| Installation diameter | 305 |
| Suitable for cavity floor installation | yes |
| Suitable for raised floor installation | yes |
| Floor care | Wet |
| Number of mounting boxes | 3 |
| Installation depth | 110 mm |
| Cable outlet version | Lowerable tube body |
| Number of cable outlets | 1 |
| Device support to accept mounting boxes | yes |
| Protection rating IK code | IK10 |
| Installation system type | UT4 |
| Heavy-duty version | no |
| Nominal size for device installation units | R9 |
| Approvals | VDE |
| Protection rating (IP) when used | IP20 |
| Protection rating (IP) when unused | IP44 |
| Vertical load, small area | to 3,000 N |
| Vertical load, large area | to 5,000 N |
| Version for | Round |
| Dimension | Ø305mm |
| Material | Stainless steel 1.4301 |
Environmental Data
19,5393 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 19,5393 kg CO2e / 1 Piece |
|---|
