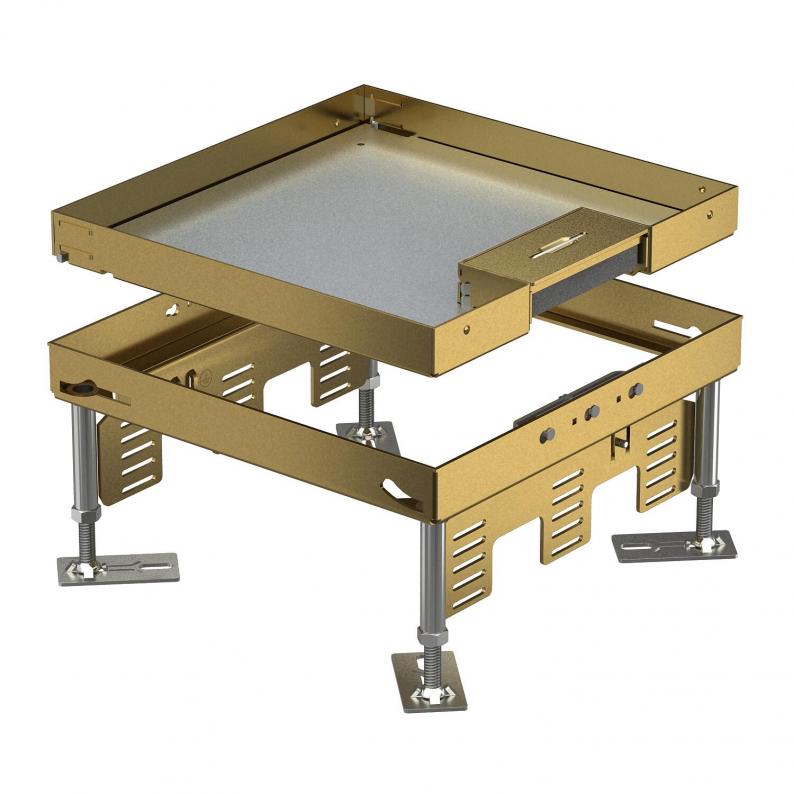

Height-adjustable cassette with cord outlet, RKSN, brass
Trench Part No. RKSN2 9 MS 20
|OBO Item No. 7409212
|EAN 4012195867173
Trench Part No.
RKSN2 9 MS 20
OBO Item No.
7409212
Floor height, max.
150 mm
Floor height, min.
105 mm
Floor covering thickness
20 mm
Cable outlet version
Swivellable cord outlet
Nominal size for device installation units
9
Dimension h
105 mm
Smallest selling unit: 1 piece
1piece
piece
Description
Height-adjustable cassette of nominal size 9 with cord outlet, for the installation of accessories in dry-cleaned floors indoors.
For the installation of 3 UT4 universal supports for 9 individual installation devices with support ring/support clamp or 6 Modul 45® devices.
Height-adjustable square cassette, 3-compartment, with cord outlet of nominal size 9 for the installation of accessories. Suitable for the use in trunking systems, raised and cavity floors in dry- and wet-cleaned floors in indoor areas. Three cover plates APMT5 can be installed. Suitable only for smooth floor coverings.
For the installation of 3 UT4 universal supports for 9 individual installation devices with support ring/support clamp or 6 Modul 45® devices.
Height-adjustable square cassette, 3-compartment, with cord outlet of nominal size 9 for the installation of accessories. Suitable for the use in trunking systems, raised and cavity floors in dry- and wet-cleaned floors in indoor areas. Three cover plates APMT5 can be installed. Suitable only for smooth floor coverings.
Technical data
Technical data
| Floor height, max. | 150 mm |
|---|---|
| Floor height, min. | 105 mm |
| Floor covering thickness | 20 mm |
| Height-adjustment range, max. | 150 mm |
| Height-adjustment range, min. | 105 mm |
| Number of installable devices | 12 |
| Decouplable | no |
| Length of installation dimensions | 244 mm |
| Wide installation dimensions | 244 mm |
| Suitable for cavity floor installation | yes |
| Suitable for raised floor installation | yes |
| Floor care | Dry |
| Number of mounting boxes | 3 |
| Installation depth | 105 mm |
| Cable outlet version | Swivellable cord outlet |
| Number of cable outlets | 1 |
| Device support to accept mounting boxes | yes |
| Protection rating IK code | IK10 |
| Installation system type | UT4 |
| Heavy-duty version | no |
| Nominal size for device installation units | 9 |
| Approvals | VDE |
| Nominal size | 350 mm |
| Protection rating (IP) when used | IP20 |
| Protection rating (IP) when unused | IP40 |
| Vertical load, small area | to 3,000 N |
| Vertical load, large area | to 5,000 N |
| Version for | Square |
| Dimension | 243x243mm |
| Material | Brass |

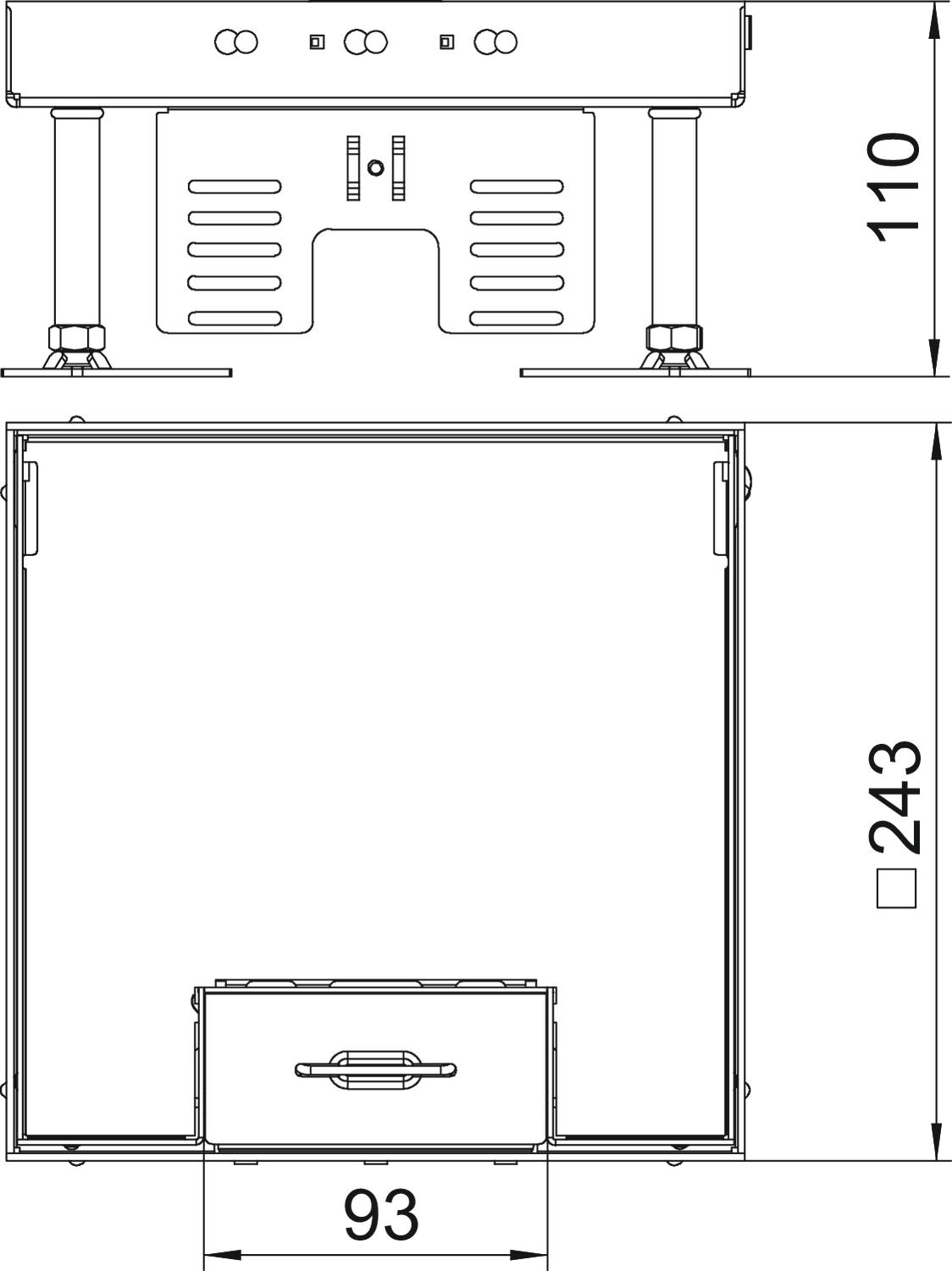

Dimensions
| Dimension h | 105 mm |
|---|
Environmental Data
14,0497 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 14,0497 kg CO2e / 1 Piece |
|---|
