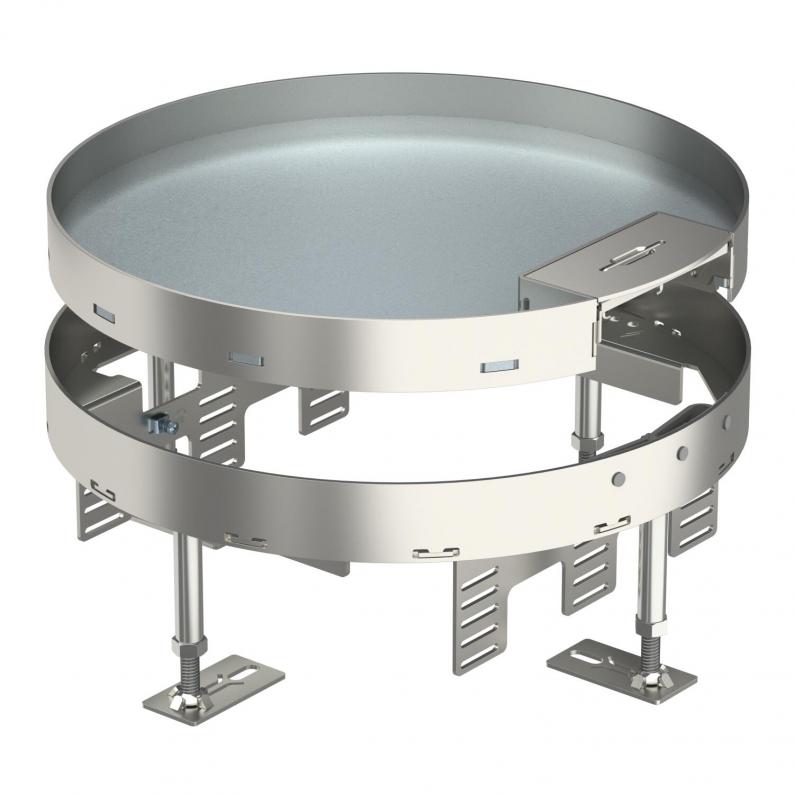

Height-adjustable cassette with cord outlet, RKSR, stainless steel
Trench Part No. RKS2 R9 V20
|OBO Item No. 7409278
|EAN 4012195867586
Trench Part No.
RKS2 R9 V20
OBO Item No.
7409278
Floor height, max.
155 mm
Floor height, min.
110 mm
Floor covering thickness
20 mm
Nominal size for device installation units
R9
Smallest selling unit: 1 piece
1piece
piece
Description
Height-adjustable cassette of nominal size R9 with cord outlet for installation of accessories in dry-care floors for indoor use.
Height-adjustable cassette for cord outlet, 3-compartment. 3 APMT5 cover plates can be installed. For the installation of 3 UT4 universal supports for 6 individual installation devices with support ring/support clamp of 6 Modul 45 devices.
Height-adjustable round cassette, 3-compartment, with cord outlet of nominal size 9 for the installation of accessories. Cassette suitable for the use in trunking systems, raised and cavity floors in dry- and wet-cleanded floors in indoor areas. Suitable only for smooth floor coverings.
Three cover plates APMT5 can be installed.
Height-adjustable cassette for cord outlet, 3-compartment. 3 APMT5 cover plates can be installed. For the installation of 3 UT4 universal supports for 6 individual installation devices with support ring/support clamp of 6 Modul 45 devices.
Height-adjustable round cassette, 3-compartment, with cord outlet of nominal size 9 for the installation of accessories. Cassette suitable for the use in trunking systems, raised and cavity floors in dry- and wet-cleanded floors in indoor areas. Suitable only for smooth floor coverings.
Three cover plates APMT5 can be installed.
Technical data

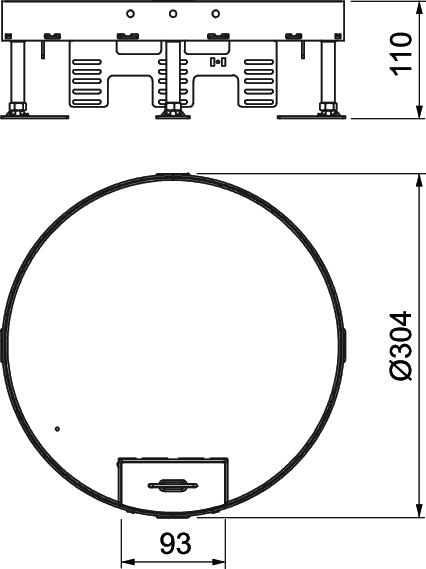

Dimensions
| Length | 304 mm |
|---|---|
| Width | 304 mm |
Technical data
| Floor height, max. | 155 mm |
|---|---|
| Floor height, min. | 110 mm |
| Floor covering thickness | 20 mm |
| Height-adjustment range, max. | 155 mm |
| Height-adjustment range, min. | 110 mm |
| Number of installable devices | 12 |
| Decouplable | no |
| Installation diameter | 305 |
| Suitable for cavity floor installation | yes |
| Suitable for raised floor installation | yes |
| Floor care | Dry |
| Number of mounting boxes | 3 |
| Installation depth | 110 mm |
| Cable outlet version | Swivellable cord outlet |
| Number of cable outlets | 1 |
| Device support to accept mounting boxes | yes |
| Protection rating IK code | IK10 |
| Installation system type | UT4 |
| Heavy-duty version | no |
| Nominal size for device installation units | R9 |
| Approvals | VDE |
| Protection rating (IP) when used | IP20 |
| Protection rating (IP) when unused | IP40 |
| Vertical load, small area | to 3,000 N |
| Vertical load, large area | to 5,000 N |
| Version for | Round |
| Dimension | Ø305mm |
| Material | Stainless steel 1.4301 |
Environmental Data
18,4172 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 18,4172 kg CO2e / 1 Piece |
|---|
