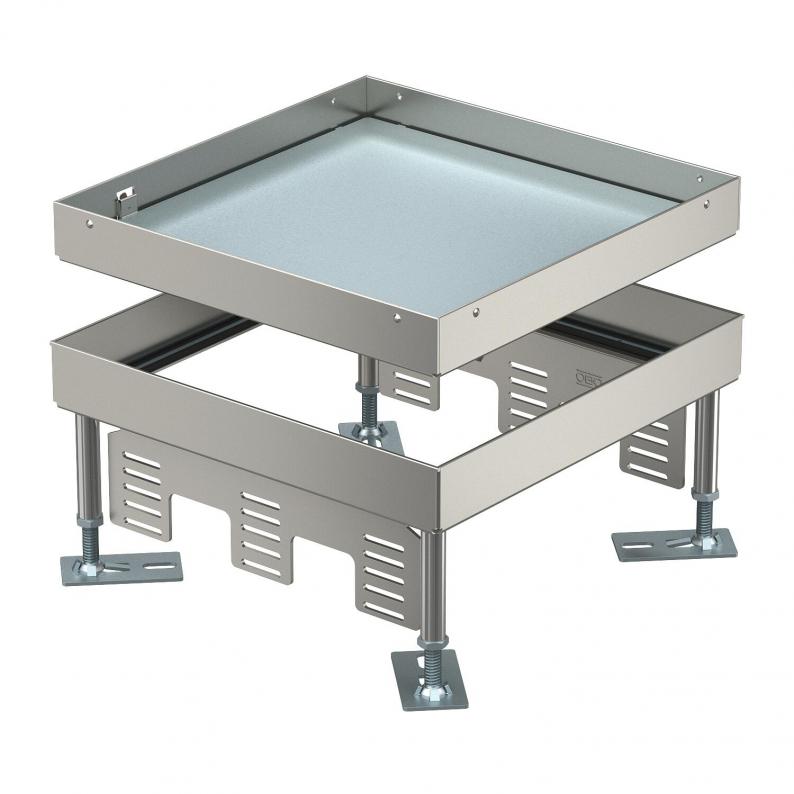

Height-adjustable heavy-duty cassette, blank, RKNSL, nominal size 9, stainless steel
Trench Part No. RKN3 9 V SL1 21
|OBO Item No. 7408934
|EAN 4012197278281
Trench Part No.
OBO Item No.
Floor height, max.
Floor height, min.
Floor covering thickness
Dimension h
Smallest selling unit: 1 piece
1piece
piece
Description
"Blank" height-adjustable cassette of nominal size 9 for the creation of an inspection opening. Installation in duct systems, raised and cavity floors in interior dry or wet-care floors. Load class 1 to 10 kN. Only suitable for smooth floor coverings.
For the installation of three UT4 universal supports for nine single devices with support ring/support clamp or 12 Modul 45® devices. 3 APMT5 cover plates can be installed.
For the installation of three UT4 universal supports for nine single devices with support ring/support clamp or 12 Modul 45® devices. 3 APMT5 cover plates can be installed.
Technical data

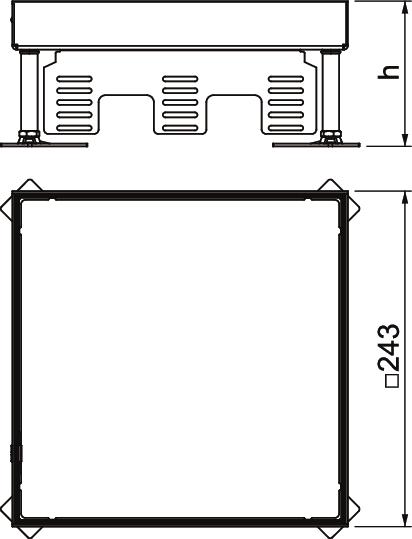

Dimensions
| Length | 243 mm |
|---|---|
| Width | 243 mm |
| Height | 110 mm |
| Dimension h | 110 mm |
Technical data
| Floor height, max. | 155 mm |
|---|---|
| Floor height, min. | 110 mm |
| Floor covering thickness | 21 mm |
| Height-adjustment range, max. | 155 mm |
| Height-adjustment range, min. | 110 mm |
| Number of installable devices | 0 |
| Decouplable | no |
| Length of installation dimensions | 244 mm |
| Wide installation dimensions | 244 mm |
| Suitable for cavity floor installation | yes |
| Suitable for raised floor installation | yes |
| Floor care | Wet |
| Installation depth | 110 mm |
| Cable outlet version | No cable outlet |
| Number of cable outlets | 0 |
| Device support to accept mounting boxes | no |
| Protection rating IK code | IK10 |
| Heavy load class | 10 kN (OBO SL1) |
| Installation system type | UT4 |
| Heavy-duty version | yes |
| Nominal size for device installation units | 9 |
| Approvals | VDE |
| Standard | EN 50085-2-2 |
| Protection rating (IP) when used | IP00 |
| Protection rating (IP) when unused | IP55 |
| Number of universal supports | 3 x UT4 |
| Floor cut-out / Mounting opening | 244x244 |
| Version for | Square |
| Dimension | 243x243x105 |
| Material | Stainless steel |
Environmental Data
24,147 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 24,147 kg CO2e / 1 Piece |
|---|
