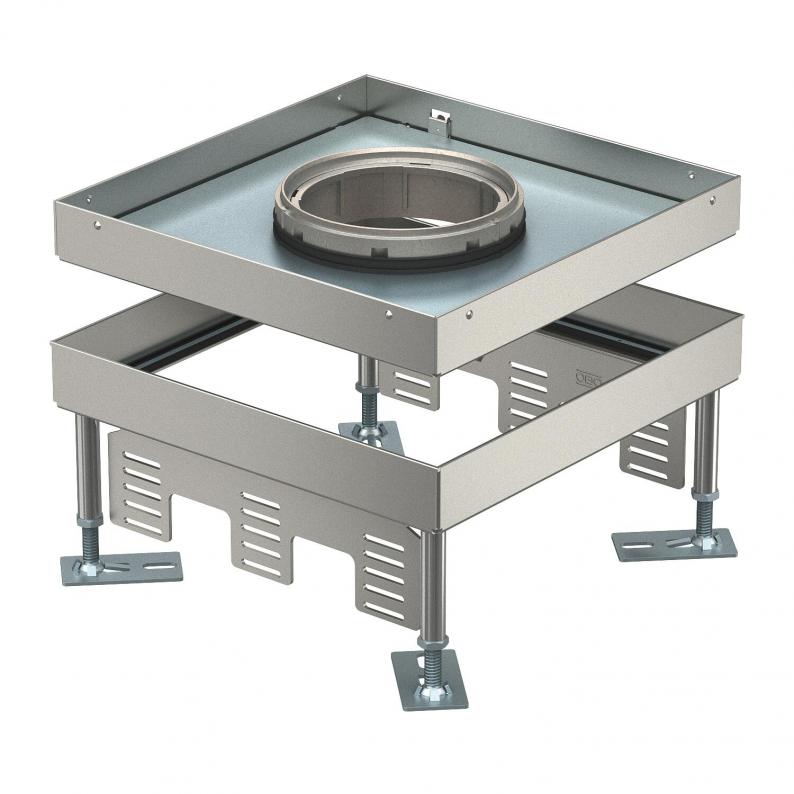

Height-adjustable heavy-duty cassette for tube body RKFNSL, nominal size 9, stainless steel
Trench Part No. RKFN3 9 V SL1 21
|OBO Item No. 7408940
|EAN 4012197278304
Trench Part No.
OBO Item No.
Floor height, max.
Floor height, min.
Floor covering thickness
Dimension h
Smallest selling unit: 1 piece
1piece
piece
Description
Height-adjustable heavy-duty cassette for tube bodies of nominal size 9 for the installation of devices in duct systems, raised and cavity floors in interior dry or wet-care floors. Load class 1 to 10 kN.
For the installation of three UT4 universal supports for nine single devices with support ring/support clamp or 12 Modul 45® devices. 3 APMT5 cover plates can be installed. The tube body is not contained in the scope of delivery.
Height-adjustable square cassette, heavy duty, of nominal size 9, for the installation of accessories in trunking systems, raised and cavity floor in dry- or wet-cleanded floors indoors. Load class 1 to 10 kN.
Height-adjustable heavy-duty cassette, 3-compartment Three cover plates APMT5 can be installed.
For the installation of three UT4 universal supports for nine single devices with support ring/support clamp or 12 Modul 45® devices. 3 APMT5 cover plates can be installed. The tube body is not contained in the scope of delivery.
Height-adjustable square cassette, heavy duty, of nominal size 9, for the installation of accessories in trunking systems, raised and cavity floor in dry- or wet-cleanded floors indoors. Load class 1 to 10 kN.
Height-adjustable heavy-duty cassette, 3-compartment Three cover plates APMT5 can be installed.
Technical data

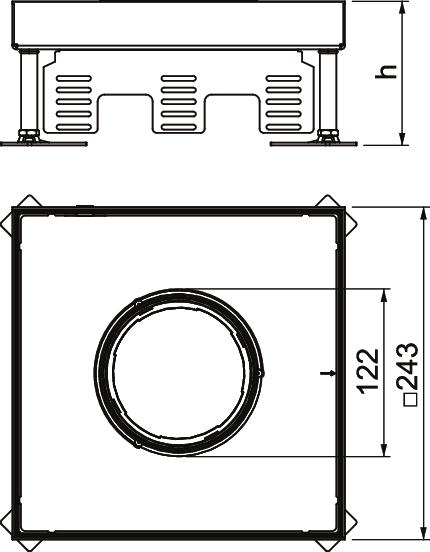

Dimensions
| Length | 243 mm |
|---|---|
| Width | 243 mm |
| Height | 110 mm |
| Dimension h | 110 mm |
Technical data
| Floor height, max. | 155 mm |
|---|---|
| Floor height, min. | 110 mm |
| Floor covering thickness | 21 mm |
| Height-adjustment range, max. | 155 mm |
| Height-adjustment range, min. | 110 mm |
| Number of installable devices | 12 |
| Decouplable | no |
| Length of installation dimensions | 244 mm |
| Wide installation dimensions | 244 mm |
| Suitable for cavity floor installation | yes |
| Suitable for raised floor installation | yes |
| Floor care | Wet |
| Installation depth | 110 mm |
| Cable outlet version | Lowerable tube body |
| Number of cable outlets | 1 |
| Device support to accept mounting boxes | no |
| Protection rating IK code | IK10 |
| Heavy load class | 10 kN (OBO SL1) |
| Installation system type | UT4 |
| Heavy-duty version | yes |
| Nominal size for device installation units | 9 |
| Approvals | VDE |
| Standard | EN 50085-2-2 |
| Protection rating (IP) when used | IP20 |
| Protection rating (IP) when unused | IP55 |
| Number of universal supports | 3 x UT4 |
| Floor cut-out / Mounting opening | 244x244 |
| Version for | Square |
| Dimension | 243x243x105 |
| Material | Stainless steel |
Environmental Data
25,9866 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 25,9866 kg CO2e / 1 Piece |
|---|
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (3)
Certificates (1)
Instructions and Aid (1)
Product images (2)
Tender specifications (1)
Variants
Trench Part No.
Floor height, max.
Floor height, min.
Floor covering thickness
Nominal size for device installation units
Dimension h
Protection rating (IP) when unused
OBO Item No.
RKFN3 9 V SL1 16
150
105
16
9
105
IP55
7408938
RKFN3 9 V SL1 21
155
110
21
9
110
IP55
7408940
Floor height, max.
Floor height, min.
Floor covering thickness
Dimension h
RKFN3 9 V SL1 16
OBO Item No.
7408938
Floor height, max.
150
Floor height, min.
105
Floor covering thickness
16
Nominal size for device installation units
9
Dimension h
105
Protection rating (IP) when unused
IP55
RKFN3 9 V SL1 21
OBO Item No.
7408940
Floor height, max.
155
Floor height, min.
110
Floor covering thickness
21
Nominal size for device installation units
9
Dimension h
110
Protection rating (IP) when unused
IP55
