Height adjustment bracket for installation in UGD350-3 for one round cassette
Trench Part No. NW 350-3 RK
|OBO Item No. 7410556
|EAN 4012195432784
Trench Part No.
NW 350-3 RK
OBO Item No.
7410556
Smallest selling unit: 1 piece
1piece
piece
Description
Height adjustment bracket to mount the round height-adjustable cassettes in the underfloor box, type UGD350-3.
With all the components necessary for mounting and height adjustment.
Height-adjustment bracket for mounting round, height-adjustable cassettes in the underfloor connection box of type UGD350-3.
The set includes all required components for mounting a round cassette of nominal size 9.
With all the components necessary for mounting and height adjustment.
Height-adjustment bracket for mounting round, height-adjustable cassettes in the underfloor connection box of type UGD350-3.
The set includes all required components for mounting a round cassette of nominal size 9.
Technical data
Technical data
| Decouplable | yes |
|---|---|
| Suitable for cavity floor installation | no |
| Suitable for raised floor installation | no |
| Heavy-duty version | no |
| Approvals | VDE |
| Version for | Round |
| Surface | Strip galvanized |
| Material | Steel |

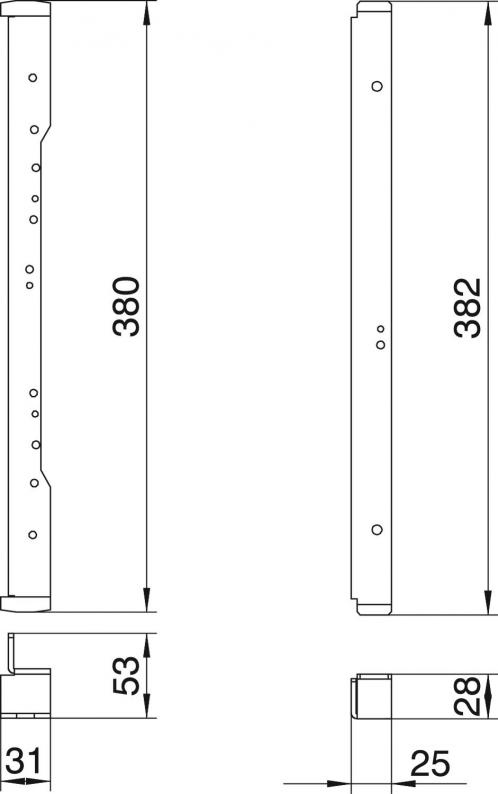

Dimensions
| Dimension h | 94 mm |
|---|
Environmental Data
5,9694 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 5,9694 kg CO2e / 1 Piece |
|---|
