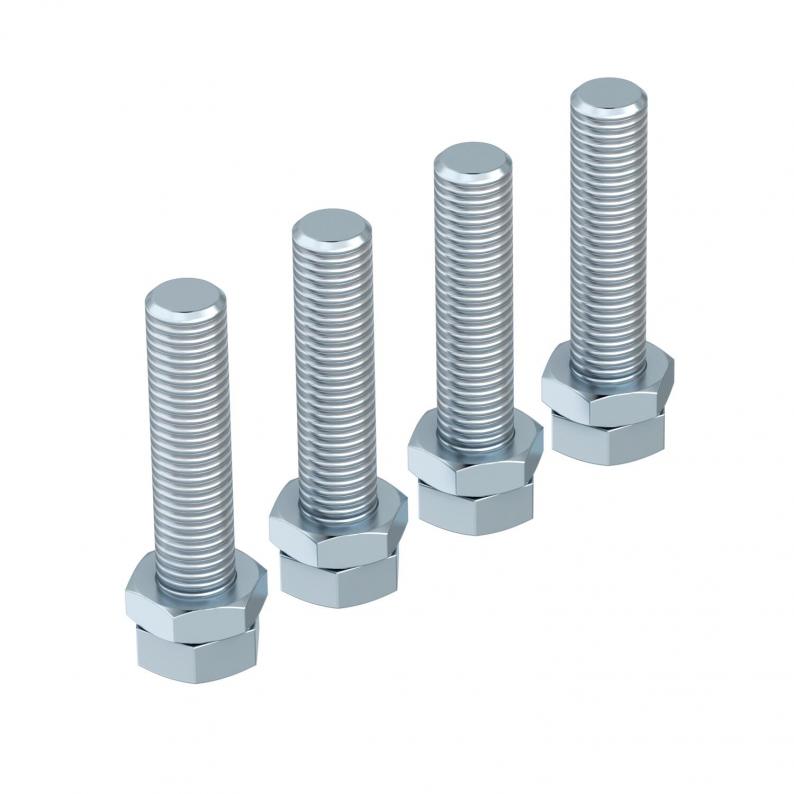

Height adjustment unit for heavy-duty mounting lid

Height adjustment unit for heavy-duty mounting lid

Trench Part No. DUG SL105
|
OBO Item No. 7409682
|
EAN 4012196539086
Show all variants
Trench Part No.
OBO Item No.
Width
Screed height, max.
Screed height, min.

Smallest selling unit: 1 PU

PU

Description

The height adjustment units rated for increased load requirements permit the screed-flush height adjustment of the heavy-duty mounting lid and are to be ordered separately.

Technical data

Dimensions

Length98 mm
Width19 mm
Height19 mm
Dimension L90 mm

Technical data

Screed height, max.140 mm
Screed height, min.105 mm
Heavy-duty versionyes
Dimension105/140
SurfaceElectrogalvanized
MaterialSteel

Environmental Data

0,9015 kg CO2e / 4 PieceCO2 Footprint (GWP) Cradle-to-Gate
CO2 Footprint (GWP) Cradle-to-Gate0,9015 kg CO2e / 4 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (1)
Declarations (3)
Instructions and Aid (2)
Product images (2)
Tender specifications (1)

Variants

Screed height, max.
Screed height, min.
DUG SL105
OBO Item No.
7409682
Width
19
Screed height, max.
140
Screed height, min.
105
DUG SL135
OBO Item No.
7409684
Width
19
Screed height, max.
170
Screed height, min.
135
