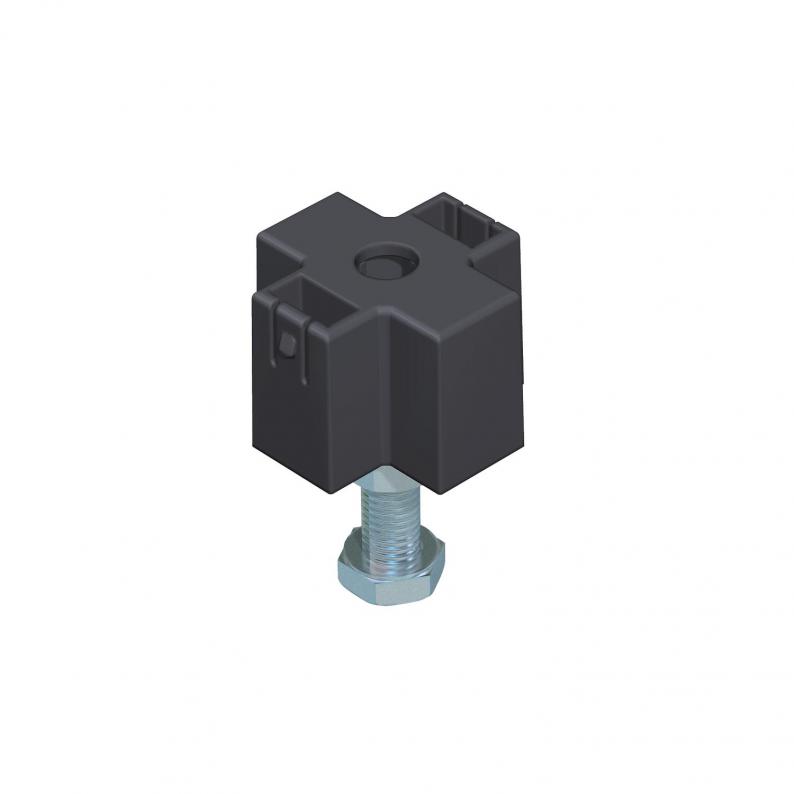

Height adjustment unit for lid butt support, trunking height 40-70 mm
Trench Part No. NE DSU2 4030
|OBO Item No. 7424840
|EAN 4012195245117
Trench Part No.
NE DSU2 4030
OBO Item No.
7424840
Height-adjustment range, max.
70 mm
Height-adjustment range, min.
40 mm
Smallest selling unit: 3 piece
3piece
piece
Description
For central support of a lid butt support of nominal width 400, 500 or 600.
Technical data

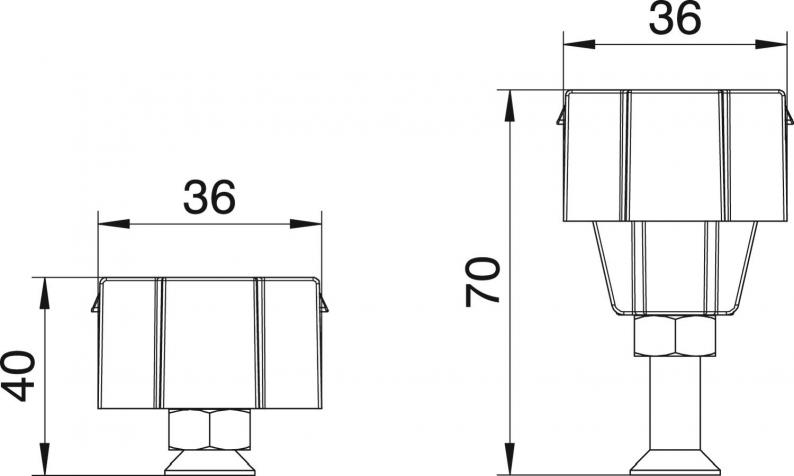

Dimensions
| Width | 35 mm |
|---|
Technical data
| Height-adjustment range, max. | 70 mm |
|---|---|
| Height-adjustment range, min. | 40 mm |
| Minimum screed height | 40 |
| Suitable for screed-flush closed underfloor ducts | no |
| Decouplable | no |
| Device support to accept mounting boxes | no |
| Trunking height, max. | 70 mm |
| Duct height, min. | 40 mm |
| Surface | Strip galvanized |
| Material | Steel |
| Accessories | yes |
| Spare part | no |
Environmental Data
0,1354 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 0,1354 kg CO2e / 1 Piece |
|---|
