Height adjustment unit RKNEV2
Trench Part No. RK NEV2 70
|OBO Item No. 7405814
|EAN 4012195891185
Trench Part No.
OBO Item No.
Height-adjustment range, max.
Height-adjustment range, min.
Smallest selling unit: 1 PU
1PU
PU
Description

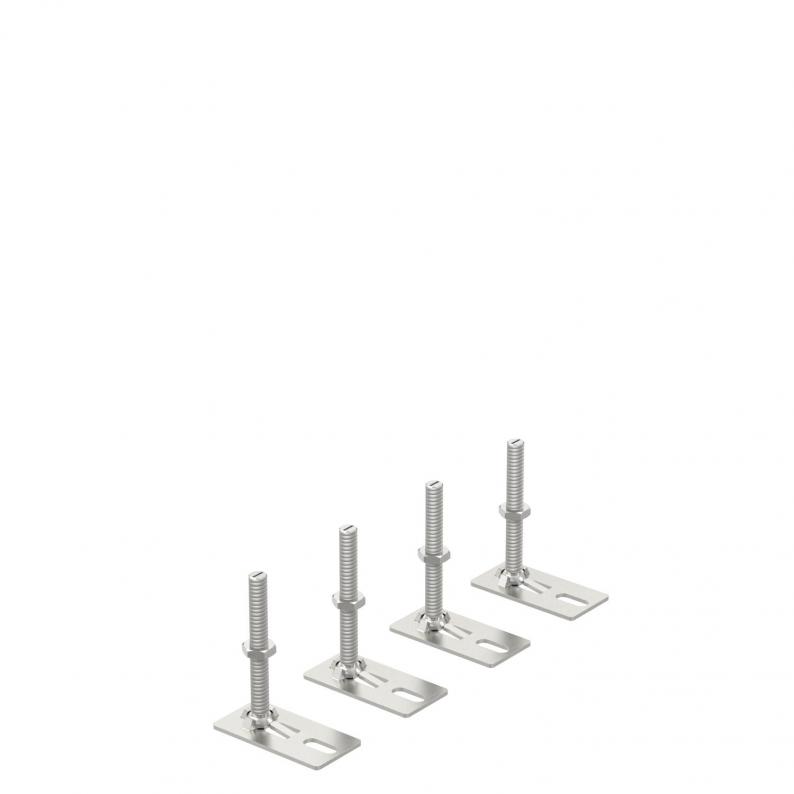

For flushfloor height adjustment of the height adjustable cassette units and the OKB screed-flush trunking system. The VPE consists of 4 height adjustment units.
Technical data
Technical data
| Height-adjustment range, max. | 150 mm |
|---|---|
| Height-adjustment range, min. | 100 mm |
| Dimension | M8x70mm |
| Surface | Electrogalvanized |
| Material | Steel |
| Suitable for ducts and trunking | yes |
| Suitable for cassettes | yes |
| With footfall sound insulation | no |
| Material of the foot | Metal |

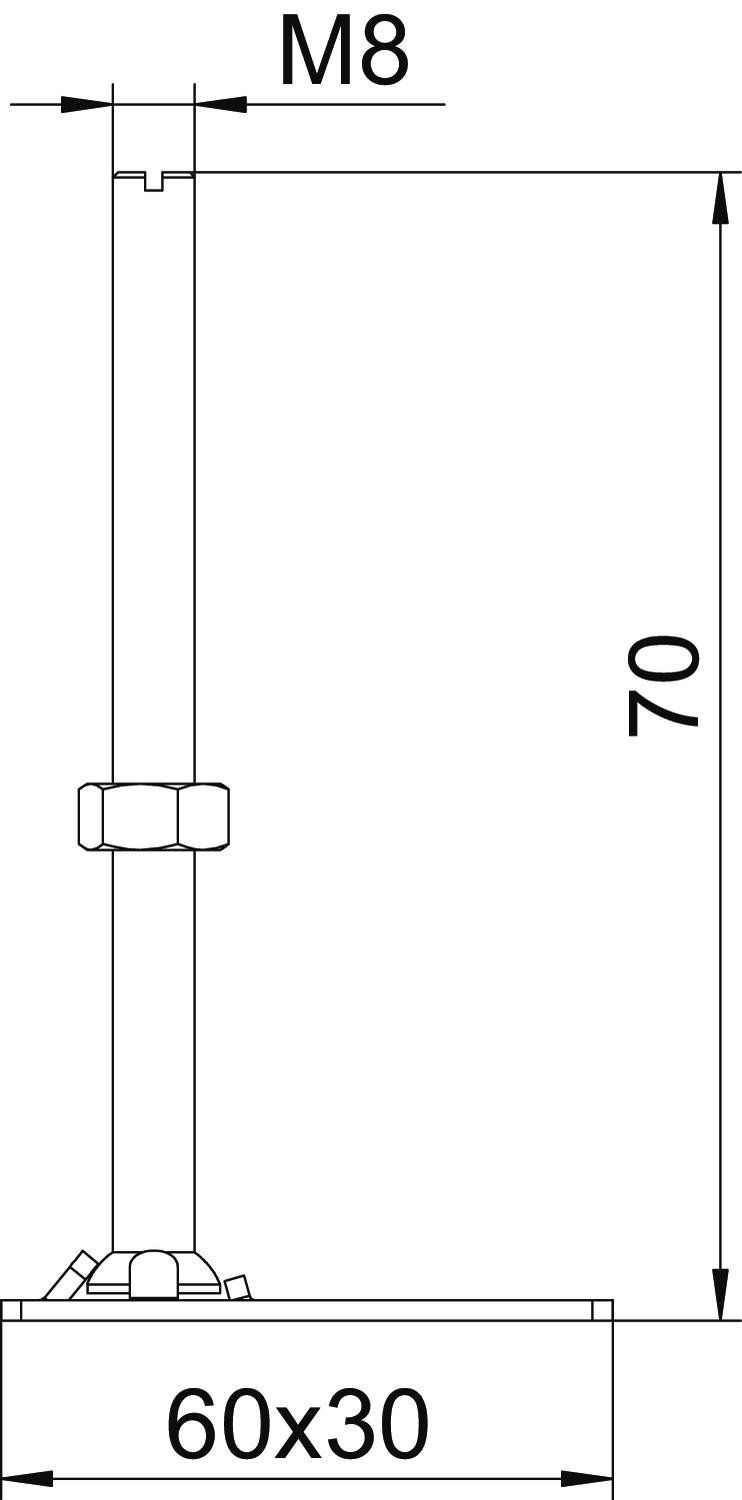

Dimensions
| Dimension h | 70 mm |
|---|
Environmental Data
0,5316 kg CO2e / 4 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 0,5316 kg CO2e / 4 Piece |
|---|
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (3)
Declarations (4)
Certificates (1)
Instructions and Aid (1)
Product images (2)
Tender specifications (1)
Variants
Trench Part No.
Height-adjustment range, max.
Height-adjustment range, min.
OBO Item No.
RK NEV2 70
150
100
7405814
RK NEV2 110
190
140
7405815
RK NEV2 150
230
180
7405816
RK NEV2 190
270
220
7405817
RK NEV2 230
310
260
7405818
RK NEV2 270
355
300
7405819
Height-adjustment range, max.
Height-adjustment range, min.
RK NEV2 70
OBO Item No.
7405814
Height-adjustment range, max.
150
Height-adjustment range, min.
100
RK NEV2 110
OBO Item No.
7405815
Height-adjustment range, max.
190
Height-adjustment range, min.
140
RK NEV2 150
OBO Item No.
7405816
Height-adjustment range, max.
230
Height-adjustment range, min.
180
RK NEV2 190
OBO Item No.
7405817
Height-adjustment range, max.
270
Height-adjustment range, min.
220
RK NEV2 230
OBO Item No.
7405818
Height-adjustment range, max.
310
Height-adjustment range, min.
260
RK NEV2 270
OBO Item No.
7405819
Height-adjustment range, max.
355
Height-adjustment range, min.
300
