Height-compensation kit ASH 350-4 320
Trench Part No. ASH 350-4 320
|OBO Item No. 7410140
|EAN 4012197364946
Trench Part No.
ASH 350-4 320
OBO Item No.
7410140
Screed height, max.
320 mm
Screed height, min.
240 mm
Smallest selling unit: 1 PU
1PU
PU
Description

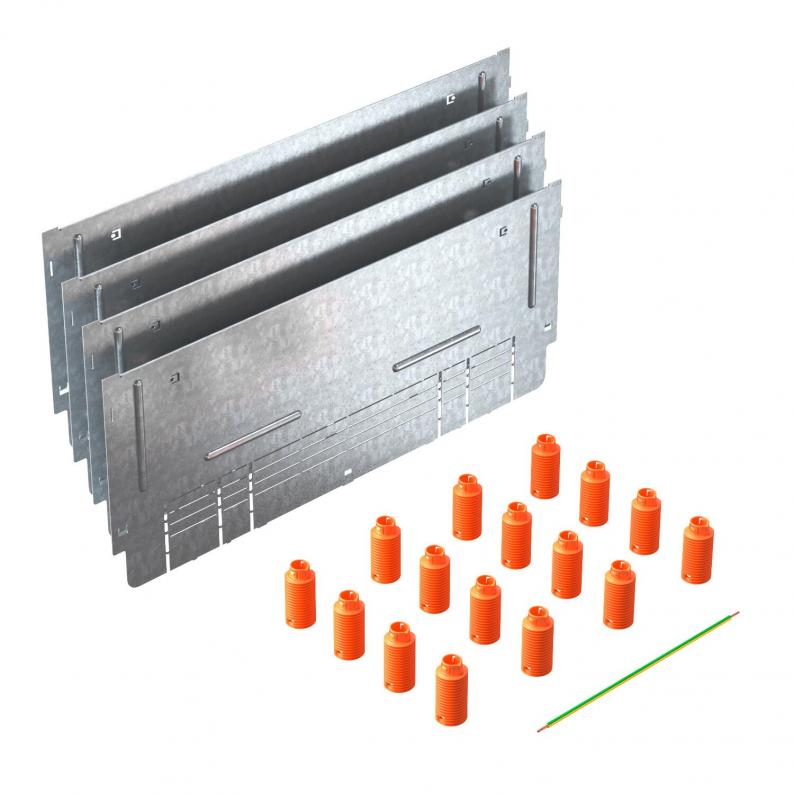

Height-compensation kit for UZD350-4 underfloor boxes with a construction height of 240 to 320 mm for construction-side raising of the UZD.
Technical data

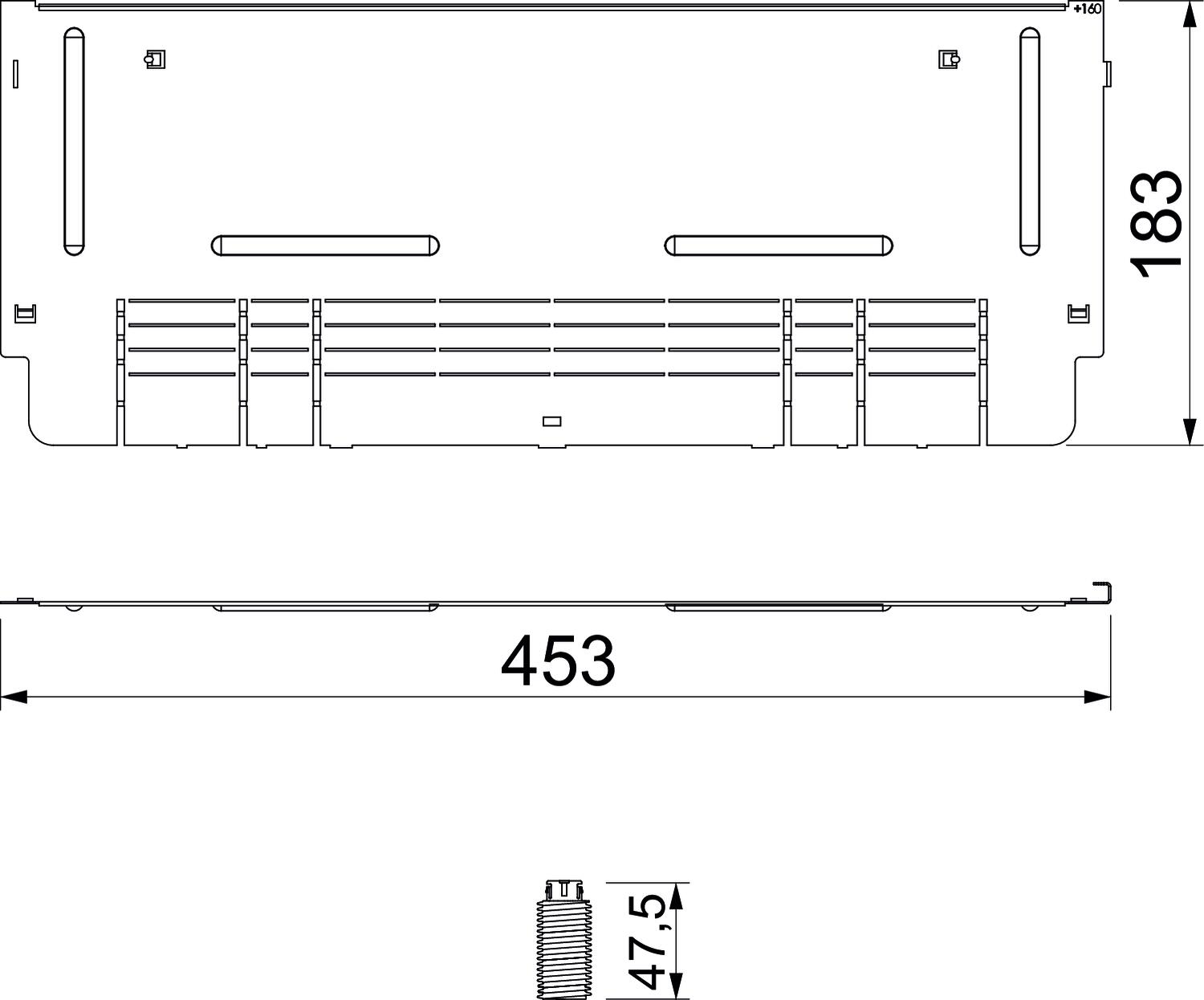

Dimensions
| Length | 453 mm |
|---|---|
| Width | 183 mm |
| Dimension A | 453 mm |
| Dimension B | 183 mm |
| Dimension l | 475 mm |
Technical data
| Screed height, max. | 320 mm |
|---|---|
| Screed height, min. | 240 mm |
| Height-adjustment range, max. | 320 mm |
| Height-adjustment range, min. | 240 mm |
| Minimum screed height | 240 |
| Suitable for screed-covered underfloor ducts | yes |
| Suitable for screed-flush closed underfloor ducts | no |
| Trunking width, max. | 350 mm |
| Trunking width, min. | 190 mm |
| Installation opening for on-floor tank | no |
| Seal installation option | no |
| Decouplable | no |
| Floor plate | no |
| Suitable for underfloor ducts | no |
| Suitable for cavity floor installation | no |
| Suitable for raised floor installation | no |
| Lowerable to be flush-floor | no |
| For pipe connection | no |
| Version for | Square |
| Dimension | 453x183x46 |
| Surface | Strip galvanized |
| Material | Steel |
Environmental Data
6,688 kg CO2e / 4 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 6,688 kg CO2e / 4 Piece |
|---|
