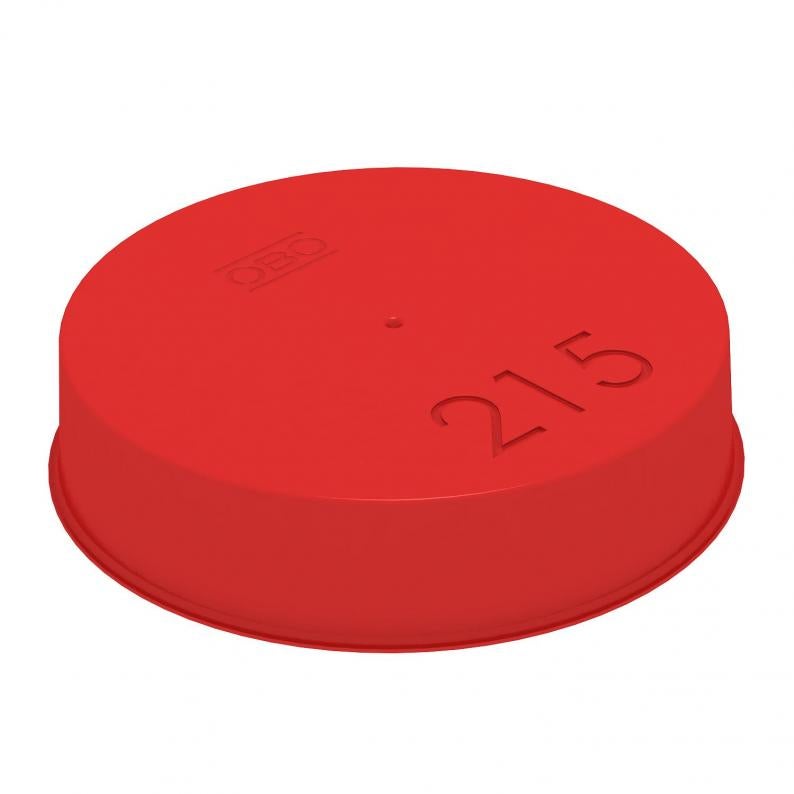

Height extension kit for underfloor box UDSR4
Trench Part No. SKE R215
|OBO Item No. 7404388
|EAN 4012195759614
Trench Part No.
SKE R215
OBO Item No.
7404388
Diameter
215 mm
Smallest selling unit: 1 piece
1piece
piece
Description
Height extension kit for screed protection cover of underfloor box UDS or a screed protection cover for installation opening of nominal size R4. Height extension of + 40 mm.
Technical data

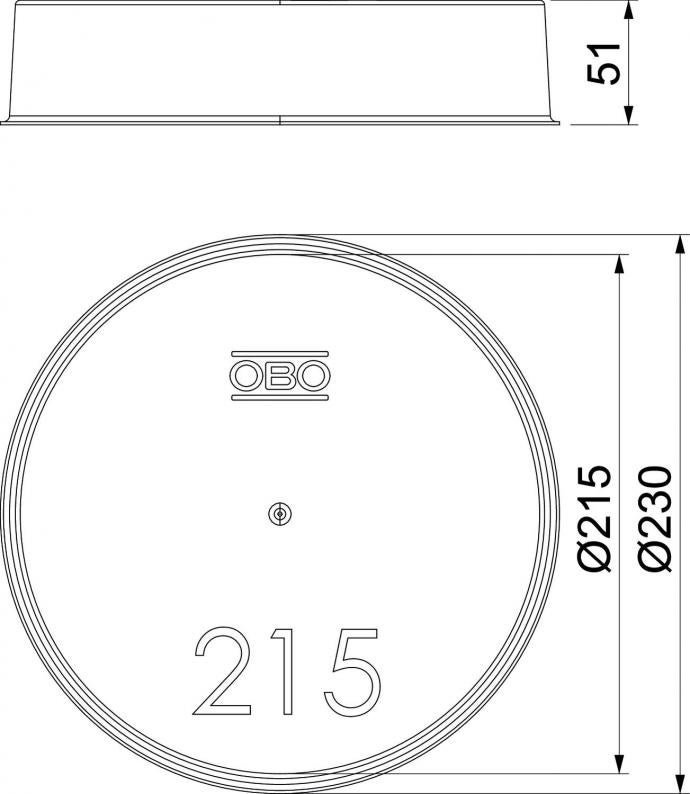

Dimensions
| Height | 50 mm |
|---|---|
| Dimension d Ø | 215 mm |
Technical data
| Diameter | 215 mm |
|---|---|
| Nominal size for device installation units | R4 |
| Dimension | Ø230 H=50 |
| Material | Polystyrene |
| Colour | traffic red; RAL 3020 |
Environmental Data
0,5695 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 0,5695 kg CO2e / 1 Piece |
|---|
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (1)
Declarations (2)
Product images (2)
Tender specifications (1)
