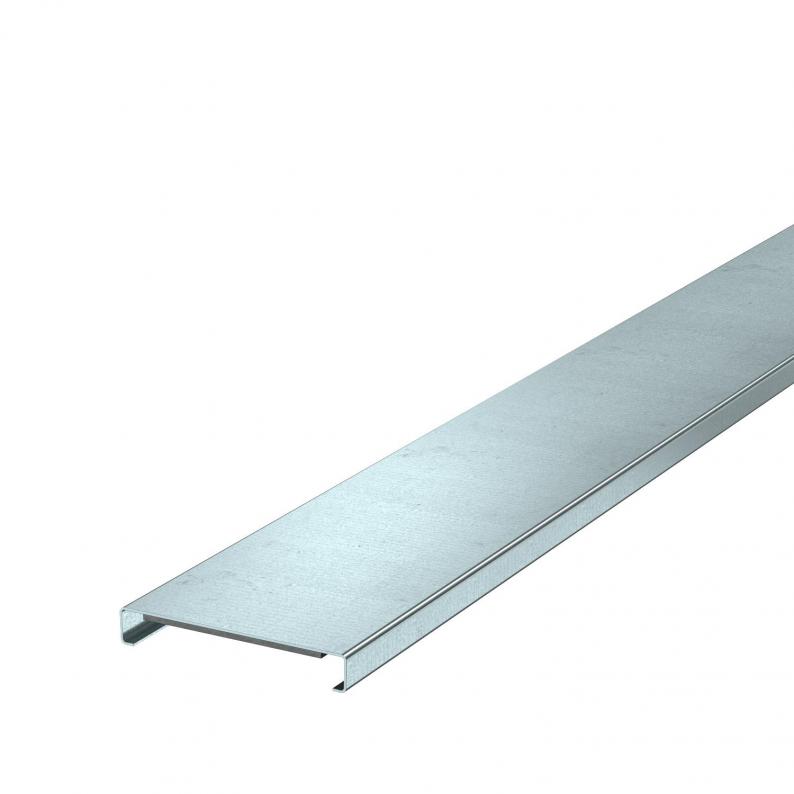

Installation duct cover, duct width 100 mm, FS
Trench Part No. PLM LI 100 FS
|OBO Item No. 7218020
|EAN 4012197351243
Trench Part No.
PLM LI 100 FS
OBO Item No.
7218020
Smallest selling unit: 2 m
2m
m
Description
Cover with factory-made beading for toolless mounting and continuous equipotential bonding. Additional locking brackets can be used for shortened covers. Take the details from the mounting instructions into account.
Technical data

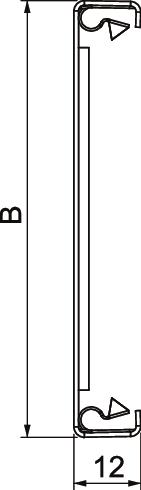

Dimensions
| Length | 2.000 mm |
|---|---|
| Dimension B | 76 mm |
Technical data
| Type of accessory | Miscellaneous |
|---|---|
| ROHS-conformant | yes |
| Classification EI − installation duct | 90 |
| Dimension | 12x77x2000 |
| Surface | Strip galvanised |
| Material | Steel |
| Colour | zinc |
| Accessories | yes |
| Spare part | no |
| Product series | PYROLINE® rapid PLM |
Environmental Data
1,6103 kg CO2e / 1 MeterCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 1,6103 kg CO2e / 1 Meter |
|---|---|
| CO₂ Footprint (GWP) | 16103 kg CO₂e |
| Determination date of CO2 value | 2025-05-14T00:00:00.000+0200 |
| Declared Unit | Metres |
| Declared Unit Quantity | 1 |
