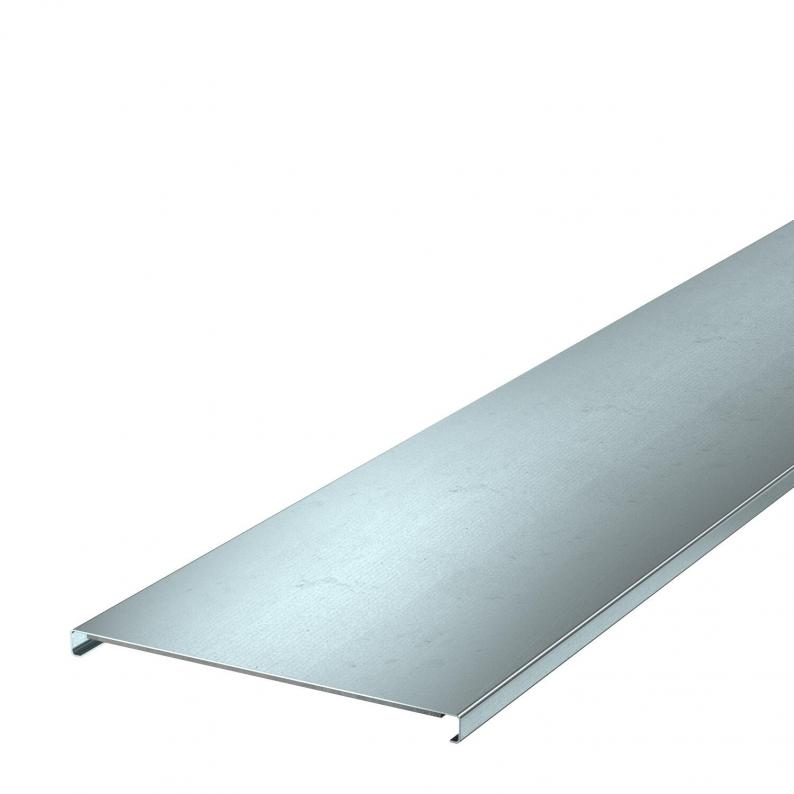

Installation duct cover, duct width 200 mm, FS
Trench Part No. PLM LI 200 FS
|OBO Item No. 7218024
|EAN 4012197351267
Trench Part No.
PLM LI 200 FS
OBO Item No.
7218024
Smallest selling unit: 2 m
2m
m
Description
Cover with factory-made beading for toolless mounting and continuous equipotential bonding. Additional locking brackets can be used for shortened covers. Take the details from the mounting instructions into account.
Technical data

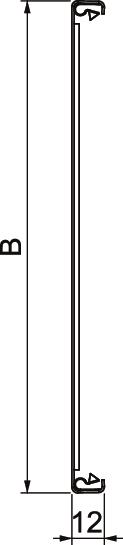

Dimensions
| Length | 2.000 mm |
|---|---|
| Dimension B | 176 mm |
Technical data
| Type of accessory | Miscellaneous |
|---|---|
| Classification EI − installation duct | 90 |
| Dimension | 12x177x2000 |
| Surface | Strip galvanized |
| Material | Steel |
| Colour | zinc |
| Accessories | yes |
| Spare part | no |
Environmental Data
3,1566 kg CO2e / 1 MeterCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 3,1566 kg CO2e / 1 Meter |
|---|
