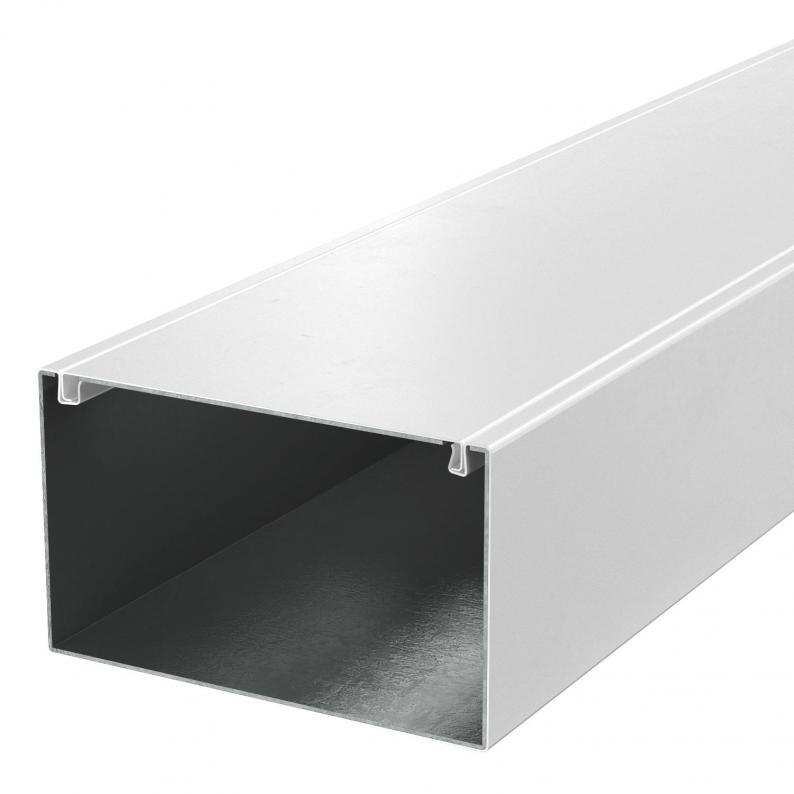

Installation duct with PYROLINE® Rapid PLM fire protection mesh, duct height 120 mm, pure white
Trench Part No. PLM D 1220 RW
|OBO Item No. 7218014
|EAN 4012197351311
Trench Part No.
PLM D 1220 RW
OBO Item No.
7218014
Length
2.000 mm

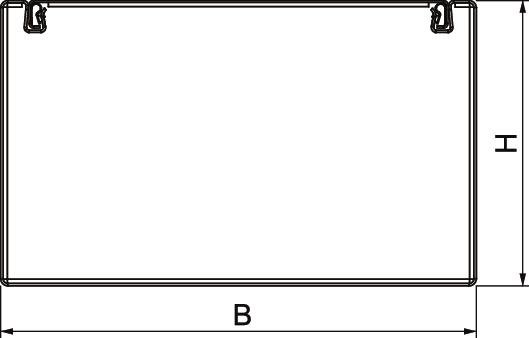

Dimension B
200 mm
Dimension H
120 mm
Colour
Pure white; RAL 9010
Smallest selling unit: 2 m
2m
m
Description
Metal installation duct with intumescent fire protection mesh for fireproof routing of cables. Classified as an installation duct EI30, EI60 and EI90 according to EN 13501-2, tested according to EN 1366-5. The duct prevents the fire spread for the classified period of time, offering protection against the effects of a cable fire.
Suitable for direct wall and ceiling mounting, mounting below system floors and on support systems. Tool-free joint mounting with PLM SI joint connector. Only approved pre-terminated fittings may be used. The cover is snapped on without tools, allowing rapid inspection and retroassignment. Offset cover mounting for continuous equipotential bonding of the entire duct section.
Suitable for direct wall and ceiling mounting, mounting below system floors and on support systems. Tool-free joint mounting with PLM SI joint connector. Only approved pre-terminated fittings may be used. The cover is snapped on without tools, allowing rapid inspection and retroassignment. Offset cover mounting for continuous equipotential bonding of the entire duct section.
Technical data
Dimensions
| Length | 2.000 mm |
|---|---|
| Width | 200 mm |
| Height | 120 mm |
| Dimension B | 200 mm |
| Dimension H | 120 mm |
| Internal height | 114 mm |
| Internal width | 194 mm |
Technical data
| Usable cross-section | 18500 mm² |
|---|---|
| With perforation | yes |
| Partitions possible | yes |
| Jacketing | Steel |
| Number of flammable sides | 4 |
| Protection rating IK code | IK10 |
| Cover fastening | Miscellaneous |
| Dimension i | 162 mm |
| Classification EI − installation duct | 90 |
| Dimension | 120x200x2000 |
| Surface | Powder-coated |
| Material | Steel |
| Colour | Pure white; RAL 9010 |
Environmental Data
3,2626 kg CO2e / 1 MeterCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 3,2626 kg CO2e / 1 Meter |
|---|
