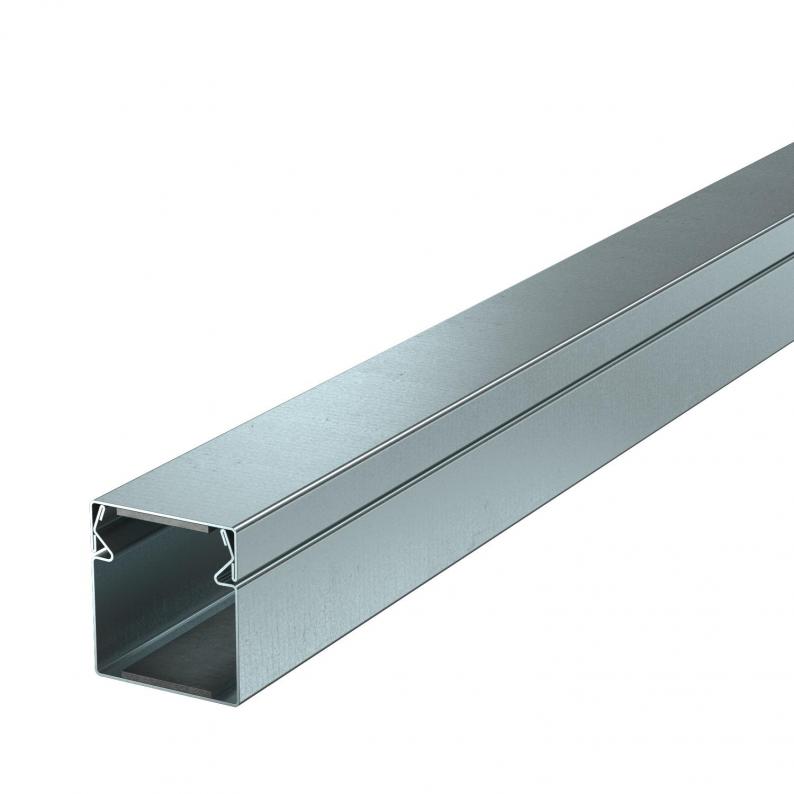

Installation duct with PYROLINE® Rapid PLM fire protection mesh, duct height 44 mm, FS

Installation duct with PYROLINE® Rapid PLM fire protection mesh, duct height 44 mm, FS

Trench Part No. PLM D 0404 FS
|
OBO Item No. 7218000
|
EAN 4012197351205
Show all variants
Trench Part No.
PLM D 0404 FS
OBO Item No.
7218000
Length
2.000 mm

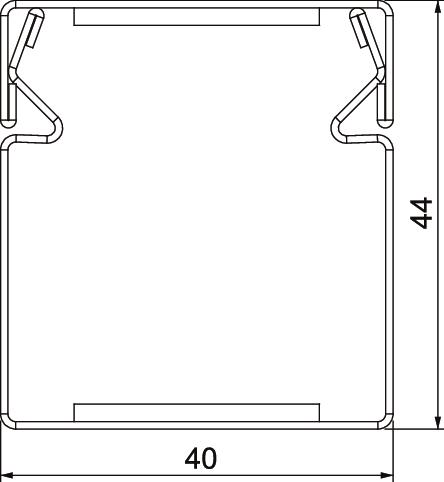

Dimension B
40 mm
Dimension H
44 mm
Colour
zinc

Smallest selling unit: 2 m

m

Description

Metal installation duct with intumescent fire protection mesh for fireproof routing of cables. Classified as an installation duct EI30, EI60 and EI90 according to EN 13501-2, tested according to EN 1366-5. The duct prevents the fire spread for the classified period of time, offering protection against the effects of a cable fire.

Suitable for direct wall and ceiling mounting, mounting below system floors and on support systems. Tool-free joint mounting with PLM SI joint connector. The cover is snapped on without tools, allowing rapid inspection and retroassignment. Offset cover mounting for continuous equipotential bonding of the entire duct section.

Technical data

Dimensions

Length2.000 mm
Width40 mm
Height44 mm
Dimension B40 mm
Dimension H44 mm
Internal height38 mm
Internal width38 mm

Technical data

Usable cross-section1280 mm²
With perforationyes
Partitions possibleno
JacketingSteel
Number of flammable sides4
Protection rating IK codeIK10
Cover fasteningMiscellaneous
Classification EI − installation duct90
Dimension40x40x2000
SurfaceStrip galvanized
MaterialSteel
Colourzinc

Environmental Data

2,6254 kg CO2e / 1 MeterCO2 Footprint (GWP) Cradle-to-Gate
CO2 Footprint (GWP) Cradle-to-Gate2,6254 kg CO2e / 1 Meter
