Installation duct with PYROLINE® Rapid PLM fire protection mesh, duct height 44 mm, pure white
Trench Part No. PLM D 0404 RW
|OBO Item No. 7218002
|EAN 4012197351281
Trench Part No.
PLM D 0404 RW
OBO Item No.
7218002
Length
2.000 mm
Dimension B
40 mm
Dimension H
44 mm
Colour
Pure white; RAL 9010
Smallest selling unit: 2 m
2m
m
Description
Metal installation duct with intumescent fire protection mesh for fireproof routing of cables. Classified as an installation duct EI30, EI60 and EI90 according to EN 13501-2, tested according to EN 1366-5. The duct prevents the fire spread for the classified period of time, offering protection against the effects of a cable fire.
Suitable for direct wall and ceiling mounting, mounting below system floors and on support systems. Tool-free joint mounting with PLM SI joint connector. The cover is snapped on without tools, allowing rapid inspection and retroassignment. Offset cover mounting for continuous equipotential bonding of the entire duct section.
Suitable for direct wall and ceiling mounting, mounting below system floors and on support systems. Tool-free joint mounting with PLM SI joint connector. The cover is snapped on without tools, allowing rapid inspection and retroassignment. Offset cover mounting for continuous equipotential bonding of the entire duct section.
Technical data

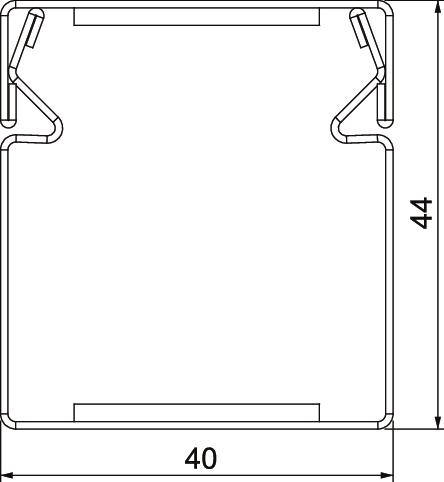

Dimensions
| Length | 2.000 mm |
|---|---|
| Width | 40 mm |
| Height | 44 mm |
| Dimension B | 40 mm |
| Dimension H | 44 mm |
| Internal height | 38 mm |
| Internal width | 38 mm |
Technical data
| Usable cross-section | 1280 mm² |
|---|---|
| With perforation | yes |
| Partitions possible | no |
| Jacketing | Steel |
| Number of flammable sides | 4 |
| Protection rating IK code | IK10 |
| Cover fastening | Miscellaneous |
| ROHS-conformant | yes |
| Classification EI − installation duct | 90 |
| Dimension | 40x44x2000 |
| Surface | Powder-coated |
| Material | Steel |
| Colour | Pure white; RAL 9010 |
| Product series | PYROLINE® rapid PLM |
Environmental Data
2,6555 kg CO2e / 1 MeterCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 2,6555 kg CO2e / 1 Meter |
|---|---|
| CO₂ Footprint (GWP) | 26555 kg CO₂e |
| Determination date of CO2 value | 2025-05-14T00:00:00.000+0200 |
| Declared Unit | Metres |
| Declared Unit Quantity | 1 |
