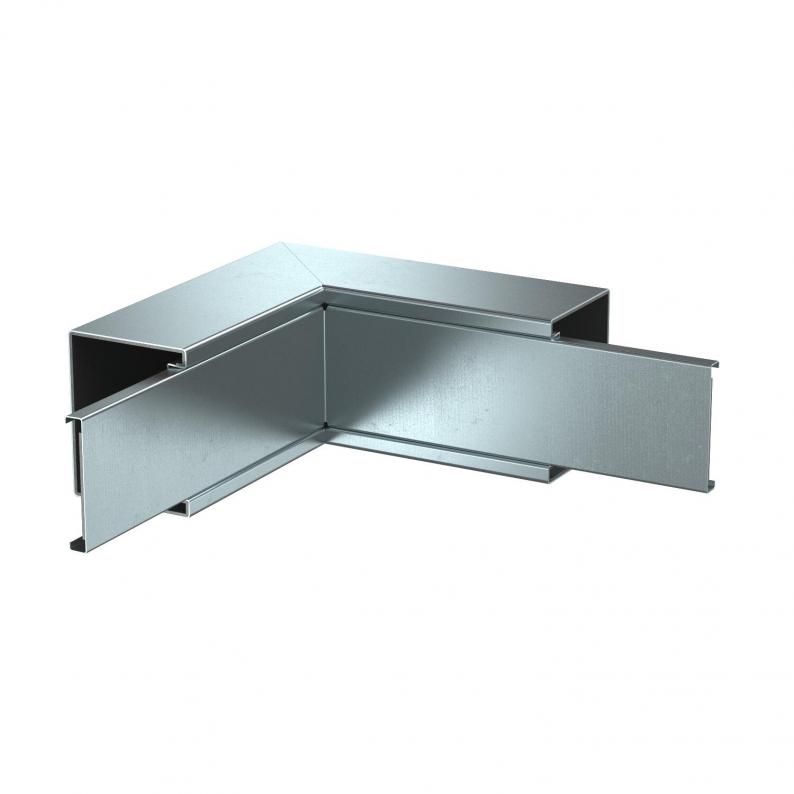

Internal corner, duct height 80 mm, FS
Trench Part No. PLM IC 0810 FS
|OBO Item No. 7218054
|EAN 4012197332099
Trench Part No.
PLM IC 0810 FS
OBO Item No.
7218054
Dimension A
230 mm
Dimension B
100 mm
Dimension H
80 mm
Colour
zinc
Smallest selling unit: 1 piece
1piece
piece
Description
Internal corner with intumescent fire protection mesh for PYROLINE® Rapid PLM installation duct. Suitable for direct wall and ceiling mounting, mounting below system floors and on support systems. Tool-free joint mounting with PLM SI joint connector. The cover is snapped on without tools, allowing rapid inspection and retroassignment. The cover overhang allows offset cover mounting for continuous equipotential bonding of the entire duct section.
Technical data
Technical data
| Usable cross-section | 5180 mm² |
|---|---|
| Angle of the bend | 90 ° |
| With perforation | yes |
| Partitions possible | no |
| Jacketing | Steel |
| Number of flammable sides | 4 |
| Cover fastening | Miscellaneous |
| Dimension | 330x100x330 |
| Surface | Strip galvanized |
| Material | Steel |
| Colour | zinc |

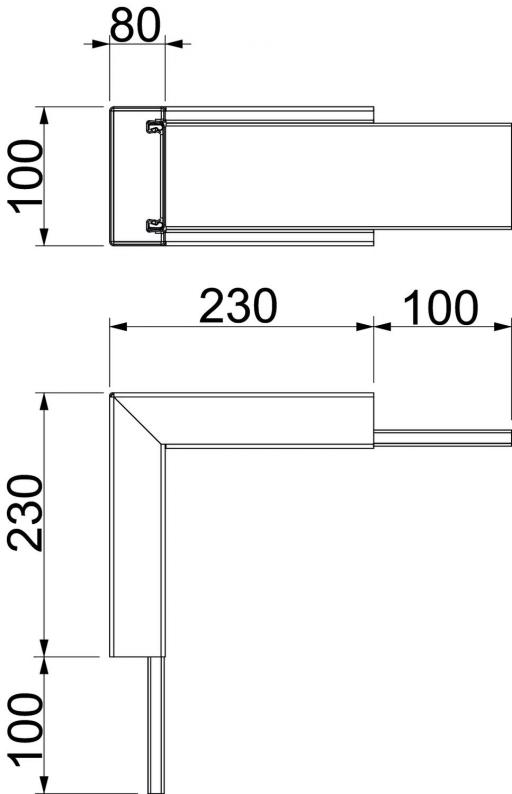

Dimensions
| Dimension A | 230 mm |
|---|---|
| Dimension B | 100 mm |
| Dimension H | 80 mm |
Environmental Data
5,4099 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 5,4099 kg CO2e / 1 Piece |
|---|
