Joint connector, duct height 44 mm
Trench Part No. PLM SI 0404
|OBO Item No. 7218027
|EAN 4012197304966
Trench Part No.
PLM SI 0404
OBO Item No.
7218027
Smallest selling unit: 5 piece
5piece
piece
Description

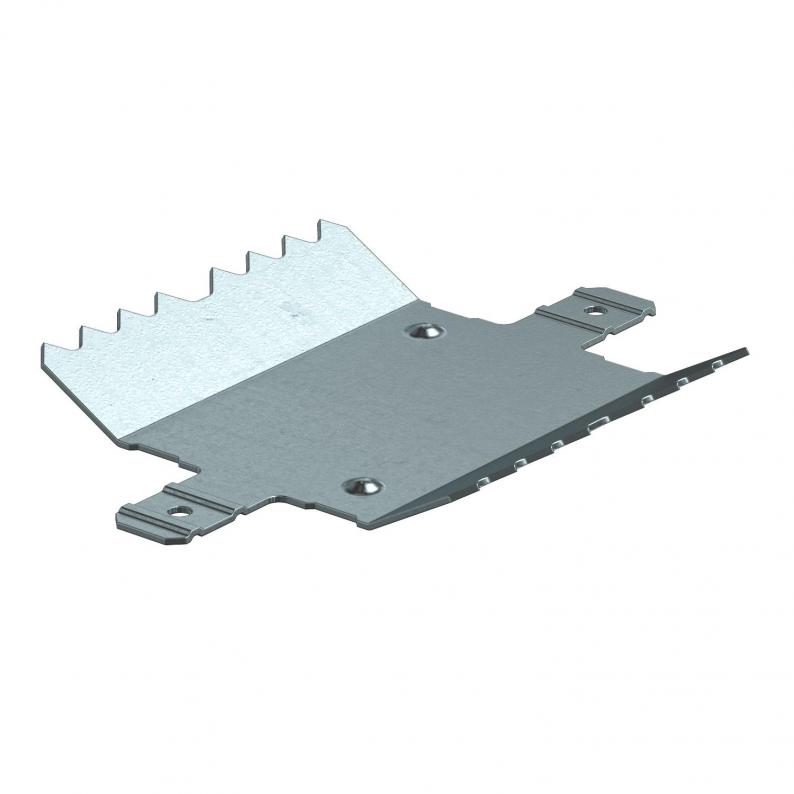

Joint connector for toolless mounting of the PYROLINE® Rapid PLM installation duct. To create a fire-resistant joint connector, the foam seal for a 40 mm duct height must be used in addition.
Technical data
Technical data
| Type of accessory | Miscellaneous |
|---|---|
| ROHS-conformant | yes |

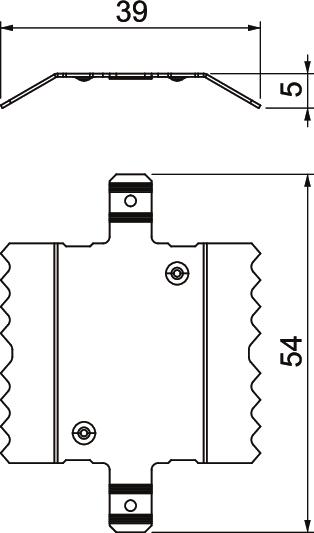

| Dimension | 54x39x5 |
| Surface | Bright |
| Material | Stainless steel 1.4310 |
| Colour | stainless steel |
| Accessories | yes |
| Spare part | no |
| Product series | PYROLINE® rapid PLM |
Environmental Data
0,1092 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 0,1092 kg CO2e / 1 Piece |
|---|---|
| CO₂ Footprint (GWP) | 01092 kg CO₂e |
| Determination date of CO2 value | 2025-05-14T00:00:00.000+0200 |
| Declared Unit (LCA) | Units |
| Declared Unit Quantity (LCA) | 1 |
