Joint connector set, duct height 40 mm
Trench Part No. PLM SIC 0410 FS
|OBO Item No. 7218029
|EAN 4012197450915
Trench Part No.
PLM SIC 0410 FS
OBO Item No.
7218029
Colour
zinc
Smallest selling unit: 1 piece
1piece
piece
Description
Joint connector set, consisting of a connector for the duct base and cover support. With integrated seal for toolless connection of the PYROLINE® Rapid PLM installation duct and fittings. Allows continuous connection of the protective conductors.
Technical data

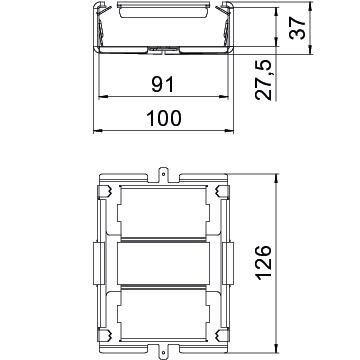

Dimensions
| Length | 126 mm |
|---|---|
| Width | 100 mm |
| Height | 37 mm |
| Dimension L | 126 mm |
| Dimension H | 37 mm |
| Internal height | 275 mm |
| Internal width | 91 mm |
| Dimension W | 100 mm |
Technical data
| Jacketing | Without |
|---|---|
| Suitable for outdoor use | no |
| Classification EI − installation duct | 90 |
| Dimension | 118x94x38 |
| Surface | Strip galvanized |
| Material | Steel |
| Colour | zinc |
| Fire protection class to EN 13501-2 | EI90 |
