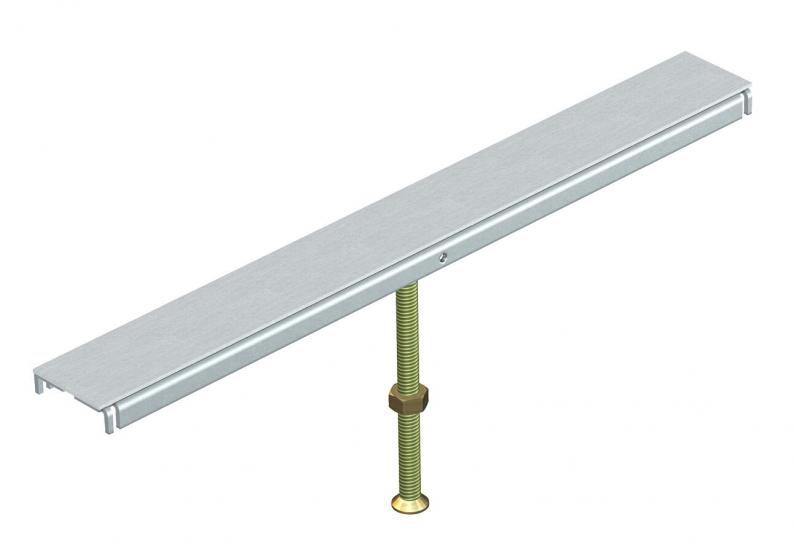

Lid butt support for trunking width 400, 500 and 600 mm
Trench Part No. DSU2 600 6050
|OBO Item No. 7424964
|EAN 4012195245292
Trench Part No.
OBO Item No.
Width
Dimension A
Smallest selling unit: 1 piece
1piece
piece
Description
For underlaying and sealing joints of nominal trunking widths of 400, 500 or 600. With central, height-adjustable support.
Technical data

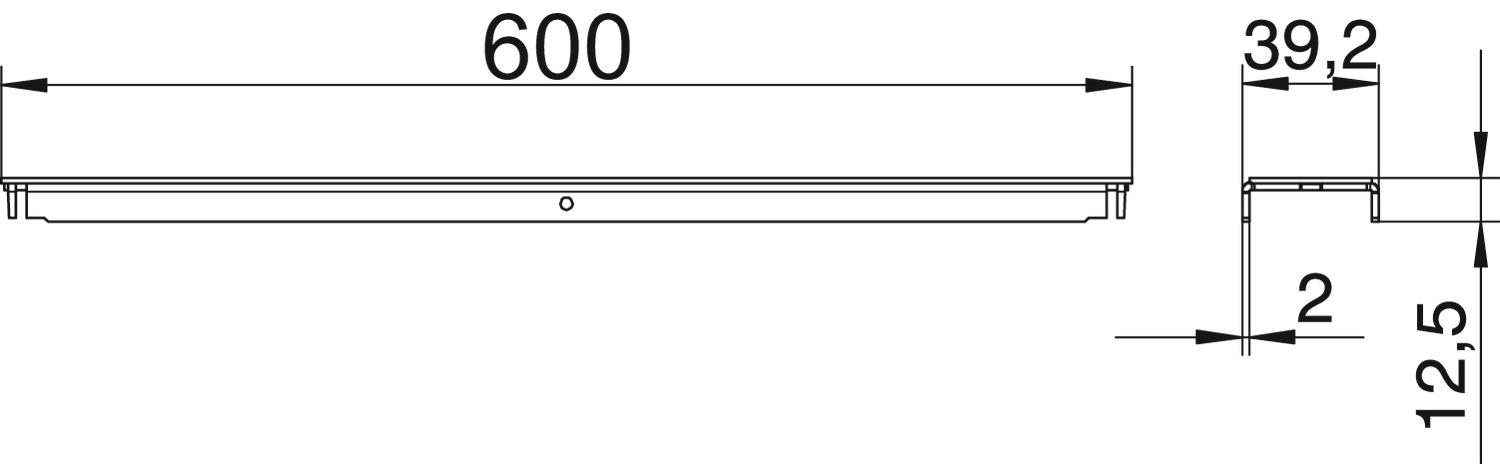

Dimensions
| Width | 600 mm |
|---|---|
| Dimension A | 600 mm |
Technical data
| Height-adjustment range, min. | 0 mm |
|---|---|
| Minimum screed height | 60 |
| Centre support | yes |
| Trunking height, max. | 110 mm |
| Duct height, min. | 60 mm |
| Surface | Strip galvanized |
| Material | Steel |
| Accessories | yes |
| Spare part | no |
Environmental Data
1,5601 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 1,5601 kg CO2e / 1 Piece |
|---|
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (2)
Certificates (1)
Instructions and Aid (1)
Product images (2)
3D data downloads (2)
Tender specifications (1)
Variants
Trench Part No.
Width
Dimension A
OBO Item No.
DSU2 400 6050
400
400
7424960
DSU2 500 6050
500
500
7424962
DSU2 600 6050
600
600
7424964
Width
Dimension A
DSU2 400 6050
OBO Item No.
7424960
Width
400
Dimension A
400
DSU2 500 6050
OBO Item No.
7424962
Width
500
Dimension A
500
DSU2 600 6050
OBO Item No.
7424964
Width
600
Dimension A
600
