Mesh cable tray GR-Magic® 105 G
Trench Part No. GRM 105 100 G | OBO Item No. 6002402 | EAN 4012196020270
Trench Part No.
OBO Item No.
Length
Width
Height
Usable cross-section
Wire diameter
Maintain electrical functions
no
Smallest selling unit: 3 m
3m
Description

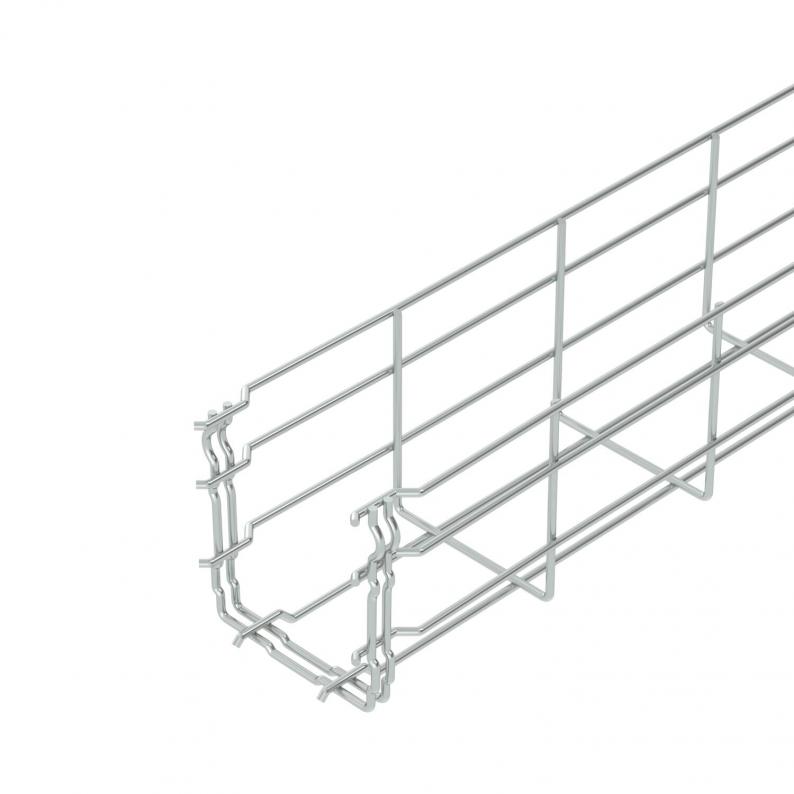

Mesh cable tray with shaped connector of side height 105 mm.
Magnetic shield insulation without cover 15 dB, with cover 25 dB.
Magnetic shield insulation without cover 15 dB, with cover 25 dB.
No additional connection components are required for the mesh cable tray, it is simply interlocked. The grid width is 50 x 100 mm.
Technical data

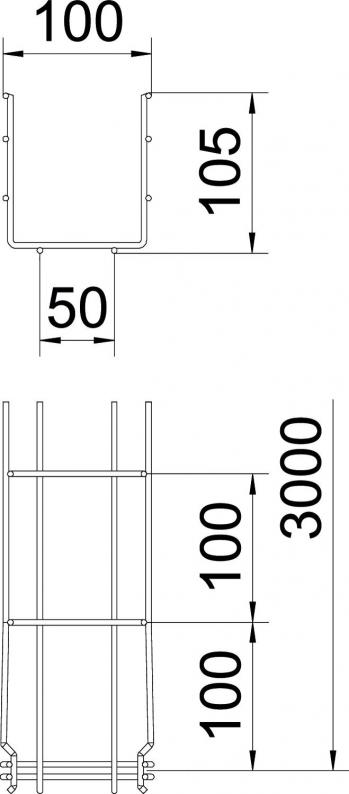

Dimensions
| Length | 3.000 mm |
|---|---|
| Width | 100 mm |
| Height | 105 mm |
| Dimension B | 100 mm |
| Dimension H | 108 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Connector version | Integrated connector |
| Wide-span version | no |
| Usable cross-section | 82 cm² |
| Rustproof steel, pickled | no |
| Usable cross-section | 8200 mm² |
| Integrated partition | Without |
| Screwless connector | yes |
| Profile shape | U-shaped |
| Wire diameter | 39 mm |
| Dimension | 105x100x3000 |
| Surface | Electrogalvanized |
| Material | Steel |
| Colour | zinc |
| Load test type according to IEC 61537 | Type II |
| Type of connector, cable support system | Click fastening |
| CO2 Footprint (GWP) Cradle-to-Gate | 1,8532 kg CO2e / 1 Meter |
Loads
| Support spacing 2.0 m | 037 kN/m |
|---|---|
| Support spacing 2.5 m | 027 kN/m |
| Support spacing 1.0 m | 08 kN/m |
| Support spacing 3.0 m | 025 kN/m |
| Support spacing 1.5 m | 055 kN/m |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (6)
Declarations (5)
Certificates (3)
Instructions and Aid (3)
Product images (2)
3D data downloads (1)
Tender specifications (2)
Variants
Trench Part No.
Length
Width
Height
Maintain electrical functions
Usable cross-section
Wire diameter
OBO Item No.
GRM 105 100 G
3.000
100
105
no
82
39
6002402
GRM 105 150 G
3.000
150
105
no
130
39
6002404
GRM 105 200 G
3.000
200
105
no
175
48
6002406
GRM 105 300 G
3.000
300
105
no
268
48
6002408
GRM 105 400 G
3.000
400
105
no
363
48
6002410
GRM 105 500 G
3.000
500
105
no
459
48
6002415
GRM 105 600 G
3.000
600
105
no
554
48
6002417
Width
Usable cross-section
Wire diameter
GRM 105 100 G
OBO Item No.
6002402
Length
3.000
Width
100
Height
105
Maintain electrical functions
no
Usable cross-section
82
Wire diameter
39
GRM 105 150 G
OBO Item No.
6002404
Length
3.000
Width
150
Height
105
Maintain electrical functions
no
Usable cross-section
130
Wire diameter
39
GRM 105 200 G
OBO Item No.
6002406
Length
3.000
Width
200
Height
105
Maintain electrical functions
no
Usable cross-section
175
Wire diameter
48
GRM 105 300 G
OBO Item No.
6002408
Length
3.000
Width
300
Height
105
Maintain electrical functions
no
Usable cross-section
268
Wire diameter
48
GRM 105 400 G
OBO Item No.
6002410
Length
3.000
Width
400
Height
105
Maintain electrical functions
no
Usable cross-section
363
Wire diameter
48
GRM 105 500 G
OBO Item No.
6002415
Length
3.000
Width
500
Height
105
Maintain electrical functions
no
Usable cross-section
459
Wire diameter
48
GRM 105 600 G
OBO Item No.
6002417
Length
3.000
Width
600
Height
105
Maintain electrical functions
no
Usable cross-section
554
Wire diameter
48
