Mesh cable tray GR-Magic® 55 A2
Trench Part No. GRM 55 150 A2
|OBO Item No. 6001074
|EAN 4012196101351



Trench Part No.
OBO Item No.
Length
Width
Height
Usable cross-section
Wire diameter
Maintain electrical functions
yes
Smallest selling unit: 3 m
3m
m
Description

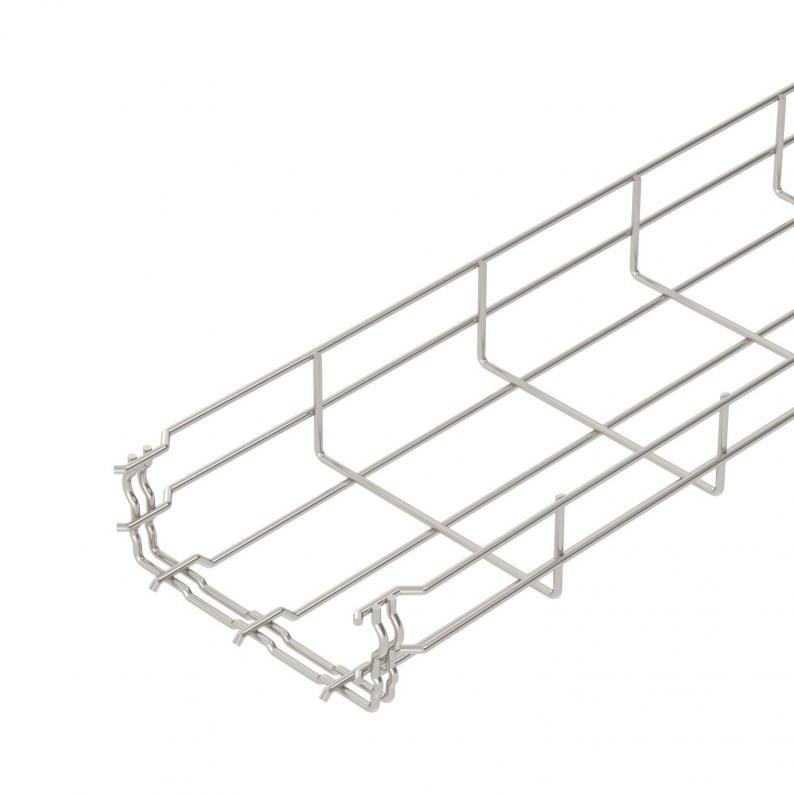

Mesh cable tray with shaped connector of side height 55 mm.
Magnetic shield insulation without cover 15 dB, with cover 25 dB.
Magnetic shield insulation without cover 15 dB, with cover 25 dB.
No additional connection components are required for the mesh cable tray, it is simply interlocked. The grid width is 50 x 100 mm (exception: GRM 55/50 = 20 x 100 mm).
Technical data
Dimensions

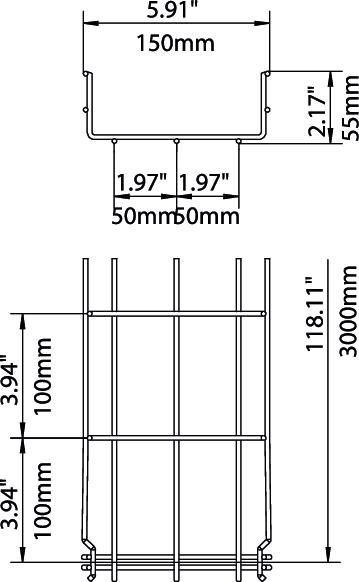

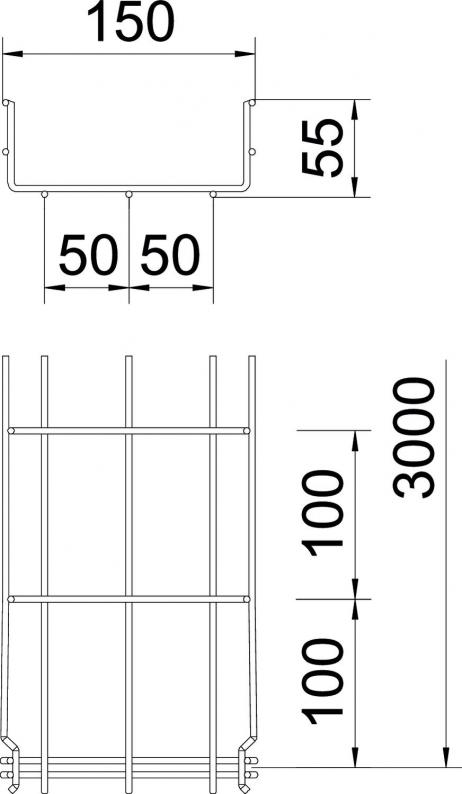

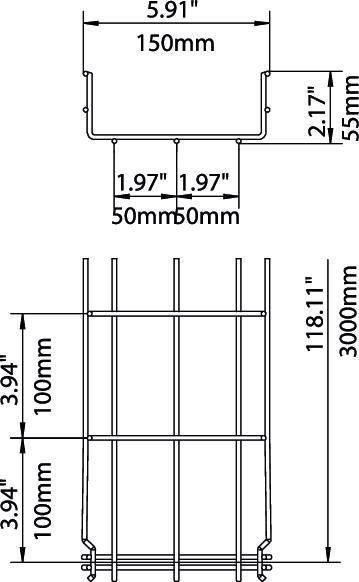

| Length | 3.000 mm |
|---|---|
| Width | 150 mm |
| Height | 55 mm |
| Dimension B | 150 mm |
| Dimension H | 58 mm |
Technical data
| Maintain electrical functions | yes |
|---|---|
| Connector version | Integrated connector |
| Usable cross-section | 63 cm² |
| Rustproof steel, pickled | yes |
| Usable cross-section | 6300 mm² |
| Integrated partition | Without |
| Screwless connector | yes |
| Profile shape | U-shaped |
| Wire diameter | 39 mm |
| Dimension | 55x150x3000 |
| Surface | Bright, treated |
| Material | Stainless steel 1.4301 |
| Colour | stainless steel |
| Fire protection | Maintenance of electrical function of cable-specific support structure |
| Load test type according to IEC 61537 | Type II |
| Type of connector, cable support system | Click fastening |
| CO2 Footprint (GWP) Cradle-to-Gate | 4,3117 kg CO2e / 1 Meter |
Loads
| Support spacing 2.0 m | 01 kN/m |
|---|---|
| Support spacing 2.5 m | 01 kN/m |
| Support spacing 1.0 m | 035 kN/m |
| Support spacing 1.5 m | 02 kN/m |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (10)
Declarations (5)
Certificates (4)
Instructions and Aid (3)
Product images (2)
3D data downloads (2)
Tender specifications (1)
Variants
Trench Part No.
Length
Width
Height
Maintain electrical functions
Usable cross-section
Wire diameter
OBO Item No.
