Mesh cable tray GR-Magic® 55 FT
Trench Part No. GRM 55 100 FT
|OBO Item No. 6001416
|EAN 4012196814879
Trench Part No.
OBO Item No.
Length
Width
Height
Usable cross-section
Wire diameter
Maintain electrical functions
yes
Smallest selling unit: 3 m
3m
m
Description
Mesh cable tray with shaped connector of side height 55 mm.
Magnetic shield insulation without cover 15 dB, with cover 25 dB.
You can find detailed information regarding the UL classification in the respective certification.
Magnetic shield insulation without cover 15 dB, with cover 25 dB.
You can find detailed information regarding the UL classification in the respective certification.
No additional connection components are required for the mesh cable tray, it is simply interlocked. The grid width is 50 x 100 mm (exception: GRM 55/50 = 20 x 100 mm).
Technical data

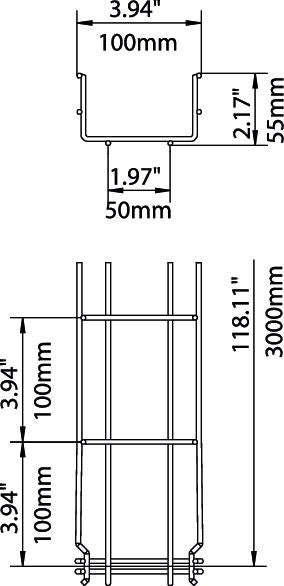

Dimensions
| Length | 3.000 mm |
|---|---|
| Width | 100 mm |
| Height | 55 mm |
| Dimension B | 100 mm |
| Dimension H | 58 mm |
Technical data
| Maintain electrical functions | yes |
|---|---|
| Connector version | Integrated connector |
| Wide-span version | no |
| Usable cross-section | 40 cm² |
| Rustproof steel, pickled | no |
| Usable cross-section | 4000 mm² |
| Integrated partition | Without |
| Screwless connector | yes |
| Profile shape | U-shaped |
| Wire diameter | 39 mm |
| Dimension | 55x100x3000 |
| Surface | Hot-dip galvanised |
| Material | Steel |
| Colour | zinc |
| Fire protection | Maintenance of electrical function of cable-specific support structure |
| Load test type according to IEC 61537 | Type II |
| Type of connector, cable support system | Click fastening |
| CO2 Footprint (GWP) Cradle-to-Gate | 1,594 kg CO2e / 1 Meter |
Loads
| Support spacing 2.0 m | 01 kN/m |
|---|---|
| Support spacing 2.5 m | 01 kN/m |
| Support spacing 1.0 m | 035 kN/m |
| Support spacing 1.5 m | 02 kN/m |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (8)
Declarations (5)
Certificates (6)
Instructions and Aid (4)
Product images (2)
3D data downloads (2)
Tender specifications (2)
Variants
Trench Part No.
Length
Width
Height
Maintain electrical functions
Usable cross-section
Wire diameter
OBO Item No.
GRM 55 50 FT
3.000
50
55
yes
16
39
6001415
GRM 55 100 FT
3.000
100
55
yes
40
39
6001416
GRM 55 150 FT
3.000
150
55
yes
63
39
6001418
GRM 55 200 FT
3.000
200
55
yes
87
39
6001420
GRM 55 300 FT
3.000
300
55
yes
129
48
6001424
Width
Usable cross-section
Wire diameter
GRM 55 50 FT
OBO Item No.
6001415
Length
3.000
Width
50
Height
55
Maintain electrical functions
yes
Usable cross-section
16
Wire diameter
39
GRM 55 100 FT
OBO Item No.
6001416
Length
3.000
Width
100
Height
55
Maintain electrical functions
yes
Usable cross-section
40
Wire diameter
39
GRM 55 150 FT
OBO Item No.
6001418
Length
3.000
Width
150
Height
55
Maintain electrical functions
yes
Usable cross-section
63
Wire diameter
39
GRM 55 200 FT
OBO Item No.
6001420
Length
3.000
Width
200
Height
55
Maintain electrical functions
yes
Usable cross-section
87
Wire diameter
39
GRM 55 300 FT
OBO Item No.
6001424
Length
3.000
Width
300
Height
55
Maintain electrical functions
yes
Usable cross-section
129
Wire diameter
48
