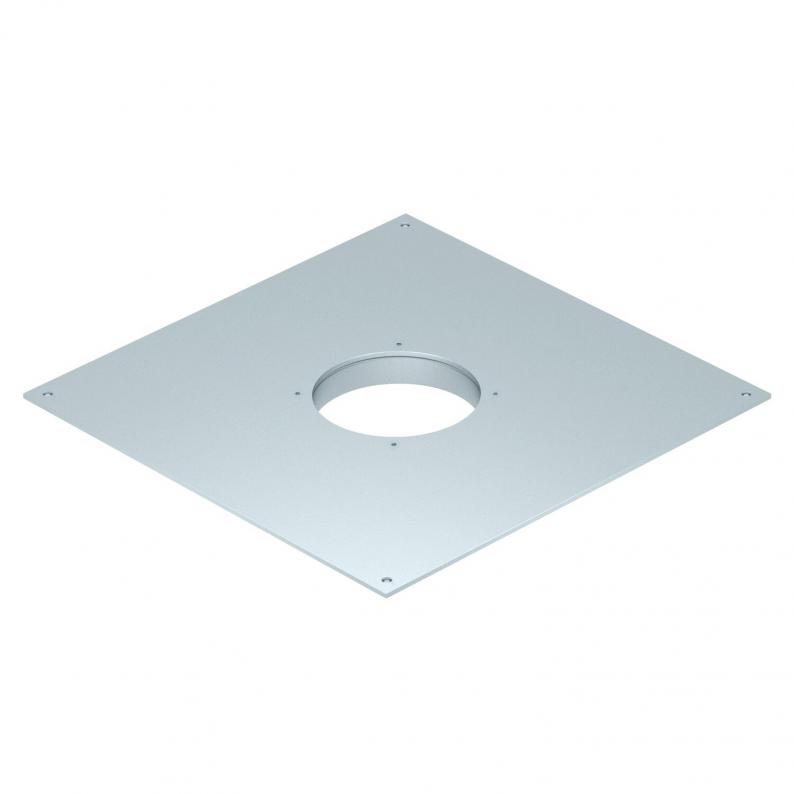

Mounting cover 350, nominal size GES R2
Trench Part No. DUG 350-3 R2
|OBO Item No. 7400503
|EAN 4012197372439
Trench Part No.
DUG 350-3 R2
OBO Item No.
7400503
Mounting opening
Round
Smallest selling unit: 1 piece
1piece
piece
Description
Blanking lid for underfloor junction and branch box of type UZD350-3/4 for the installation of a GES R2 installation unit.
Technical data
Dimensions
| Length | 382 mm |
|---|---|
| Width | 382 mm |
| Dimension A | 282 mm |
| Dimension d Ø | 120 mm |
Technical data
| Material thickness | 4 mm |
|---|---|
| Suitable for screed-covered underfloor ducts | yes |
| Suitable for screed-flush closed underfloor ducts | no |
| Trunking width, max. | 250 mm |
| Trunking width, min. | 190 mm |
| Installation opening for on-floor tank | no |
| Seal installation option | no |
| Floor care | Dry |
| Heavy-duty version | no |
| Nominal size | 350 mm |
| Mounting opening | Round |
| Dimension | 383x383x28 |
| Surface | Strip galvanized |
| Material | Steel |
Environmental Data
16,4077 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 16,4077 kg CO2e / 1 Piece |
|---|
